INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 32 of 60

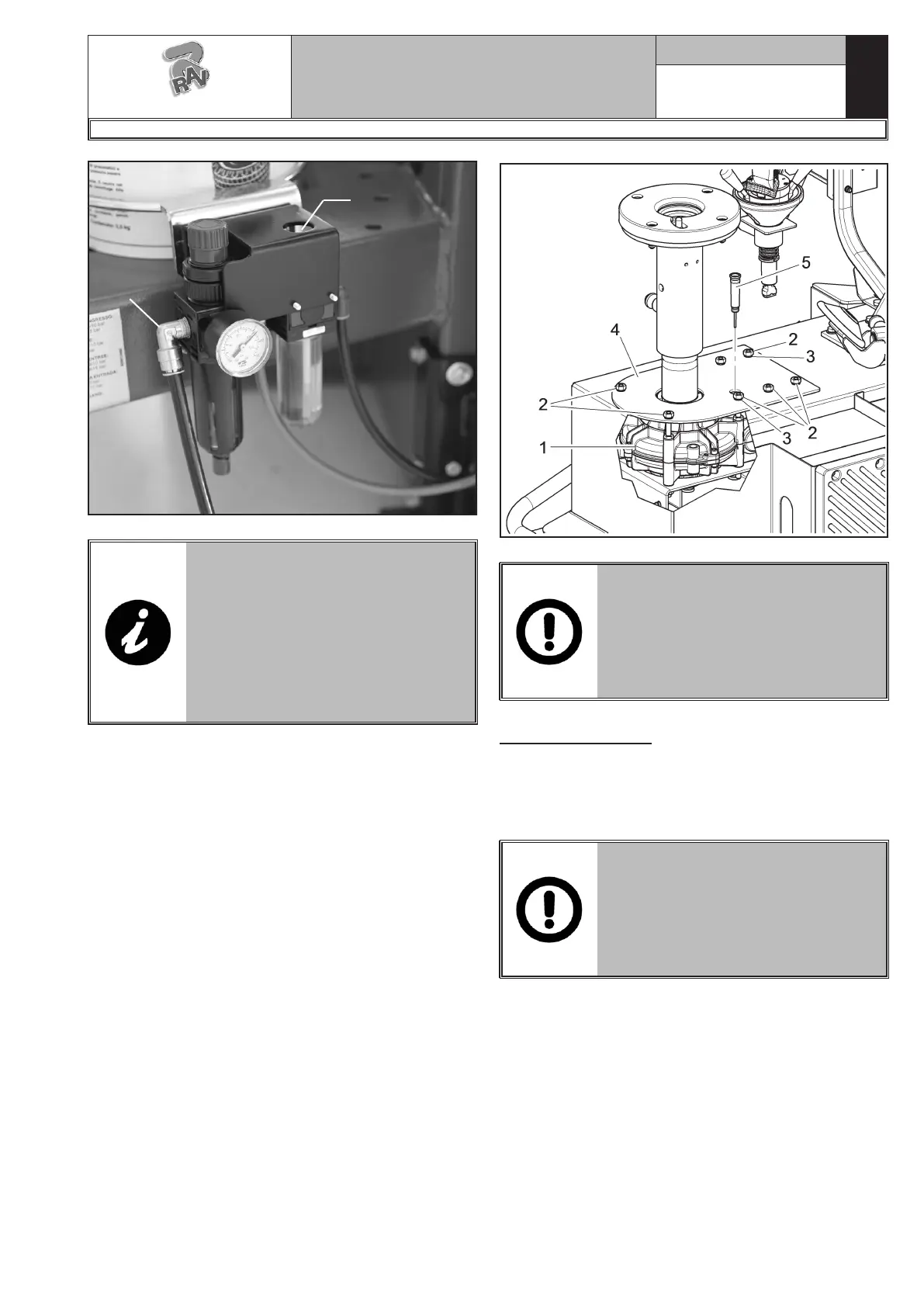

Fig. 55
Pressure
regulator
Air supply
Press to drain condensation
Oiler
IN ORDER TO ALLOW A LONGER
LIFE OF THE FILTER AND OF ALL
MOVING PNEUMATIC DEVICES,
YOU HAVE TO MAKE SURE THAT
THE SUPPLIED AIR IS:
EXEMPT FROM THE LUBRICAT-
ING OIL OF THE COMPRESSOR;
• EXEMPT FROM HUMIDITY;
• EXEMPT FROM IMPURITY.
Every week and/or when necessary, top up the oil
tank using the filler hole provided, closed by a cap
or screw, on the lubricator filter.
N.B: This operation should not be carried out by
unscrewing the cup of the lubricator filter.
• The use of synthetic oil might damage the pressure
regulator filter.
Immediately replace worn parts, bead breaking roller,
assembly tool.
At regular intervals, (at least every 100 working
hours) check reduction gear (Fig. 56 ref. 1) lubri-
cating oil level. Such operation must be effectuated
unscrewing the nuts (Fig. 56 ref. 2) and the wash-
ers (Fig. 56 ref. 3), removing the flange (Fig. 56
ref. 4) and the plug (Fig. 56 ref. 5) on the reduc-
tion gear.
Fig. 56
ANY DAMAGE TO THE MACHINE
DEVICES RESULTING FROM THE
USE OF LUBRICANTS OTHER
THAN THOSE RECOMMENDED
IN THIS MANUAL WILL RELEASE
THE MANUFACTURER FROM ANY
LIABILITY!!
13.1 Lubricants
Special lubricant for mandrel movement control gear-
box. Use ESSO GEAR OIL GX140.
Lubricate slides, screws/nut screws or racks and
pinion with a soft brush using lubricant of ESSO GP.
ANY DAMAGE TO THE MACHINE
DEVICES RESULTING FROM THE
USE OF LUBRICANTS OTHER
THAN THOSE RECOMMENDED
IN THIS MANUAL WILL RELEASE
THE MANUFACTURER FROM ANY
LIABILITY.
