INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 25 of 60
WHILE THIS OPERATION IS BEING
CARRIED OUT PAY ATTENTION
NOT TO DEFORM THE TYRE SIDE.
GREASE THE BEAD BEFORE THE
ROLL RE-ENTERS.

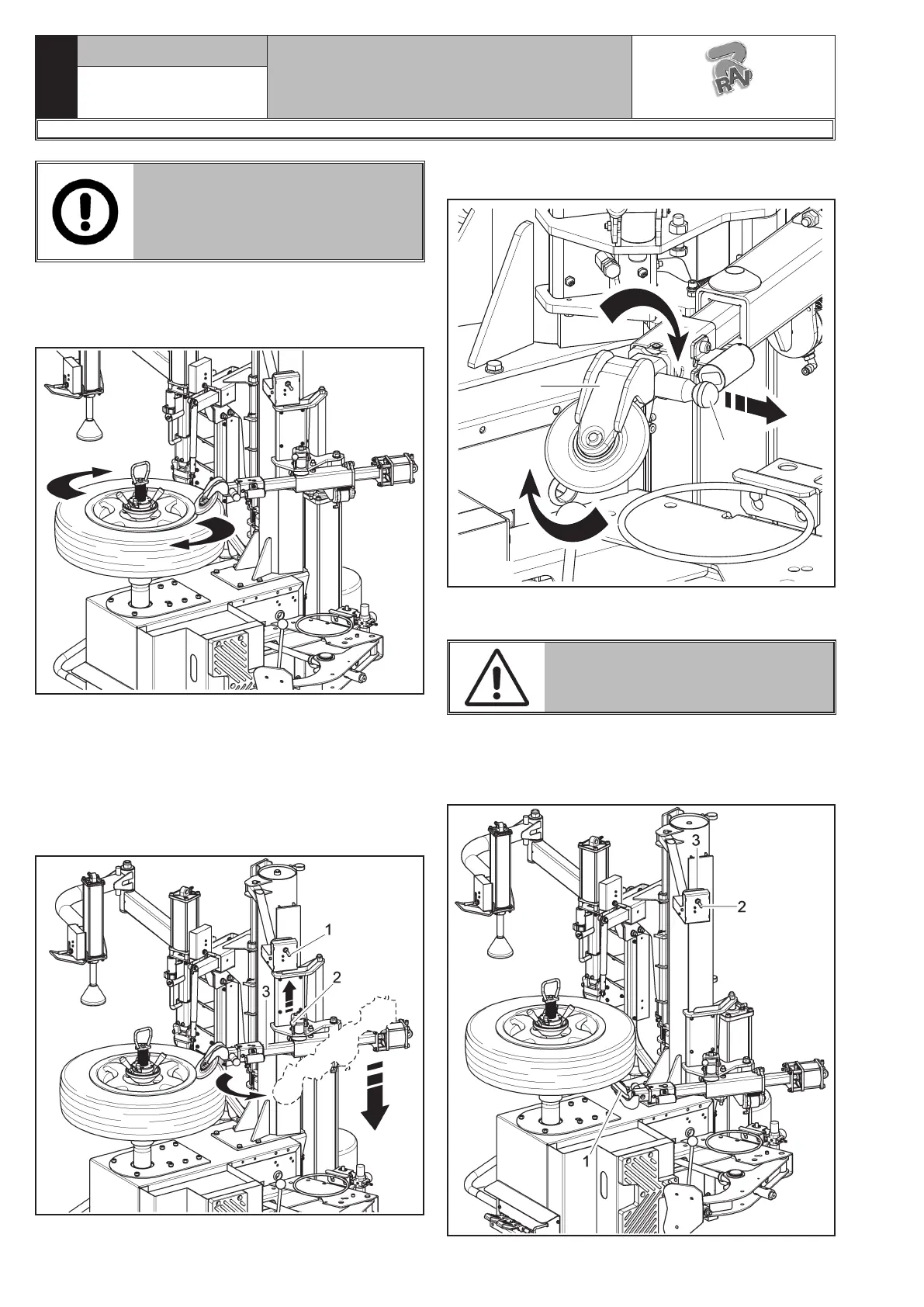

3. Activate the clockwise rotation by pressing the pedal
(Fig. 19 ref. 3).
Keep on rotating the wheel until the operation is
completed (see Fig. 35).
Fig. 35
4. Once bead breaking has been completed in the up-
per part, disengage the roll from the rim moving
the lever (Fig. 36 ref. 1) upwards. Press the lever
(Fig. 36 ref. 2) to allow the bead breaker arm roll
(Fig. 36 ref. 3) to open outwards and get out of
the wheel way. Use again the lever (Fig. 36 ref. 1)
to bring the bead breaker arm roll downwards to
a lower height then the one of the tyre.
Fig. 36
5. Pull the knob (Fig. 37 ref. 1) and turn of 180° the
bead breaking roll (Fig. 37 ref. 2).
1
2
Fig. 37Fig. 37
6. Close manually the bead breaker arm roll in work
position and make sure that it is locked.
ALWAYS CHECK THAT THE ARM
IS CORRECTLY HOOKED.
Lift the lever (Fig. 38 ref. 2) to bring the bead
breaker roll only just above the rim lower edge. Pull
the rear lever (Fig. 38 ref. 3) until the bead break-
ing roll (Fig. 38 ref. 1) is introduced into the rim.
Fig. 38
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
