INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 27 of 60

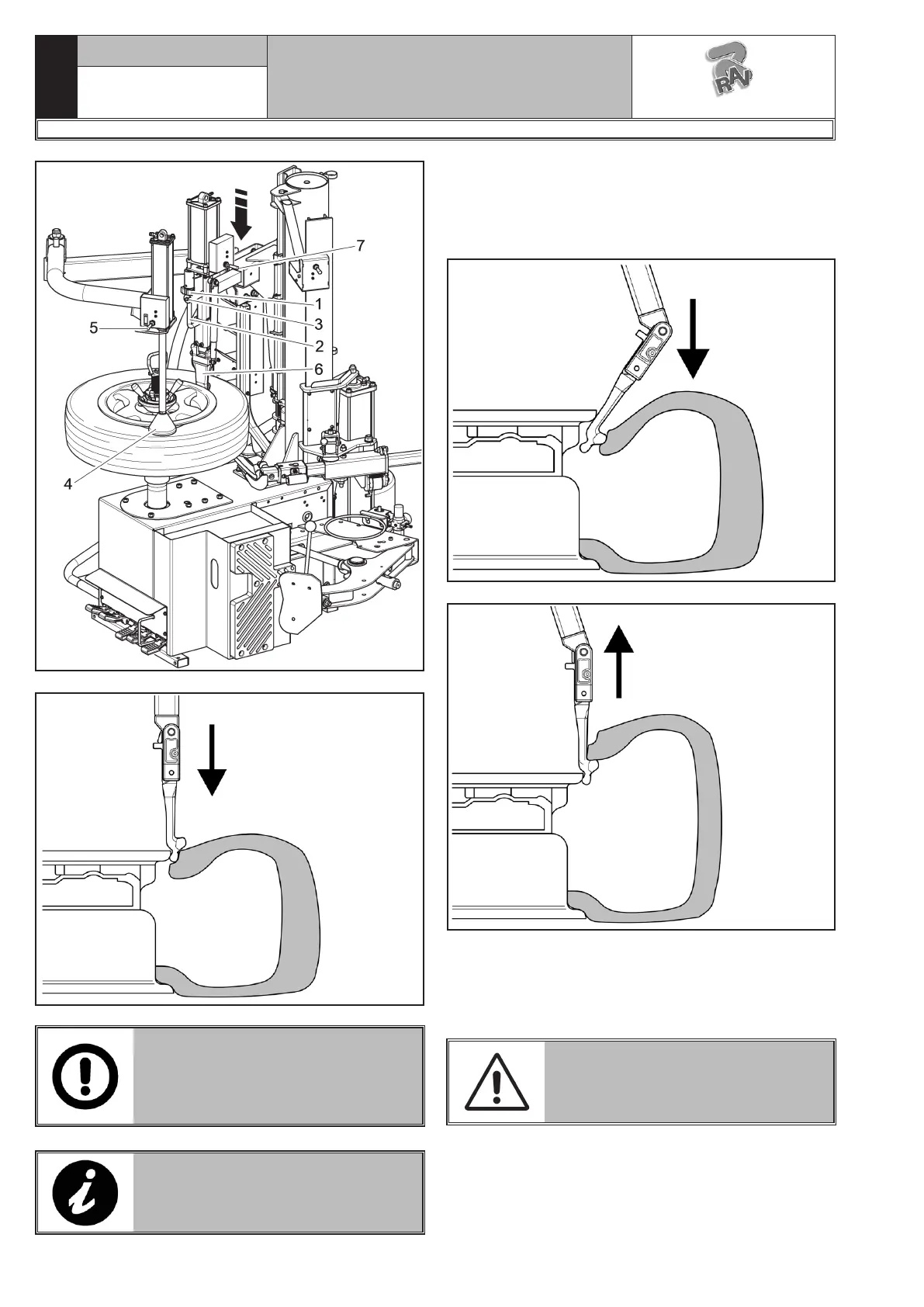

5. Lower the lever (Fig. 40 ref. 6) so that the tool pen-
etrates between the rim and the tyre (see Fig. 42).
While this operation is being effectuated, the tool
rotates around the rim edge until it hooks the tyre
bead (see Fig. 43).
Fig. 42
Fig. 43
5. Lift the tool using the lever (Fig. 40 ref. 6). When
the tool reaches a vertical position related to the
rim (Fig. 44 ref. 1), rotate the mandrel so that
the tyre enters the rim channel. Keep on raising the
tool until the bead is on the rim edge (see Fig. 43).
MAKE SURE THE TOOL IS IN DE-
MOUNTING POSITION (Fig. 43)
BEFORE STARTING MANDREL
ROTATION.
Rotate clockwise until the upper bead is completely
disassembled (see Fig. 44).
Fig. 40
Fig. 41
WHILE THIS OPERATION IS BEING
CARRIED OUT PAY ATTENTION
NOT TO DEFORM THE TYRE SIDE.
GREASE THE BEAD BEFORE THE
ROLL RE-ENTERS.
USE ONLY TYRE LUBRICANTS.
SUITABLE LUBRICANTS CONTAIN
NO WATER, HYDROCARBONS, OR
SILICON.
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
