Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 33/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
10.9 Vehicle Diagnosis

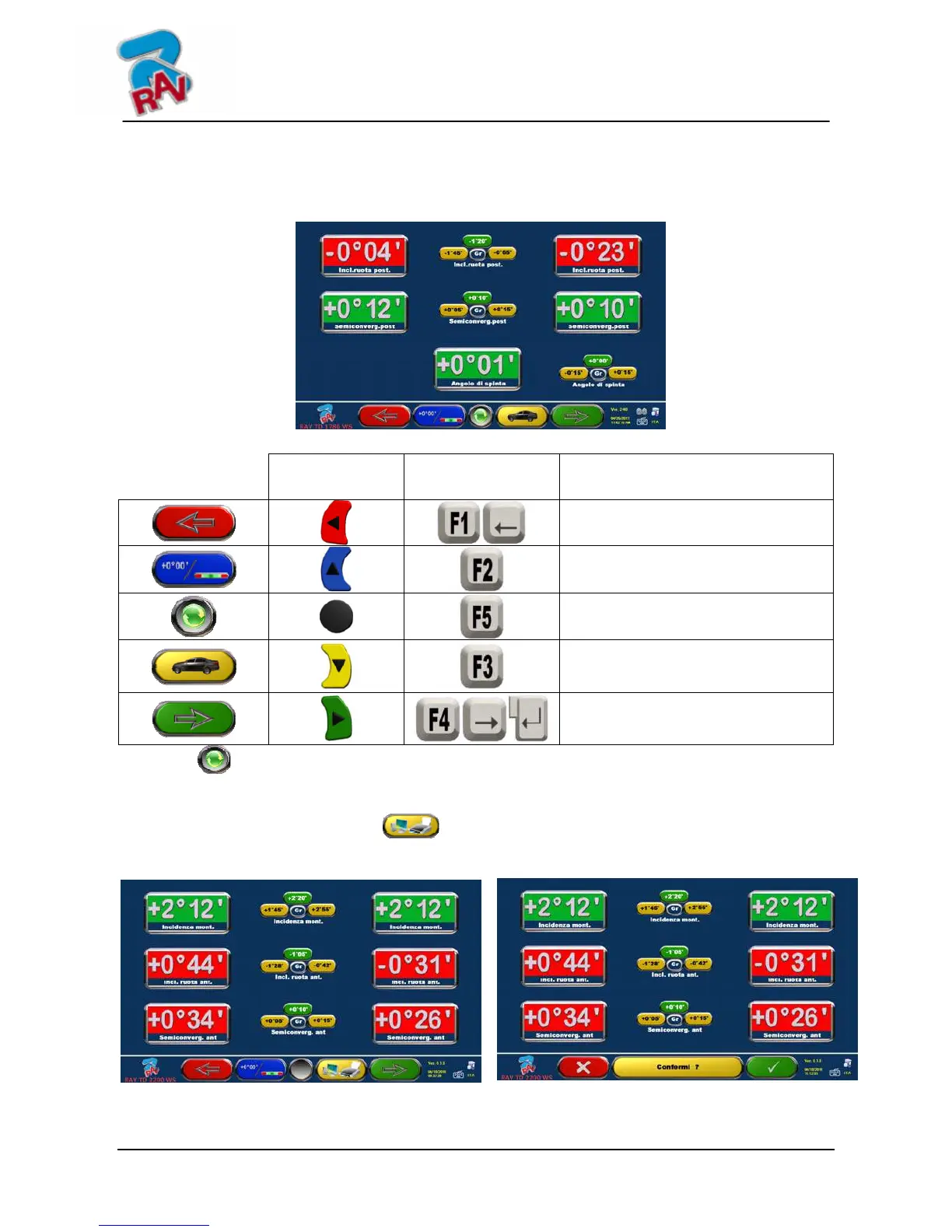

After carrying out the steering procedure (see par. 10.8 on page 32), a diagnosis page
showing a summary of the operations carried out on vehicle rear axle (Figure 33) will be
displayed.
Figure 33
DETECTOR
KEYPAD
PC KEYPAD DESCRIPTION
Repeat steering procedure.
(par. 10.8 on page 32)
It changes values displaying layout
Selection of diagnosis data display
in 1 / 2 pages.
It displays vehicle technical
specifications (it may be changed, if
needed).(par. 10.4 on page 27)
It displays diagnosis page with a
summary of front axle
measurements (Figure 34)
Press F5 to change diagnosis data display preferences, i.e. on 1 or 2 pages (rear and
front). The selection will be stored for the next diagnosis.
Press F4 to display the diagnosis page with a summary of front axle measurements (Figure
34). If you press F3 from here
, programme will allow the printout of diagnosis
measurements. Press F4 to continue with data adjustment, programme will display Figure
35, press F4 again to confirm.
Figure 34 Figure 35
The vehicle can now be prepared for adjustment (see par. 10.10 on page 34), by pressing F4
to confirm (Figure 35).
