Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
Page 44/52
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
11.3 New Vehicle Entry
To create customised vehicles and store them inside the database, you shall first of all
display the page of the measurements and tolerances supplied by the manufacturer of an
already-existing vehicle (see par. 10.4 on page 27).
Press “Ins” on the keyboard:

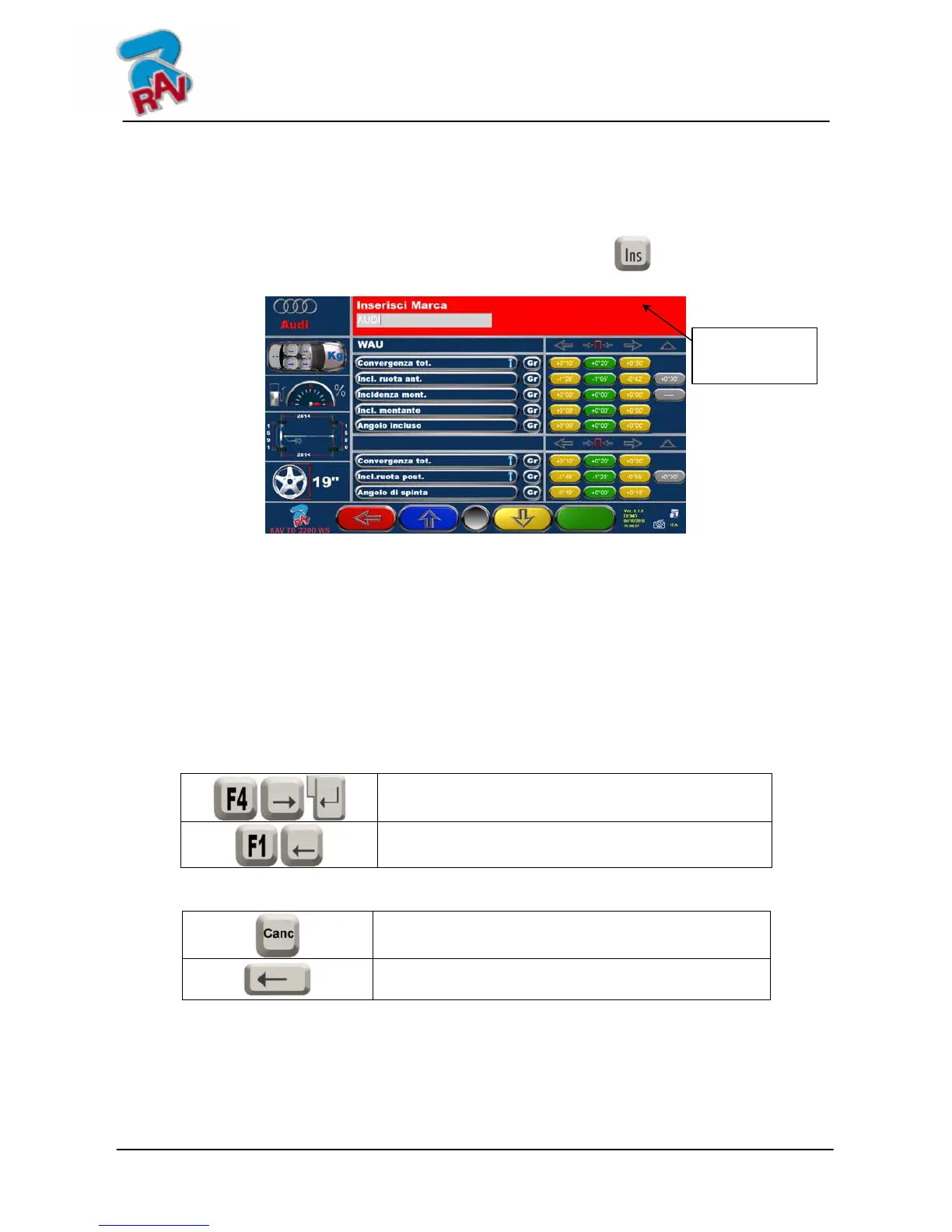

The following screen will be displayed:
Figure 50
As you can see in Figure 50 on the highlighted point, the make of the selected vehicle is
highlighted by a red background.
You can enter or confirm the name of the make of the vehicle you want to create.
Then, select and enter:
Vehicle model and submodel name Rear track
Manufacturing start date Left wheelbase
Manufacturing end date Right wheelbase
Rim diameter Load conditions
Front track Tank conditions
Use the following keys for data selection:
Move selection to the following datum.
Move selection to the previous datum.
After data entry, you can delete them using the following keys:
It deletes the whole selected element
It deletes the last character of the selected element
Once the manufacture end date has been entered and you move on the next datum, the
following screen relating to load conditions will be displayed
Highlighted
point
