Instruction manual
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Code M0215 - rev.1.1
(11/2012)RAVAGLIOLI S.p.A.
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
Page 45/52
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com

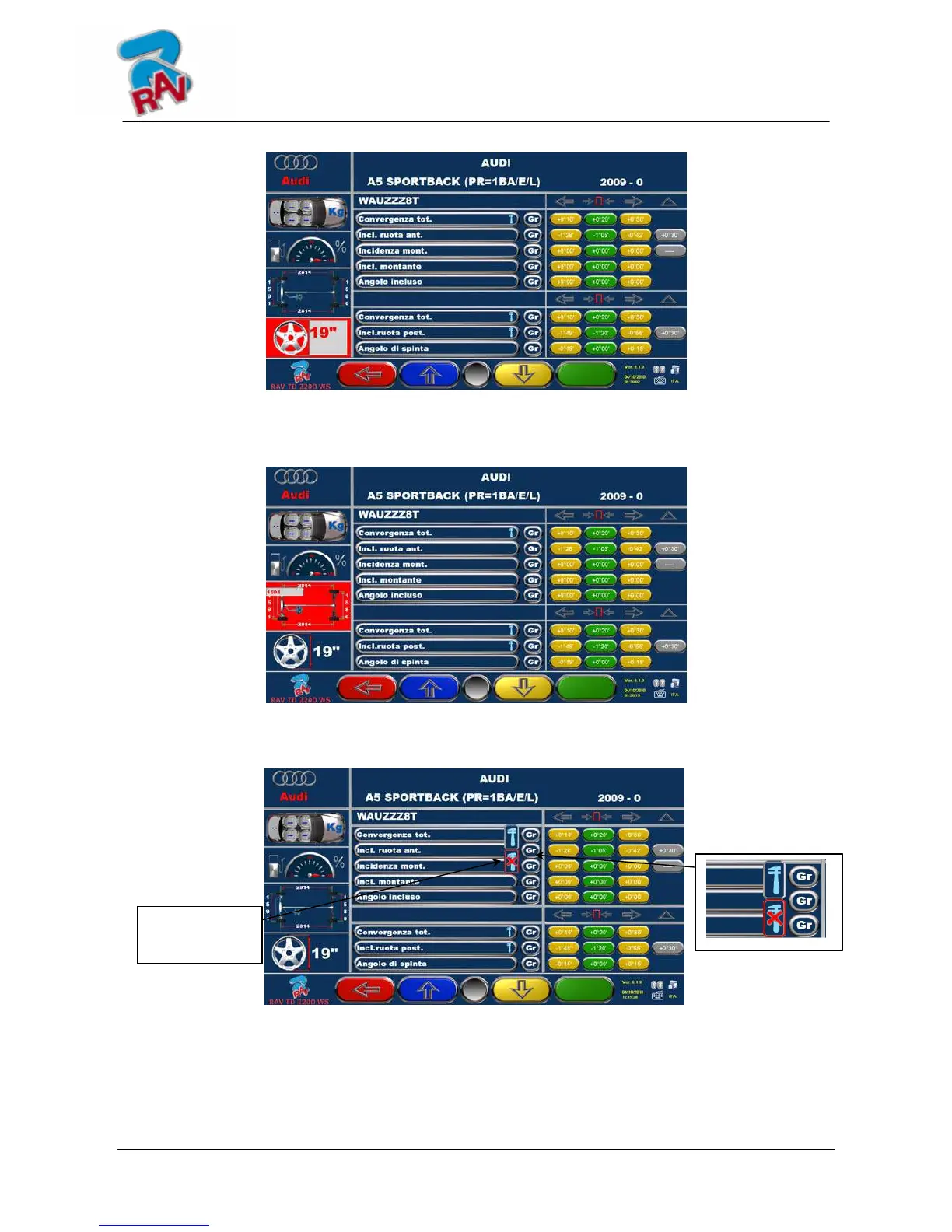

Figure 51
After having selected rim diameter, the following data to be entered are vehicle track and
wheelbase, in the following screen:
Figure 52
Then enter tank and load conditions
Now the screen will look as follows:
Figure 53
Highlighted
point
