The following offset values may be modified on the Antenna Position
screen:
• Fore/Aft - The fore/aft offset is the distance of the boom or implement in
front or behind the GPS antenna.
• Left/Right - The left/right offset is the distance from the GPS antenna to the
center line of the boom or implement.
• Height - Touch this area and use the on-screen keypad to enter the height
(in inches or centimeters) of the DGPS antenna above ground. This value is
only required if terrain compensation or a tilt correction device is used with
the Cruizer II console.
5. Touch Home to complete the Initial Setup Wizard and view the Home
Screen.

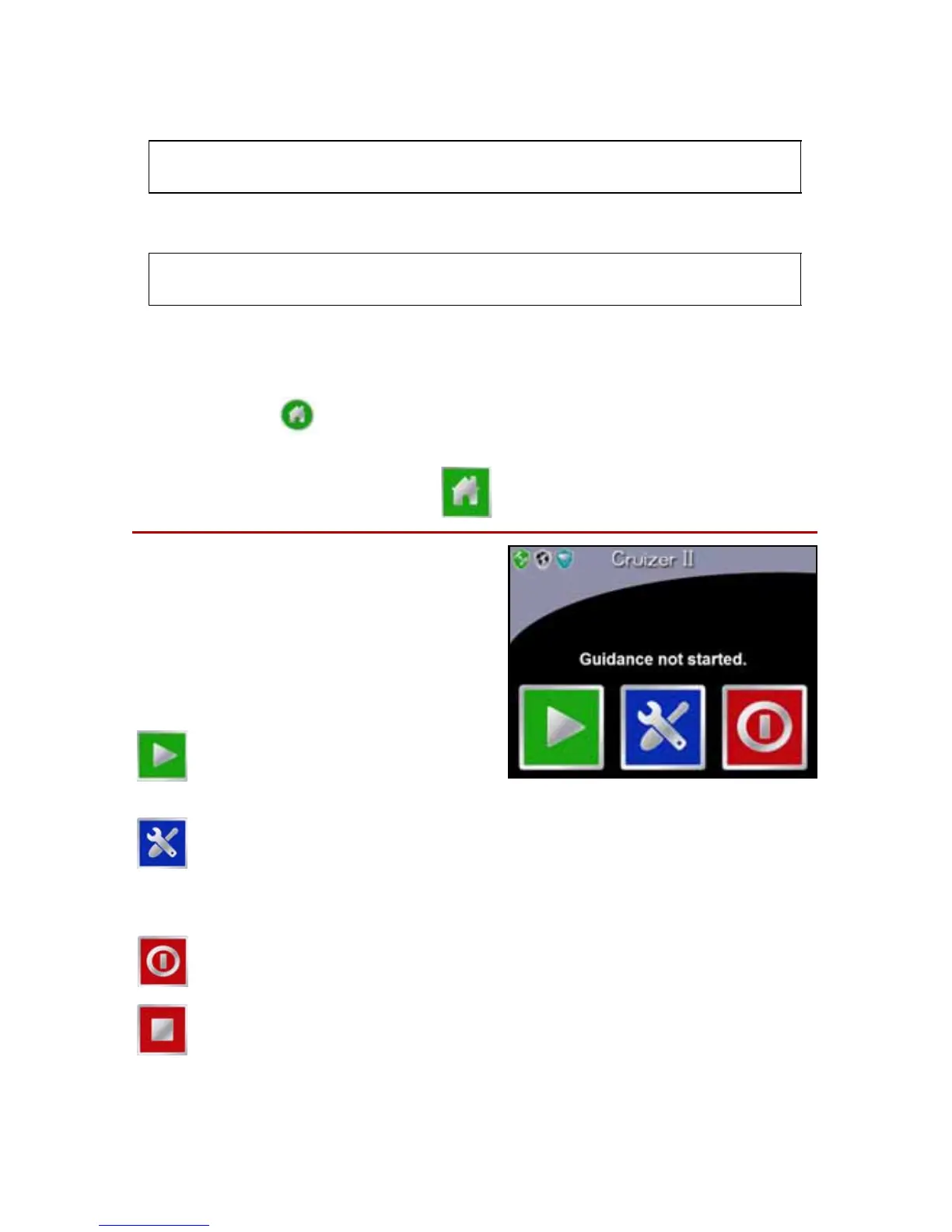

Home Screen
The version of firmware currently loaded
on the Cruizer II console is displayed in
the upper, right corner of the Home
Screen.
Home Screen Icons
Touch the following icons displayed on the
Home Screen to:
Note: The fore/aft offset must be measured perpendicular to the boom
or implement width.
Note: The left/right offset must be measured parallel to the boom or
implement width.
Start Job - Start a new job,
resume a previously saved job or
return to the guidance screen for
a job currently in progress.
Tools Menu - Accesses the Tools Menu. The Tools Menu is only
available from the Home Screen.
Note: Some settings or menu screens are not accessible while a job
is in progress. It is recommended to check settings before
starting jobs to ensure the console is configured properly.
Shutdown - Powers down the Cruizer II console. The Shutdown icon
is displayed each time the console is powered up or when guidance is
not active. Shutdown the console before toggling the power switch off.
End Job - Ends the open job. If guidance is running, the End Job icon
appears on the Home Screen.
