P/N 016-4010-001 Rev. A 49
GPS CONFIGURATION

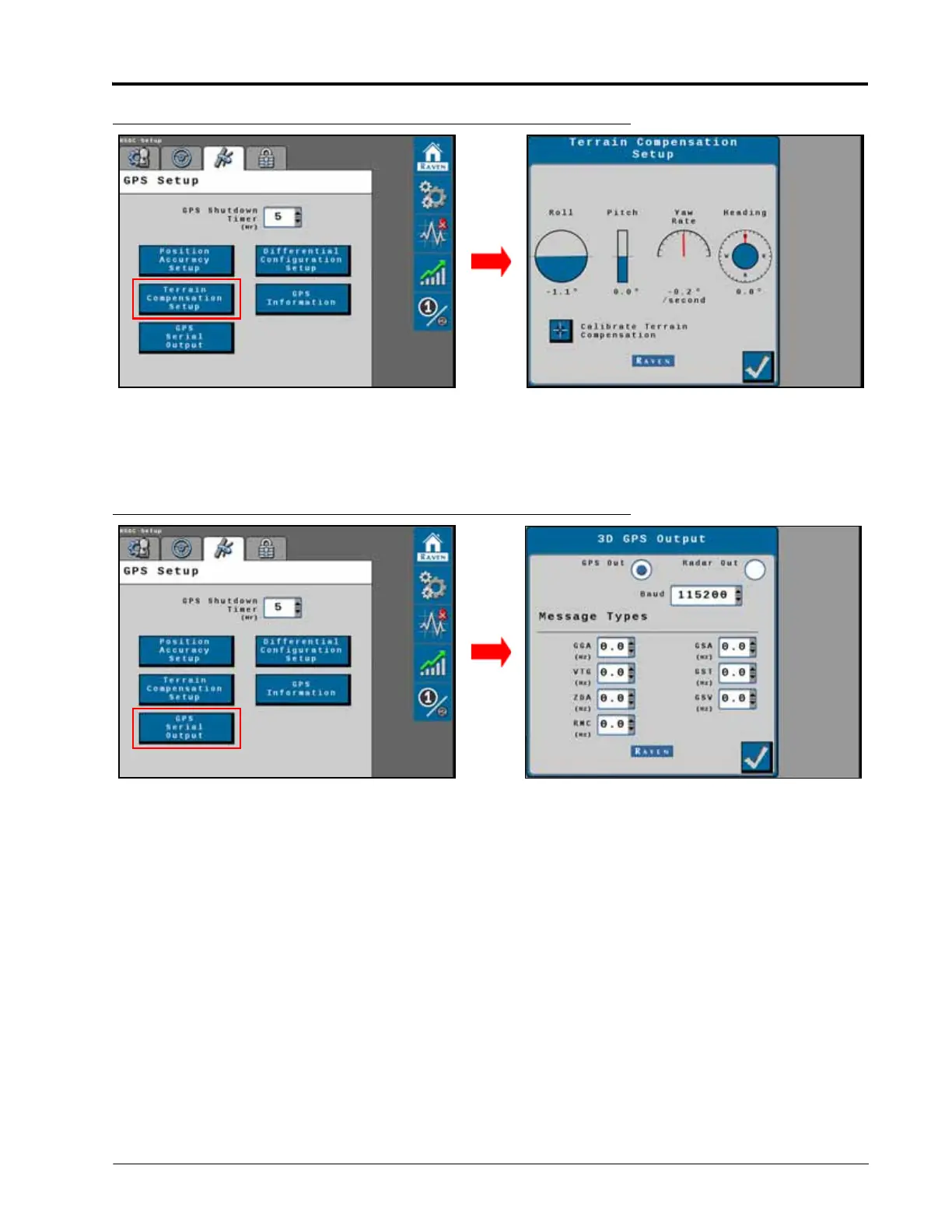

FIGURE 5. Terrain Compensation Setup Screen
• Roll, Pitch, Yaw Rate, and Heading - Real-time measurement data used by the 3D terrain compensation
feature.
• Calibrate Terrain Compensation - Begins the terrain compensation process.
FIGURE 6. 3D GPS Output/Radar Setup Screen
• 3D GPS Output/Radar - Allows the RS1 system to toggle between a serial 3D compensated GPS position
output or a simulated radar output. The Baud rate and message types are not used in radar outputs.
