CALIBRATION - HDU-SPECIFIC, MD, AND STEERING-READY
3. Press the Left button to set the left WAS value.
NOTE: Do not turn the steering wheel until the WAS page advances to the Center WAS setting.

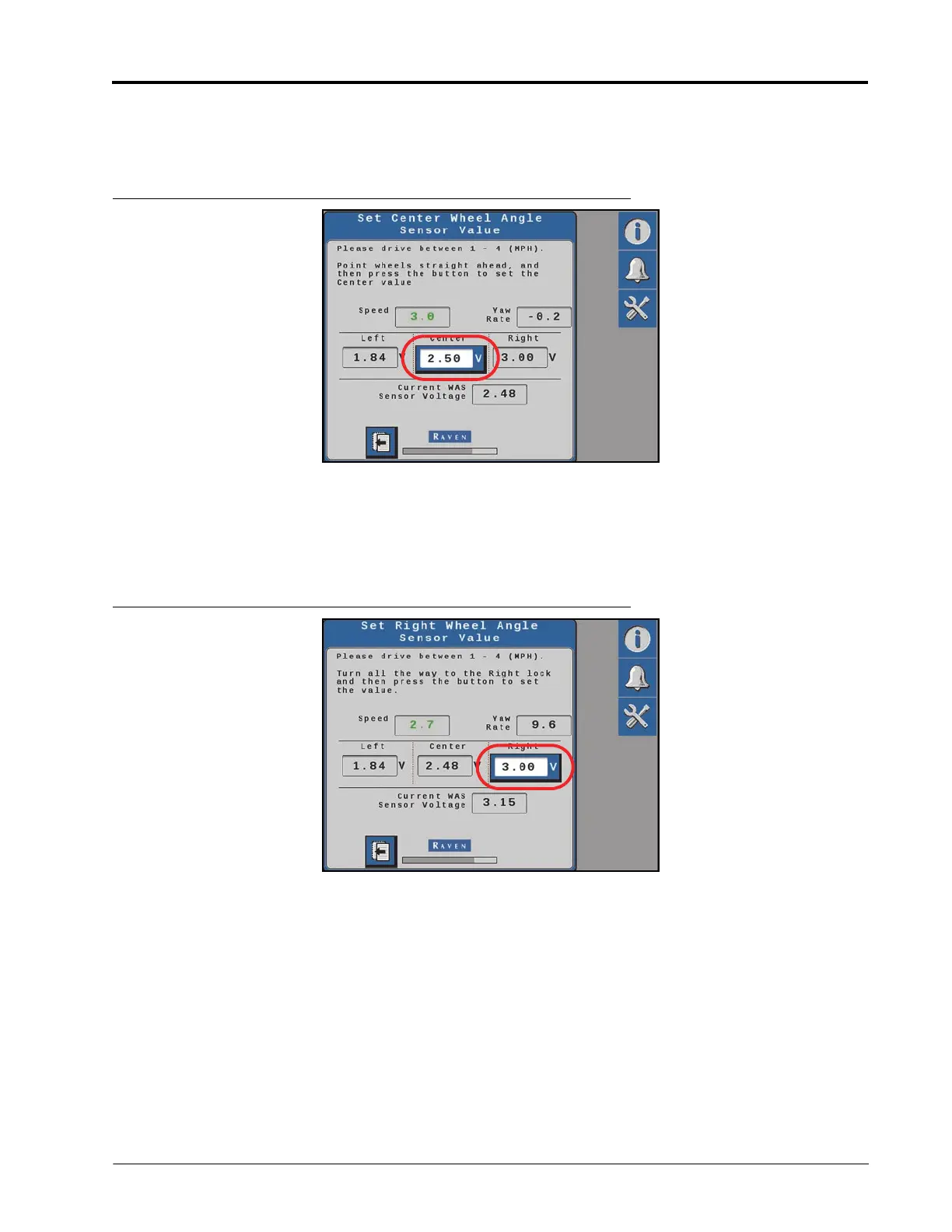

FIGURE 23. Center WAS Calibration Page
4. Drive forward between 1.6 - 6.4 km/h [1 - 4 mph] with the machine wheels pointing straight ahead.
5. Press the Center button to set the center WAS value.
NOTE: Do not turn the steering wheel until the WAS page advances to the Right WAS setting.
FIGURE 24. Right WAS Calibration Page
6. Drive forward between 1.6 - 6.4 km/h [1 - 4 mph].
7. Turn the steering wheel all the way to the right steering lock.
8. Press the Right button to set the right WAS value.
NOTE: Do not turn the steering wheel until the following Calibration Complete page is displayed.
