016-4010-001 Rev. J 17
CALIBRATION - HDU-SPECIFIC, MD, AND STEERING-READY

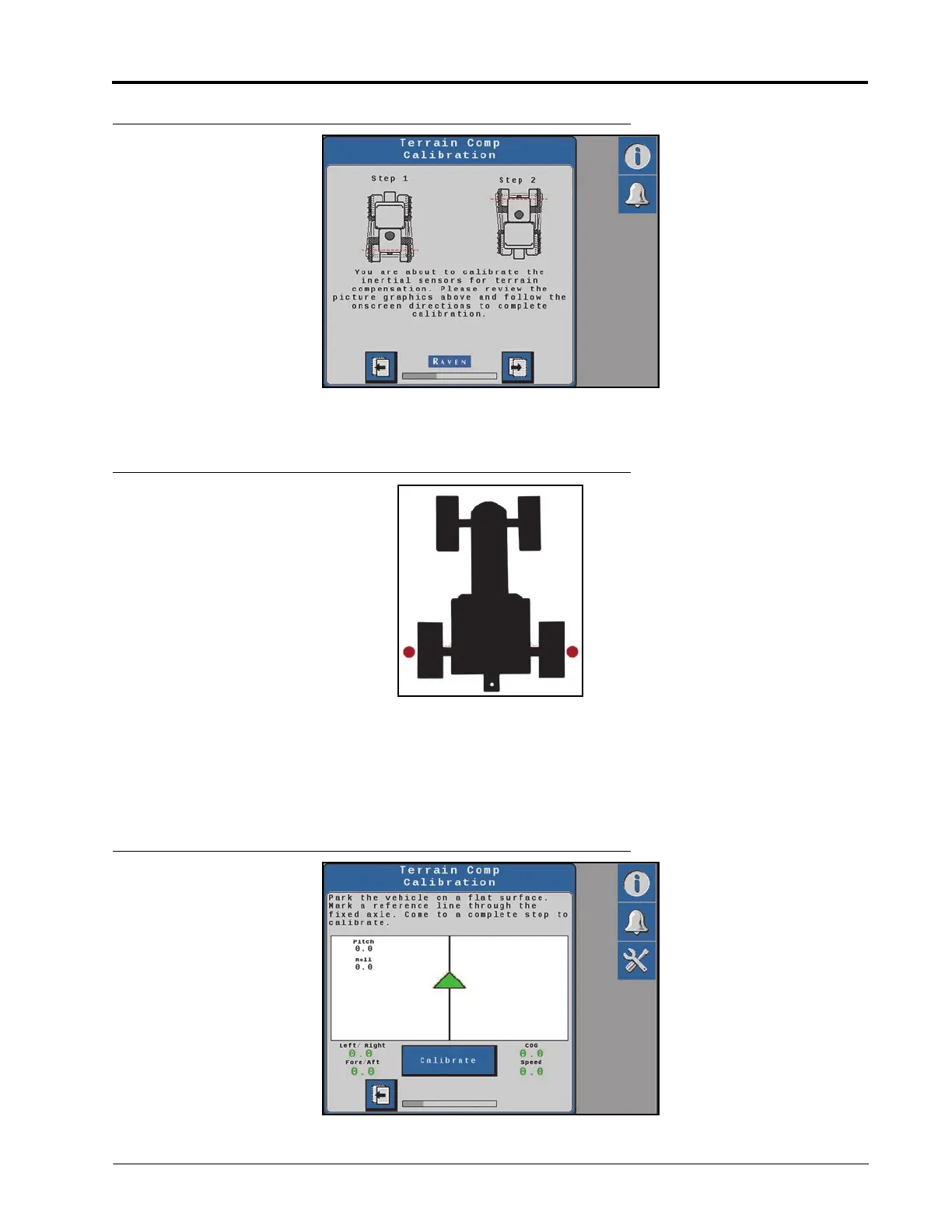

FIGURE 13. Terrain Compensation Calibration Wizard
2. Follow the on-screen instructions to begin the calibration process.
FIGURE 14. Machine Rear Axle Marked Before Terrain Comp Calibration
3. Place flags or markers on the outside of each wheel of the fixed axle of the machine.
• Rear axle - Front boom sprayers, rear boom sprayers, and front-steered machines
• Front axle - Articulated tractors, rear-steered machines, and wind rowers
• Center of track - Tracks
FIGURE 15. Terrain Comp Calibration Page
