CHAPTER 3
18 Raven RS1™ and RS Lite™ Calibration and Operation Manual
4. Select Calibrate to begin the calibration process. The following page will display:

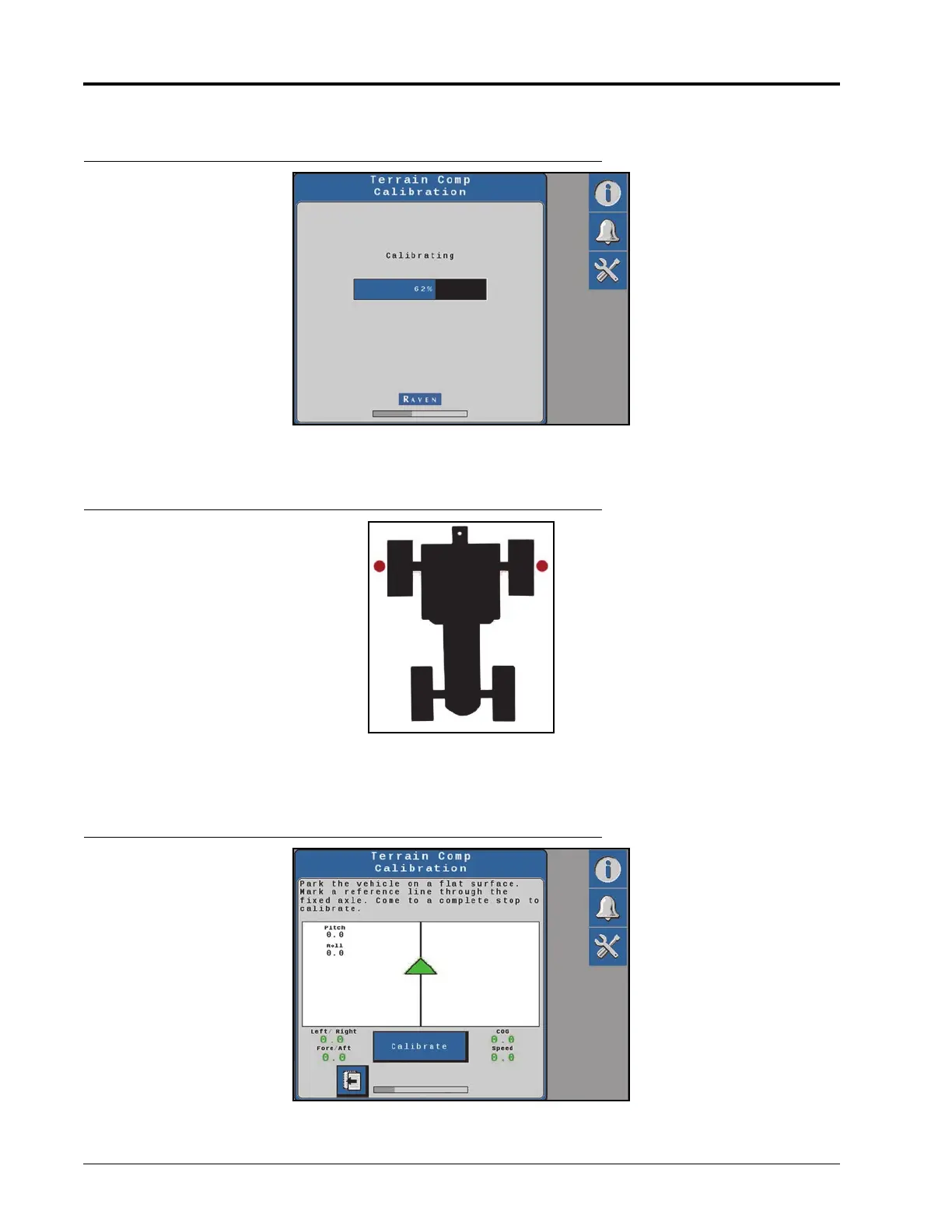

FIGURE 16. Terrain Comp Calibration Page
5. Wait for the calibration process to be completed before moving the vehicle.
FIGURE 17. Machine Orientation After Terrain Comp Calibration
6. Turn the machine around 180° and park with the machine facing the opposite direction and the fixed axle in
between the flags or markers.
FIGURE 18. Terrain Comp Calibration Page
7. Select Calibrate. Once the calibration is complete the following page will display.
