Raven SCS 700 PGM Series User Manual

7
4. MOUNTING THE CONSOLE AND CABLING
l) Mount the Console to a secure support inside the cab of the vehicle.
2) Install Product Cable to the connectors on the Injection Modules (Prod 1-White, Prod 2-Black) and
Boom On/Off Valves (Boom 1-Black, Boom 2-Brown, Boom 3-Blue). Secure with plastic cable ties.
(See Figures 4 & 5).
3) Connect the Console Control Cable to the plug in the back of the Console. (See Figure 5). Run the
Console Control Cable out of the vehicle cab and connect with Product Control Cable on the sprayer.
(Extension cables are available from a Raven Dealer). Secure with plastic cable ties.
4) Turn POWER ON/OFF switch OFF and route the Red and White battery wires to a 12 volt battery.
Attach the White wire to the NEGATIVE (-) terminal and the Red 16 gauge wire to the POSITIVE
(+) terminal. (DO NOT CONNECT WIRES TO THE STARTER). Secure the battery wires with
plastic cable ties. DO NOT tie the battery wires close to the existing battery leads or other electrical
wiring.
NOTE: Power relay P/N 063-0159-929 must be installed. Reference Battery
Connection Figure 6A.
5) Connect the Speed Sensor Cable to the plug in the back of the Console.
6) Installation of the system is now complete.

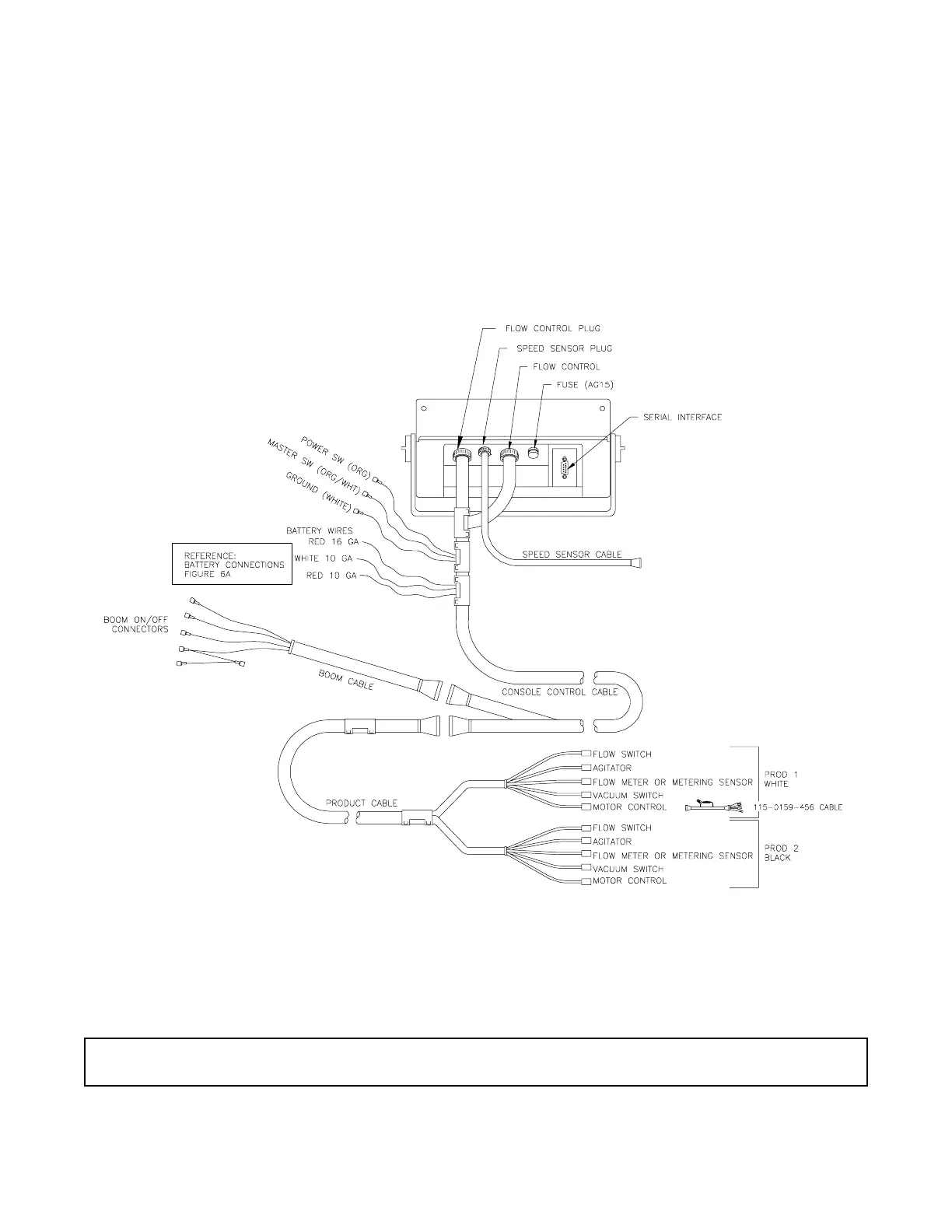

FIGURE 5
