8

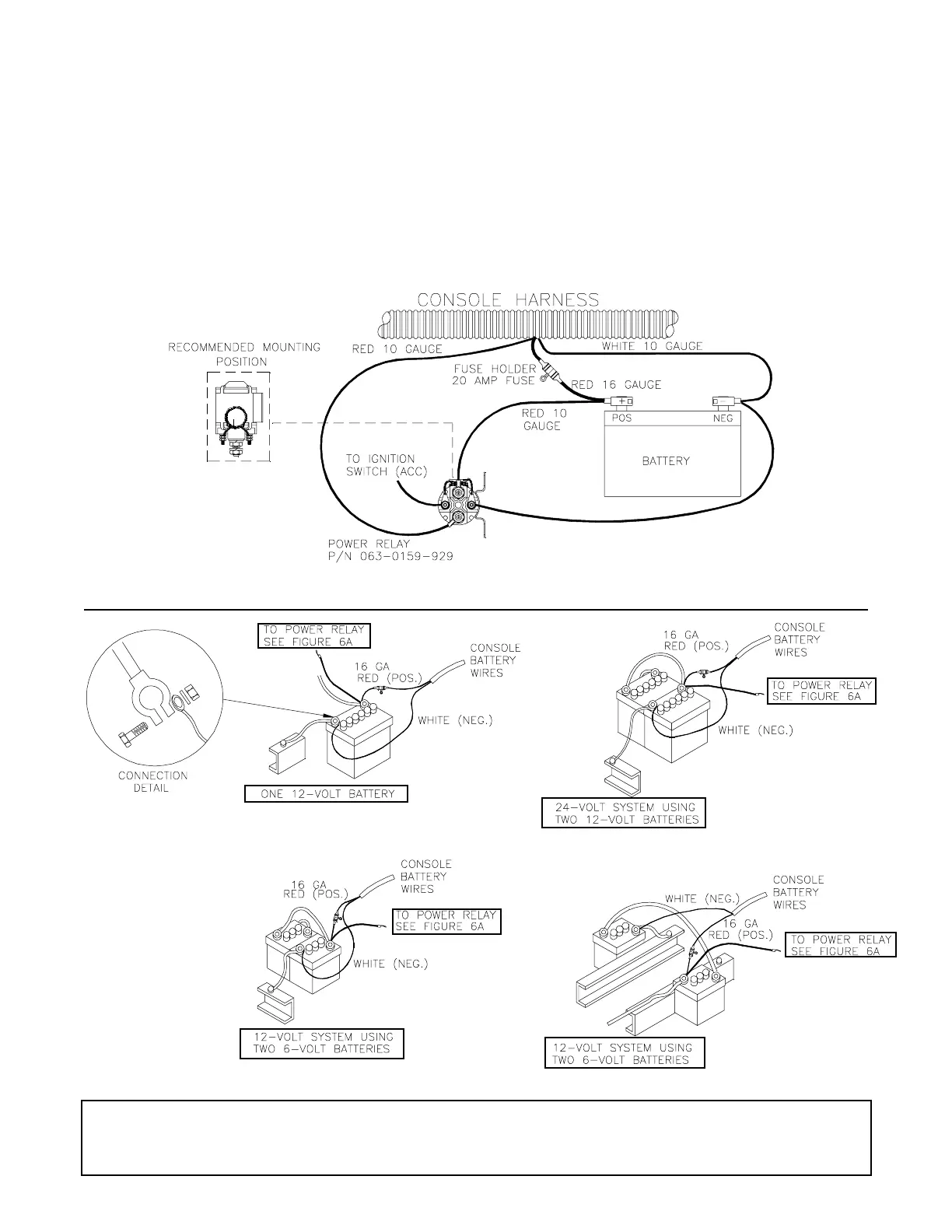

BATTERY CONNECTIONS
BATTERY HOOK-UP FOR CONSOLE HARNESS
1) Connect the 10 gauge white wire to the negative post of the battery. Install fuseholder and
20 amp fuse on 16 gauge red wire.
2) A relay must be installed between the red 10 gauge wires and the battery. The relay is
normally controlled from the accessory side of the ignition switch. See Figure 6A.
FIGURE 6B
NOTE: Disconnect console battery wires if the system is not used for an extended
period, (i.e. two weeks). With the POWER switch to OFF, the system draws 9
milliamps of current to maintain information stored in the Console.
FIGURE 6A
