Raven SCS 700 PGM Series User Manual

53

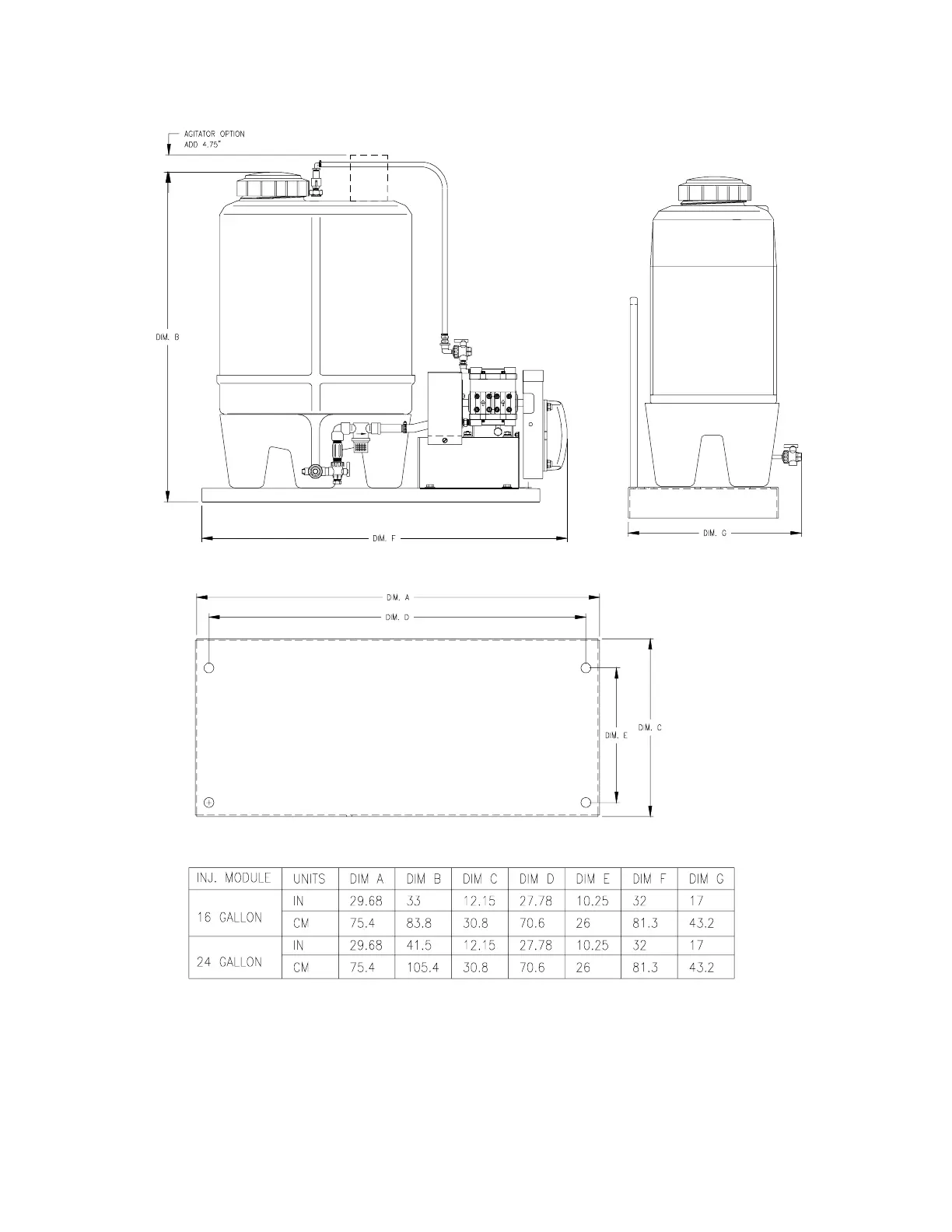

2. MOUNTING THE INJECTION MODULE
1) Mount injection module using bolts in four corners. Reinforce vertical supports with external braces
(steel angle iron or tubing) that are secured to structure of mobile sprayer. OPERATION OF
SYSTEM WITHOUT EXTERNAL BRACES MAY CAUSE FAILURE OF TANK SUPPORTS.
2) See "INITIAL INJECTION SET-UP" before operating system.
FIGURE 24
