NOTE: To prevent nuisance clearing of self-test speed, disconnect speed connector on
back of the Console when Radar Speed Sensors are used.

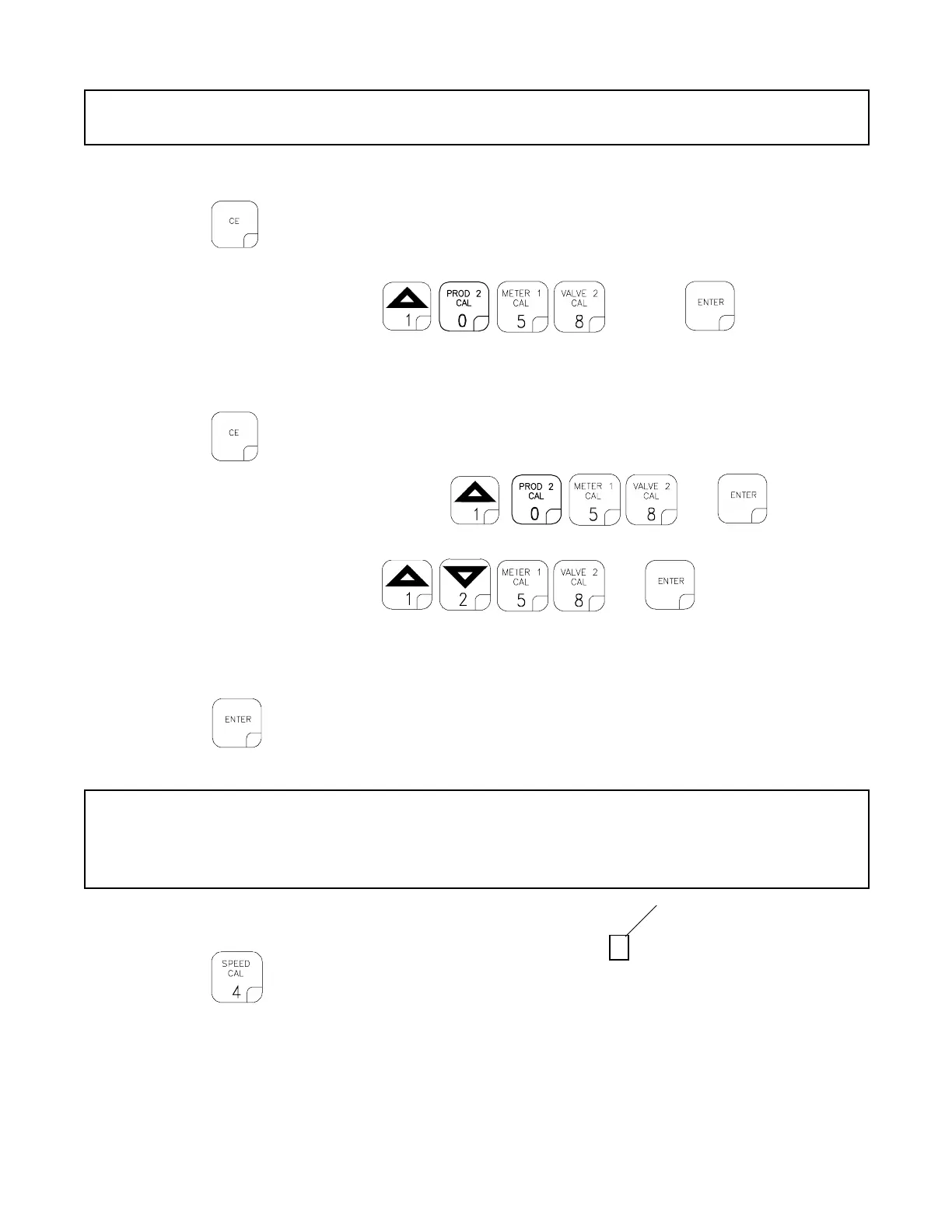

4. SEQUENCE TO ACTIVATE DATA-LOCK
1) Depress for 5 seconds, "NEU.1" and "CodE" will flash in DATA display.
2) Enter a 4 digit code within 15 seconds.
EXAMPLE: For 1058, depress:
and .
5. SEQUENCE TO CHANGE DATA-LOCK
1) Depress for 5 seconds, "oLd" and "CodE" will flash in DATA display.
2) Enter old 4 digit code within 15 seconds:
and . "NEU.1"
and "CodE" will flash in DATA display. Enter a new 4 digit code within 15 seconds.
EXAMPLE: For 1258, depress:
and .
6. ENTER MODE SEQUENCE WITH ACTIVATED DATA-LOCK
1) Depress the key into which you wish to enter data.
2) Depress
, "CodE" will appear in DATA display. Enter your DATA-LOCK CODE.
If code is correct, "E" will replace "CodE" in DATA display. Now enter data normally.
NOTE: The DATA-LOCK feature prohibits the entry of data without first entering
the DATA-LOCK CODE. If DATA-LOCK is not desired, omit Steps 4, 5, and 6.
The DATA-LOCK CODE may be cleared by entering a code of "0" or by resetting
the Console as described in REQUIRED CONSOLE PROGRAMMING.
7. CONTROL VALVE DELAY
Hold key until DATA display flashes. The Control Valve Delay number is a 4 digit number.
The first digit in the Control Valve Delay number represents the time (in seconds) between when the
Booms are turned ON and when the Console actually begins to control the flow rate. A value of
1-9 means a delay of 1-9 seconds respectively, a value of 0 means no delay. The remaining 3 digits
are always zero. The Control Valve Delay feature only operates when the booms are toggled OFF
or ON in intervals of 30 seconds or less.
Control Valve
Delay Digit
X 0 0 0
To Next Page
