Raven SCS 700 PGM Series User Manual

55
2. MODULE ASSEMBLY INSTRUCTIONS
1) Install the straps onto tank saddle per instructions enclosed in saddle kit, and secure saddle to frame
(See "TYPICAL MODULE DIAGRAM").
2) Connect hose to elbow on bottom of tank, and secure with two hose clamps. Position clamps
opposite to each other for best seal. Place tank in saddle and secure with straps.
3) Install over center buckle on the large strap by inserting webbing thru the metal loop, back thru upper
slot. thru the lower slot, and back thru the metal loop as shown in Detail A.
4) Secure with buckle and safety pin on small strap (See Detail B).
5) Mount pump module to frame using the 3/8" x 1" bolts, lockwashers, and flat washers.
6) Connect hose from tank to hose barb on pump and secure with two hose clamps. Position hose
clamps opposite each other for best seal.
If Strap Assembly parts are desired:
7) Attach the large strap onto right side of the frame using 7/16" x 1 3/4" bolt, lockwasher, and nut.
8) Attach the small strap on the left side of the frame using a 7/16" x 1 3/4" bolt, lockwasher, and nut
as shown in Detail C.

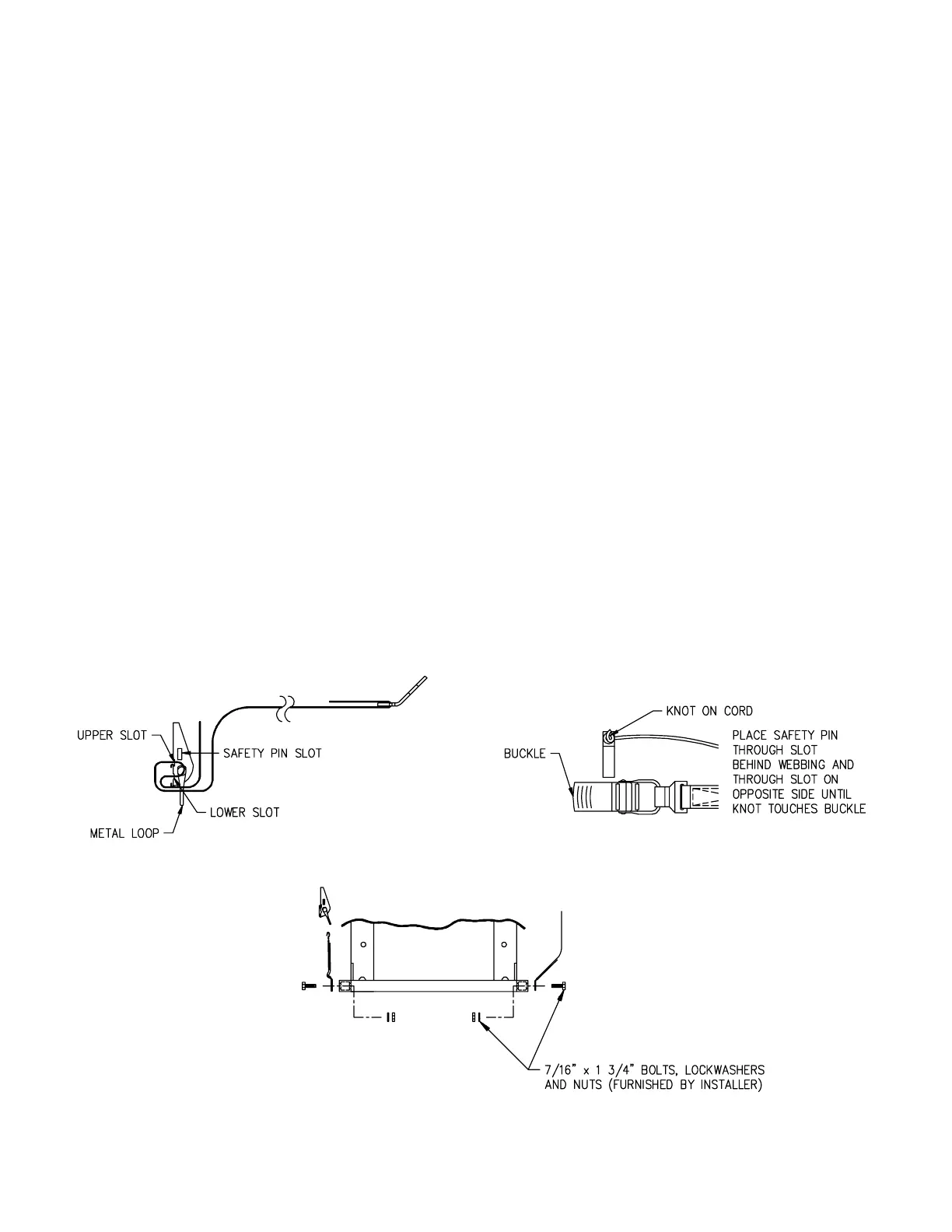

DETAIL A DETAIL B
DETAIL C
