8. Select Edit.
9. Select Serial Devices. The following screen will be displayed:

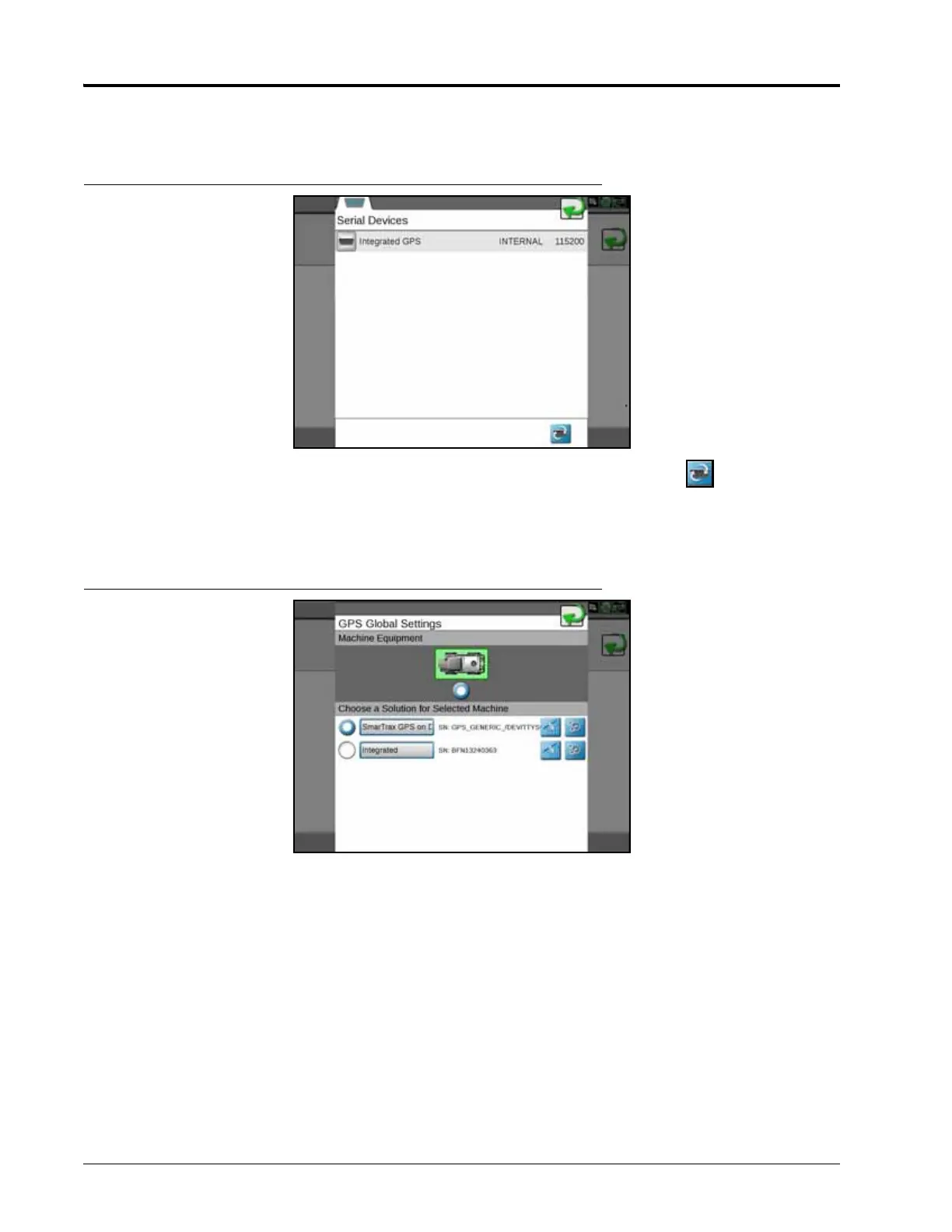

FIGURE 3. Serial Device Detection Screen
NOTE: If Integrated, SmarTrax, and SmarTrax GPS are not listed, press the Retry icon on the bottom-
right corner of the screen. If these devices still do not appear, inspect cable connections to ensure
they are installed securely, then press the Retry icon again. If the devices still do not appear, refer to
Chapter 4, Troubleshooting for further information.
FIGURE 4. GPS Global Settings Screen
10. Verify that SmarTrax GPS on DGPS is displayed and selected as shown in Figure 4 above.
NOTE: If SmarTrax GPS on DGPS is not visible in the list, inspect cable connections to ensure they are
installed securely, then press the Retry icon again. Refer to Chapter 4, Troubleshooting beginning on
page 41 for further information.
EXTERNAL 600S GPS RECEIVER
The steps below apply only to Viper 4 computers utilizing an external 600S GPS receiver.
