VIPER 4

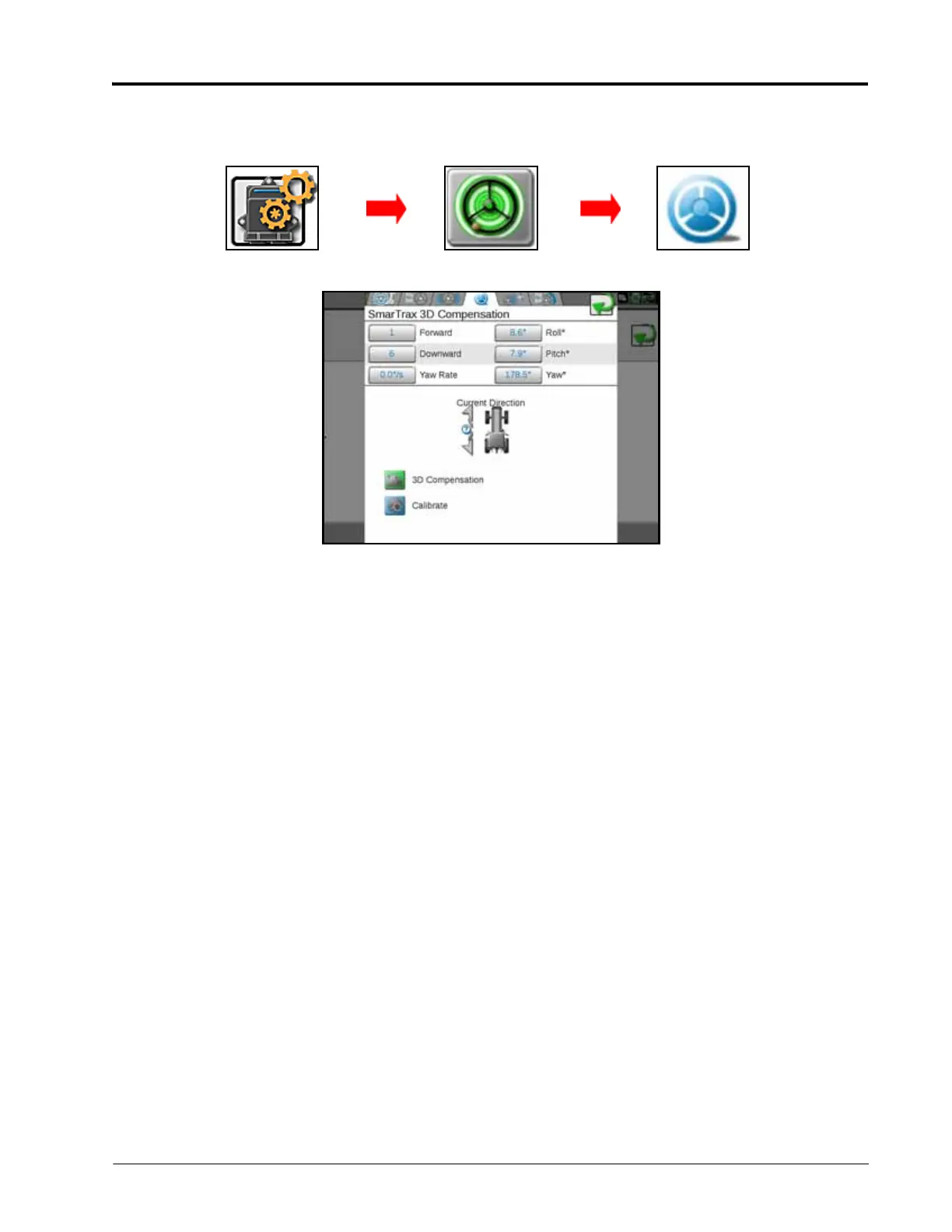

SMARTRAX 3D COMPENSATION TAB
• Forward and Downward - Indicate the orientation of the node programmed during calibration of the
SmarTrax system.
• Yaw Rate, Roll, Pitch, and Yaw - Real-time measurement data used by the 3D terrain compensation feature.
• Current Direction - Indicates the direction in which the machine is traveling. If the direction is incorrect, drive
forward and press the Send Forward Command button. Verify the direction of travel is displayed correctly
when the machine is being driven in both forward and reverse.
• 3D Compensation - Touch the 3D Compensation status button to toggle the 3D compensation features on or
off. When disabled, the SmarTrax system will not adjust the displayed guidance path for any machine tilt during
field operations.
• Calibrate - Used to calibrate the 3D terrain compensation feature. Refer to the Enhanced Tilt Calibration
section on page 24 for the calibration procedure.
Edit SmarTrax 3D Compensation
To Next Page
