Rayco RG25HD - RG25 HD - Full Assembly Rev.

RG25DH Operation • Service • Maintenance • Parts Manual
58

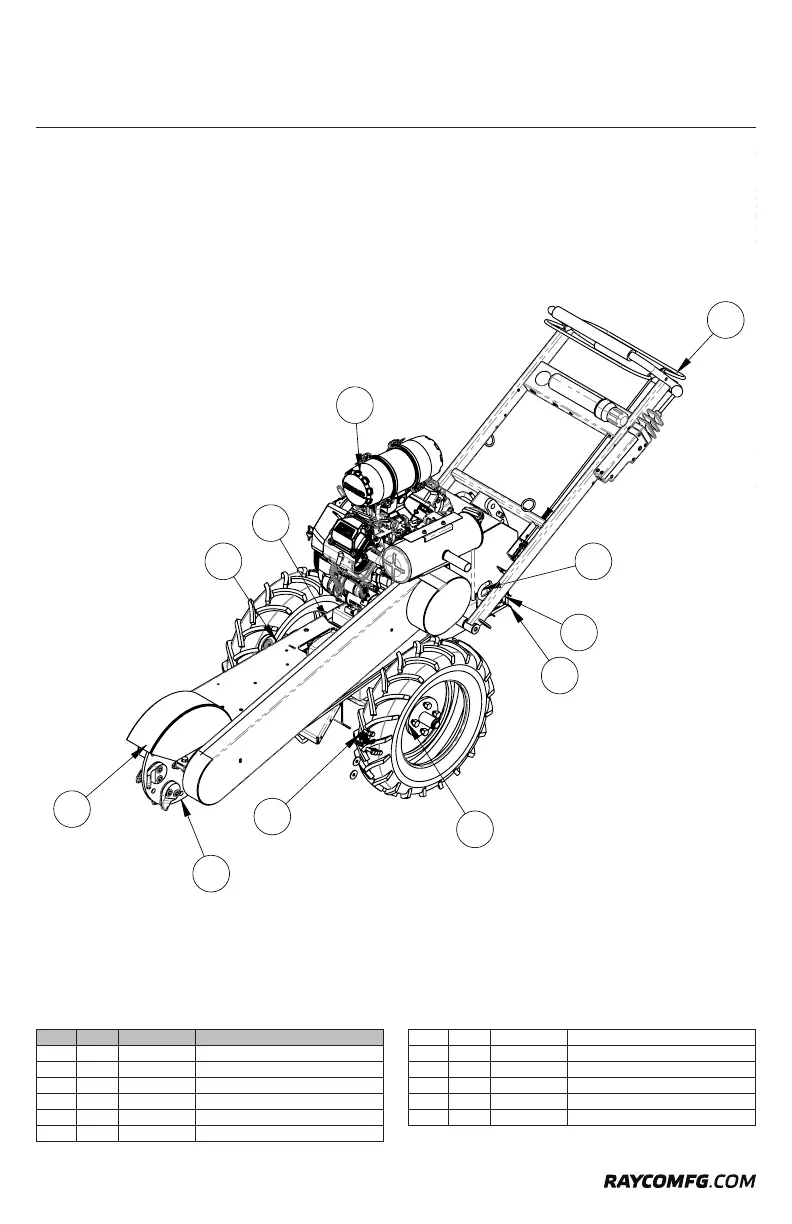

RG25HD - Full Assembly Rev.
12
3
5
7
9
6
11
2
1
10
4
8
ITEM QTY. PART # DESCRIPTION
1 1 5565 WELDMENT FRAME
2 1 3294 DRIVE ASSY-CUTTER WHEEL
3 1 5567 HANDLE BAR ASSEMBLY
4 1 12386 ENGINE MNT WELD
5 1 FUEL ASM FUEL TANK ASSEMBLY
6 1 12402 WHEEL ASSY.
7 1 26965 TAG- SN/VIN RAYCO
8 1 26967 TAG- EPA GAS, EMISSION INFO
9 8 750463 RIVET-3/16 X 3/8 STLMAND
10 1 12407 DRIVE ASSY. HYD
11 1 12405 BELT GUARD ASSY
12 1 732-3012 TITLE
