Rayco RG25HD - 5567 Handle Bar Assembly - Rev. B

RG25DH Operation • Service • Maintenance • Parts Manual
64

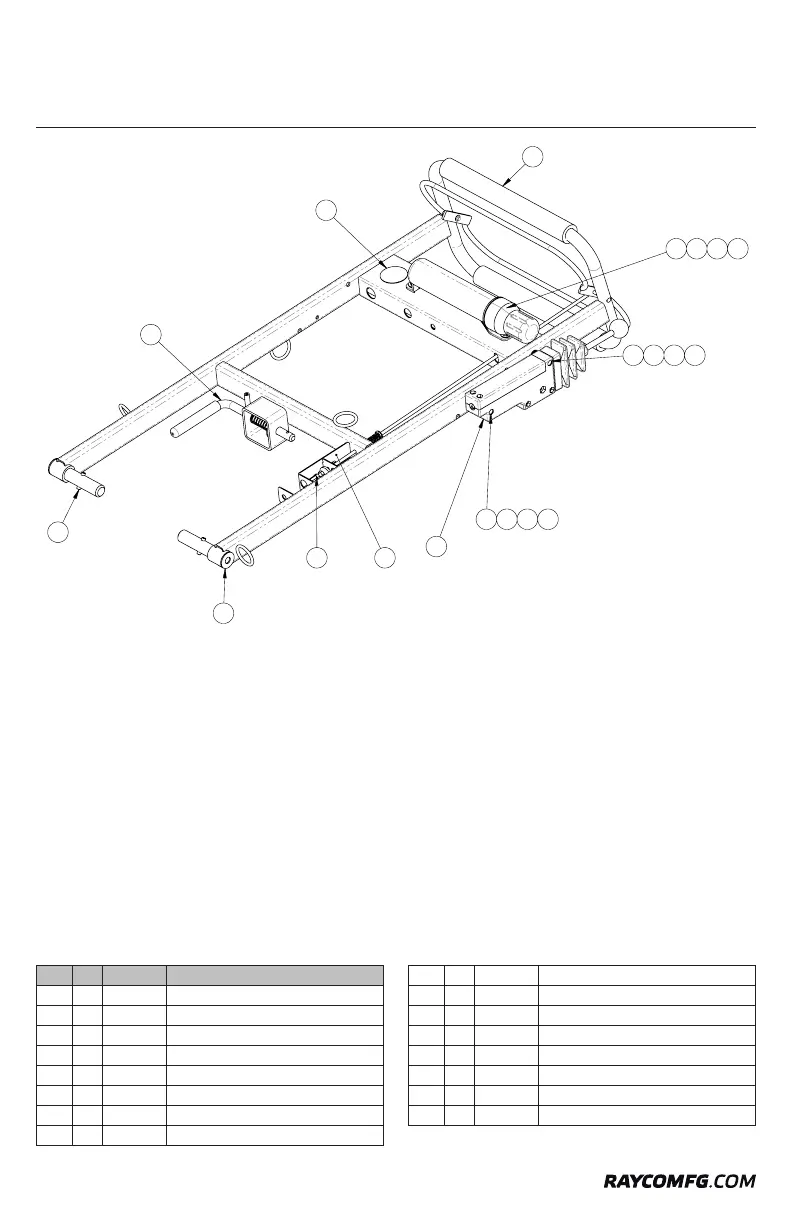

5567 Handle Bar Assembly - Rev. B
ITEM QTY. PART # DESCRIPTION
1 1 5568 WELDMENT HANDLE BAR
2 1 1501 LOCK PIN ASSEMBLY
3 1 4909 BAIL ASSEMBLY MWF
4 1 750089 PLUG-PANEL, 2IN. BLACK
5 2 23323 TUBING, FOAM 1” ID X .300” WALL
6 2 1496 HINGE PIN WELDMENT
7 2 730094 ROLL PIN - 5/16 x 1 3/8
8 1 610025 LEVER-FORWARD/REV 20HD
9 6 726101 WASHER FLAT 1/4 USS
10 2 722109 BOLT HEX 1/4-20 X 3 GR8
11 2 724101 NUT HEX 1/4-20 GR8
12 2 726102 WASHER-LOCK, 1/4”
13 1 802998 TUBE-MANUAL 2” DIA X 12.5” LONG
14 2 722205 BOLT HEX 5/16-18 X 1 GR8
15 2 726201 WASHER - FLAT 5/16
16 2 750050 NUT LOCK 5/16-18 NYLON
5
13
8
10
13
6
7
2
14 15 16
4
9
11
10
9 11
12
12
