Rayco RG25HD - 28198 Fuel Tank Assembly 21898-

RG25DH Operation • Service • Maintenance • Parts Manual
800.392.2686
63

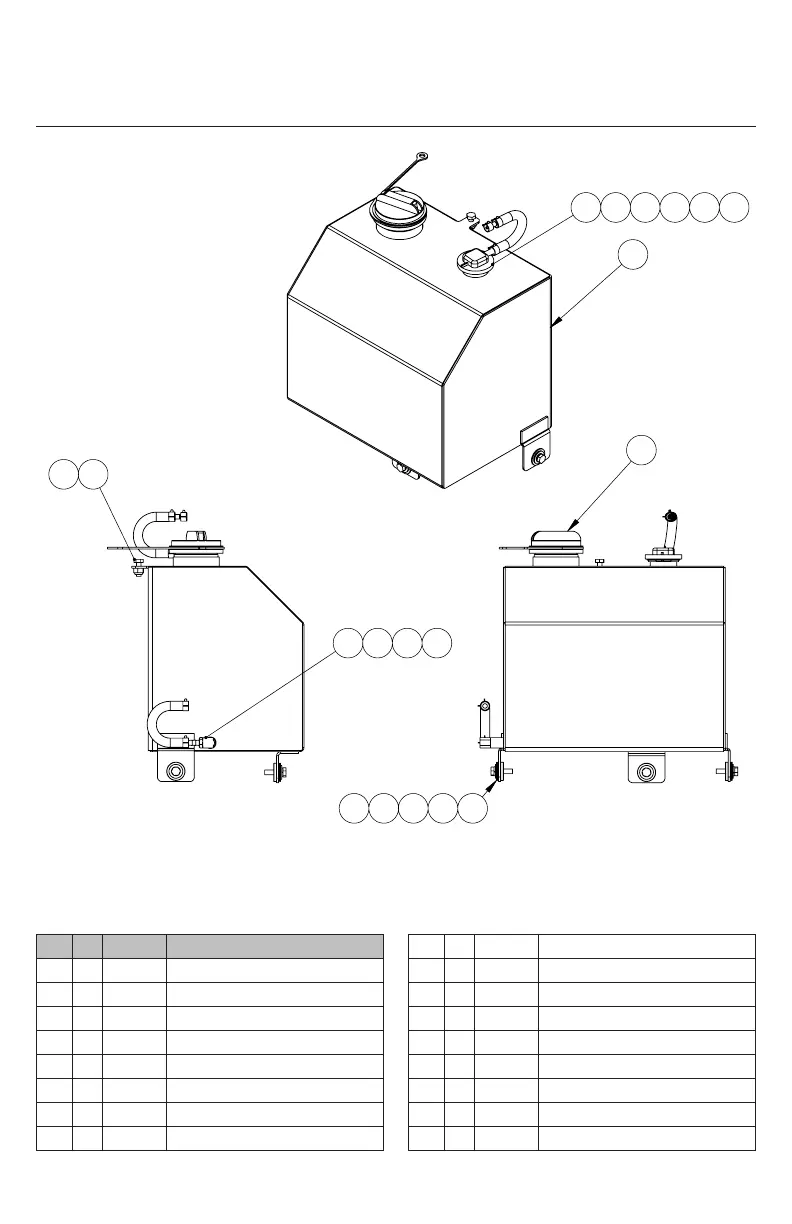

28198 Fuel Tank Assembly 21898-
ITEM QTY. PART # DESCRIPTION
1 1 FUEL TANK WELDMENT
2 1 801682 CAP-FUEL FULL TURN EPA
3 1 801681 GROMMET-ROLL OVER VENT
4 1 801680 VENT-ROLL OVER
5 2 801679 HOSE-FUEL LINE 1/4 EPA
6 4 750140 CLAMP-SPRING ACTION 1/2”
7 1 801735 COUPLER-HOSE BRASS 3/16 TO 1/4
8 1 801736 CLAMP-SPRING ACTION 3/8”
9 1 738216 FIT-EL90 -2MP -2FP
10 1 750040 FIT- -4MB -2MP
11 1 724508 NUT LOCK 1/4-20 NYLOCK
12 1 722103 BOLT HEX 1/4-20 X 3/4 GR8
13 3 726101 WASHER FLAT 1/4 USS
14 3 726102 WASHER-LOCK, 1/4”
15 3 722104 BOLT HEX 1/4-20 X 1 GR8
16 3 2541-08 1/2 OD x 14 GA. WALL TUBING
17 3 760937 ISOLATOR-GROMMET
2
1716151413
1211
9 6 5 10
4 3 6 5 7 8
1
