User Guide of Raycus 500W～2000W laser
29
d） The power of the laser is controlled by the voltage obtained by PIN 22 and PIN 25 of
theDB25 interface connector.
e） The external MOD interface provides modulating signal for the laser.
f） Enable the laser to emit laser light through one of the following ways：
1
）
PIN 6 and PIN 9 of the DB25 control interface is applied to 24V. – laser enable signal.
2
）
Press ‘Laser’ button on the front panel. – laser enable signal.

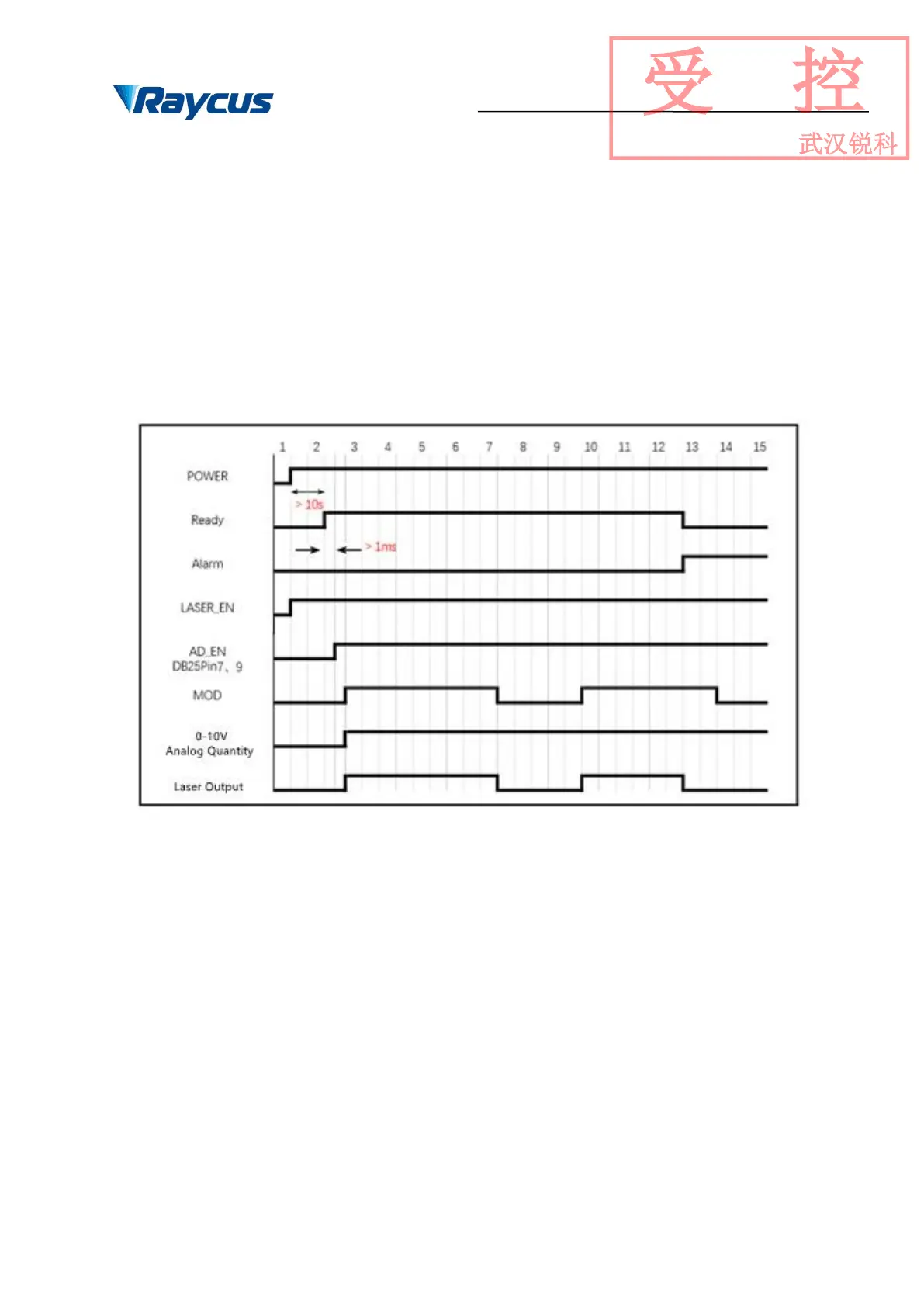

4.7.6 The Sequence Diagramof External AD mode
Figure 20 Control Sequence Diagram of ADMode
4.7.7 Wiring in Internal Control Mode
To Next Page
