User Guide of Raycus 500W～2000W laser
30

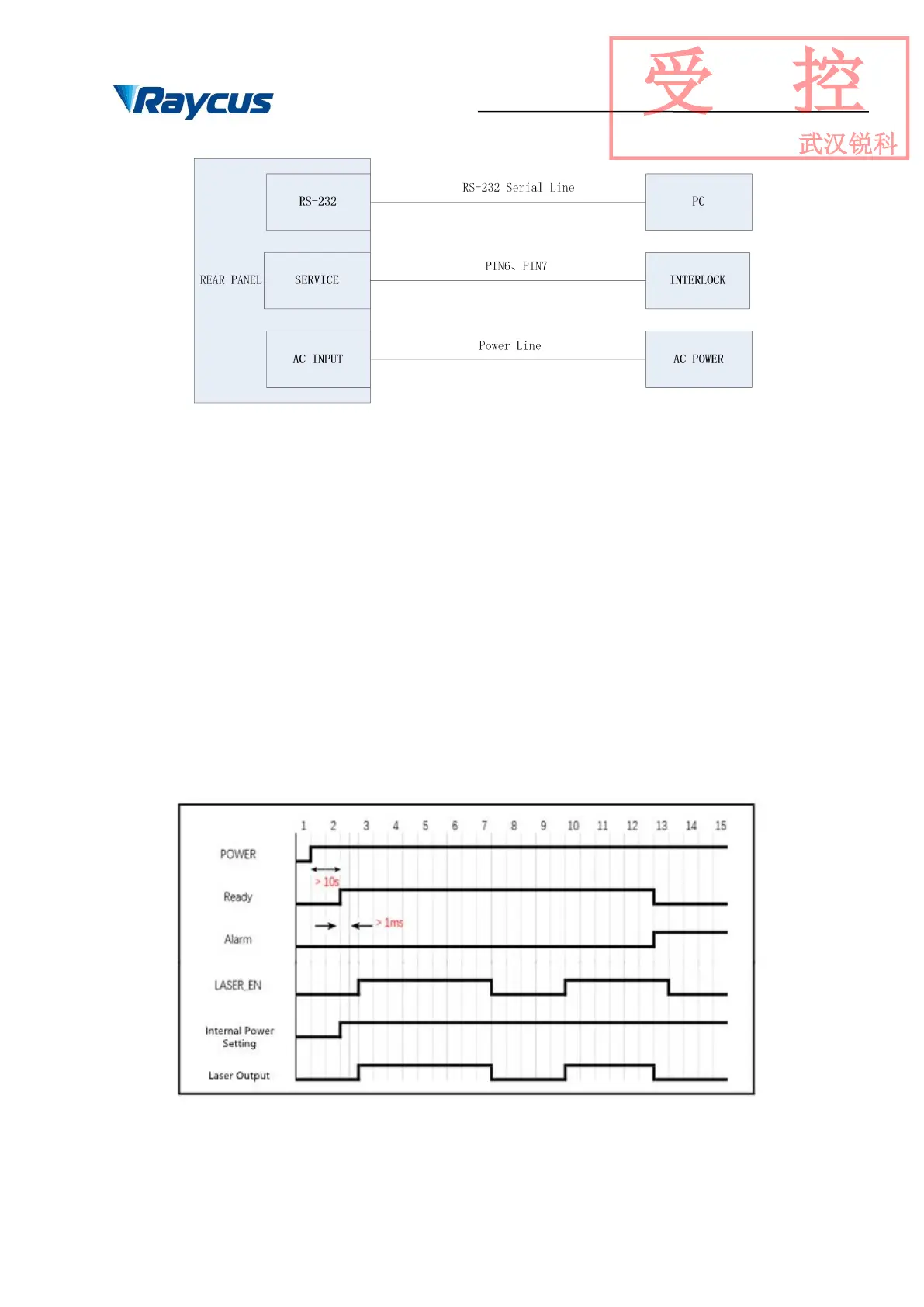

Figure 21 Wiring in Internal Control Mode
4.7.8 The Operation Procedure ofInternal Control Mode
a） Turn key switchto ‘ON’ position. Then ‘Power’ indicator light is on.
b） Waiting for 10s until the internal main control board circuit initialization is completed.
c） Setting the power of the laser by upper computer software, thenclick ‘SET’ to send a
command of emitting laser.
d
）
Press ‘Laser’ button on the front panel --- enable signal.
e） Click ‘Emission on’ infunction area of upper computer Software to open optical shutter to
emit laser light.
4.7.9 The Sequence Diagram of Internal Control Mode
Figure 22 Control Sequence Diagram of CW Mod in Internal Control Mode
