User Guide of 1500W CW laser

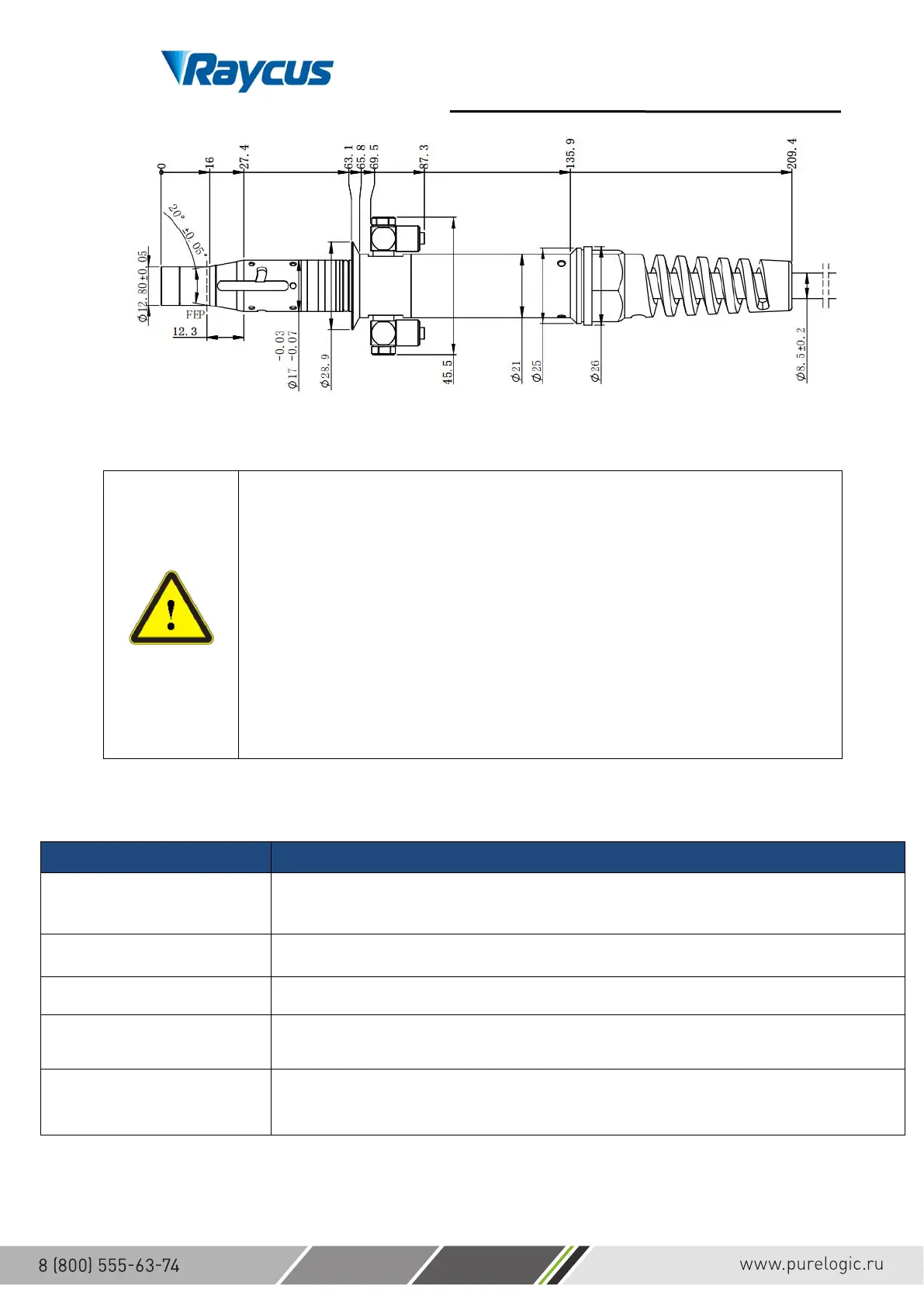

Figure 4 Dimensional drawing of welding IQB output optical cable
For IQB output optical cables, the two copper contacts
(InterLock pins) on the output head must be shorted before the
laser works, otherwise the laser will not work properly. Usually
the copper contacts are automatically shorted after the output
fiber cable is installed in the processing equipment.
Before installing the output cable in the processing head, the
lens of the output cable must be inspected. If the lens is dirty, it
must be cleaned.
It is forbidden to disassemble the output lens by anyone other
than Raycus, otherwise the warranty will be invalid.
3.3 Cooling system installation and requirements
Table 6 Cooling System Requirements
External diameter of pipe
(mm)
Cooling system water
temperature (
℃
)
