Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide of 1500W CW laser

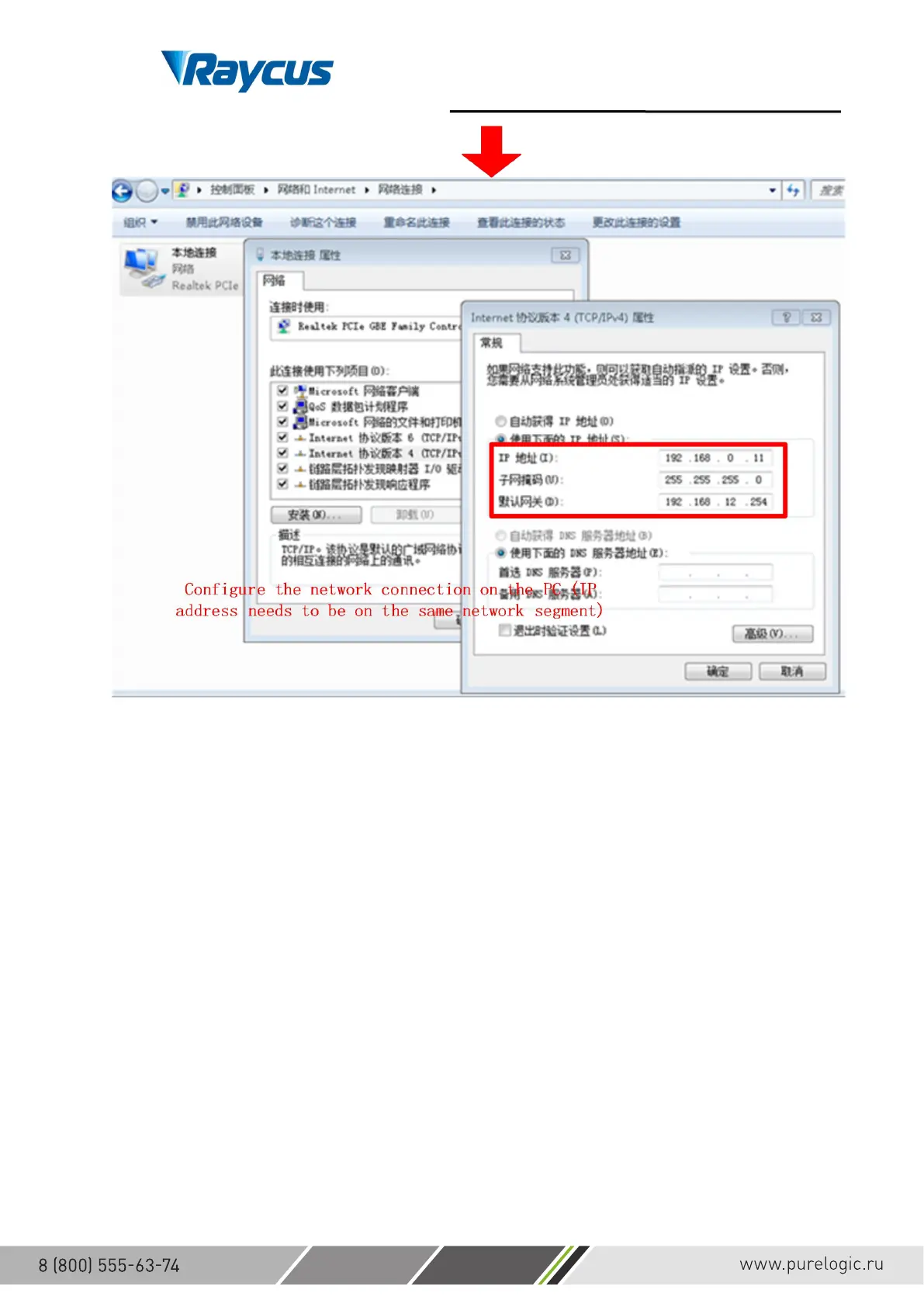

Figure 10 Ethernet connection steps
4.5 Installation Instruction
1) Take out the laser carefully, move it to the installation position, remove the
handle, and use the handle to install the hole position to fix it with screws.
2) Remove the protection cap of the output head, use strong light to check if
there is dust on the lens of the output end. If so, please clean it before use,
and then cover the protection cap of the output head.
3) Install the output optical cable on the processing equipment according to
the actual situation (also install the output head cooling water pipe), pay
attention to arrange the output optical cable, and protect the output head.
To Next Page
