Raycus RFL-C1500H User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide of 1500W CW laser

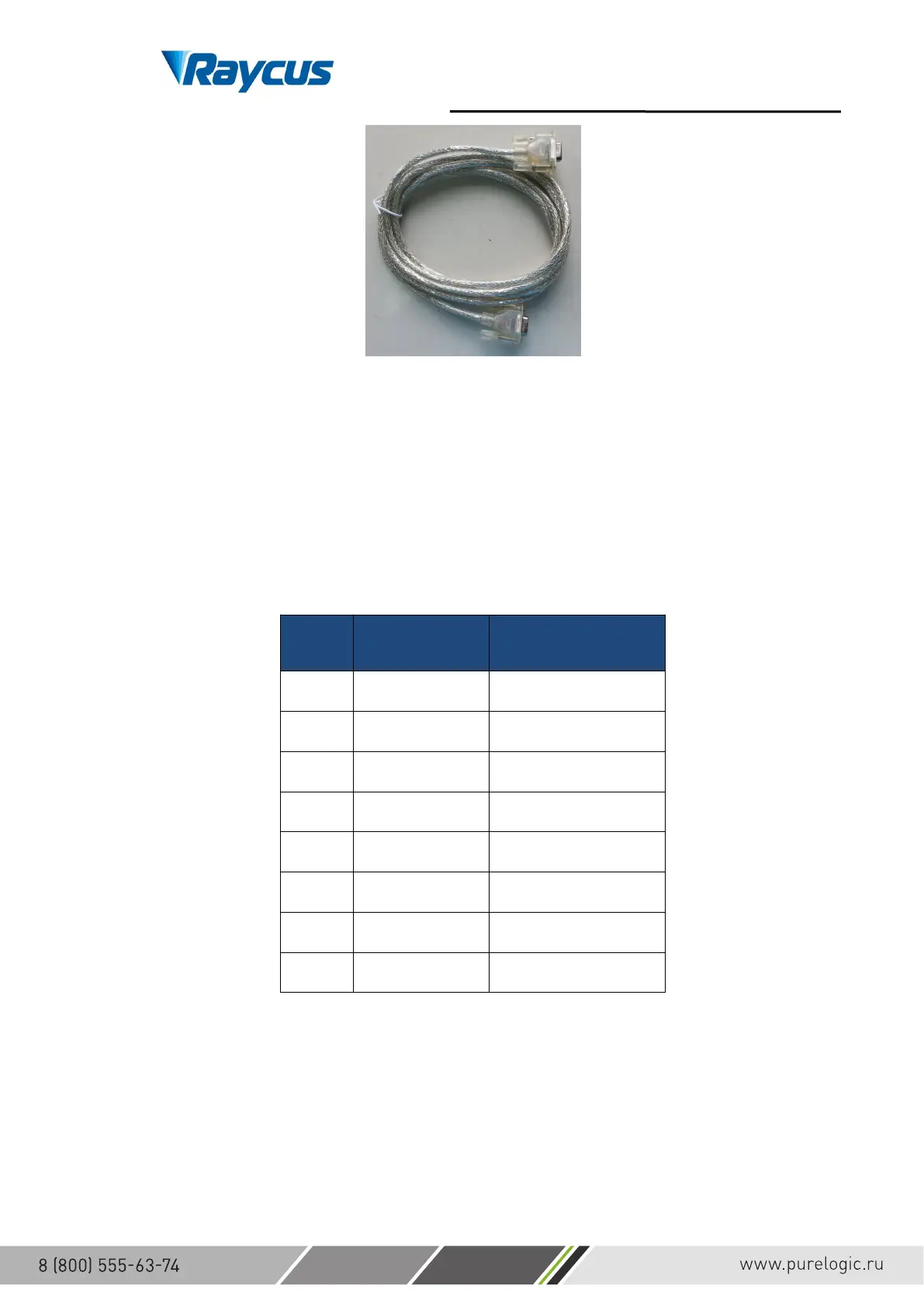

Figure 9 RS-232 serial cable
4.4.3 Ethernet TCP / IP interface and connection steps
The default IP address of the laser is 192.168.0.10 and the laser only supports
UDP communication. The laser listens for connections on port 8099. The
command must be sent as a single string in a single packet.
Table 11 Ethernet interface pin definition
PIN
Feature
Description
1
TX+
Transmit Data+
2
TX-
Transmit Data-
3
RX+
Receive Data+
4
N/C
Not Connected
5
N/C
Not Connected
6
RX-
Receive Data -
7
N/C
Not Connected
8
N/C
Not Connected
If conditions permit, please use this interface first to get better communication
stability.
Ethernet connection steps:
