Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide of 1500W CW laser
4.3 Power Connection
Before connecting the AC power supply, please check
whether the laser model and the AC power supply provided
are consistent with those listed in Table 3 or table 5.

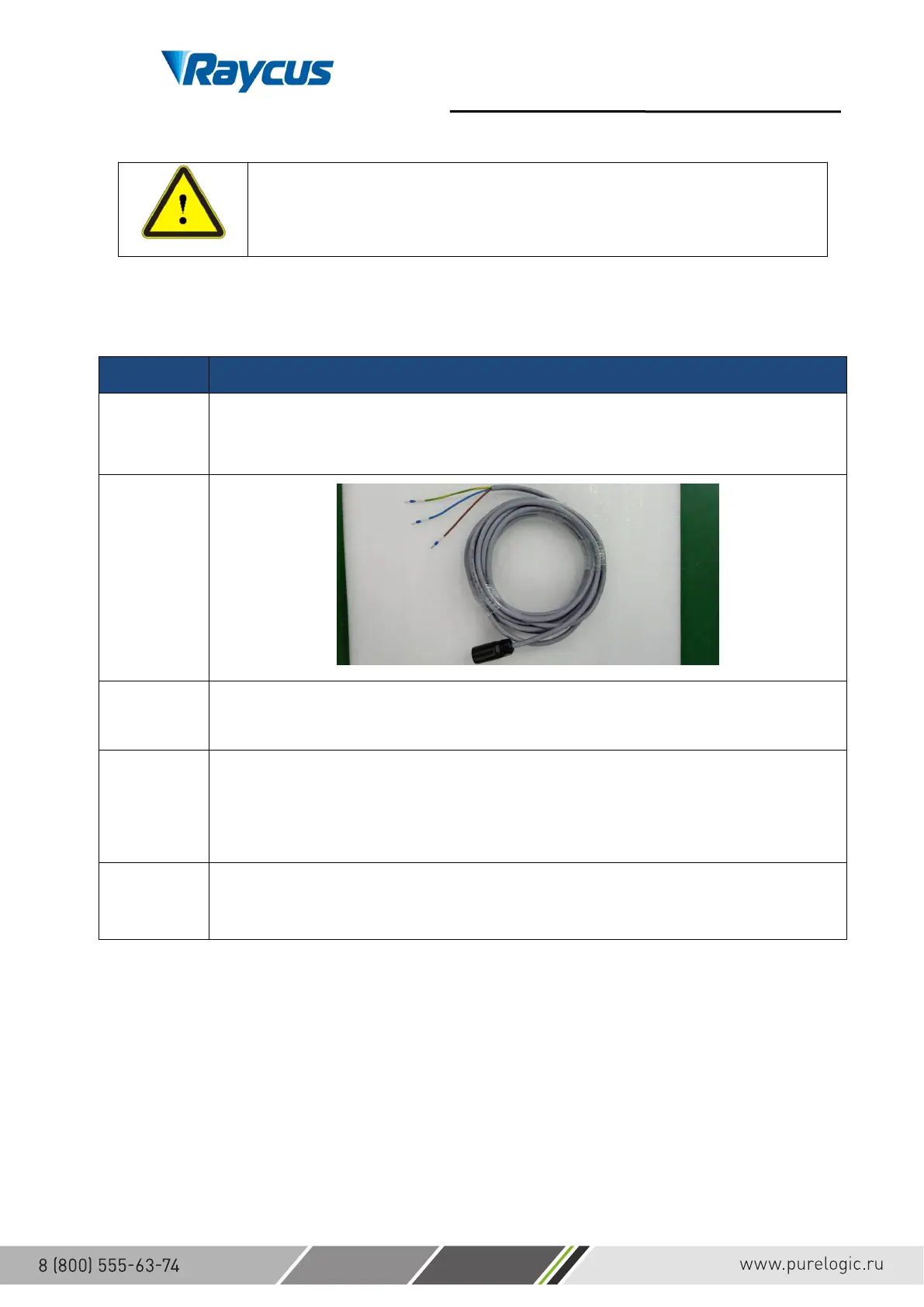

Table 7 Power connection requirements
Three strands, marked L, N and PE respectively
L
-
>Phase line (brown)
N ->Neutral (blue)
PE->Protective earth wire (yellow green)
Insert the plug at the end of the power cord into the socket marked "AC INPUT"
on the rear panel. Note that the plug has anti-reverse connection function. After
plugging it in, lock it with a lock.
4.4 Interface definition
4.4.1 Control interface
Figure 7 shows the DB25 control interface diagram:
