User Guide of 1500W CW laser

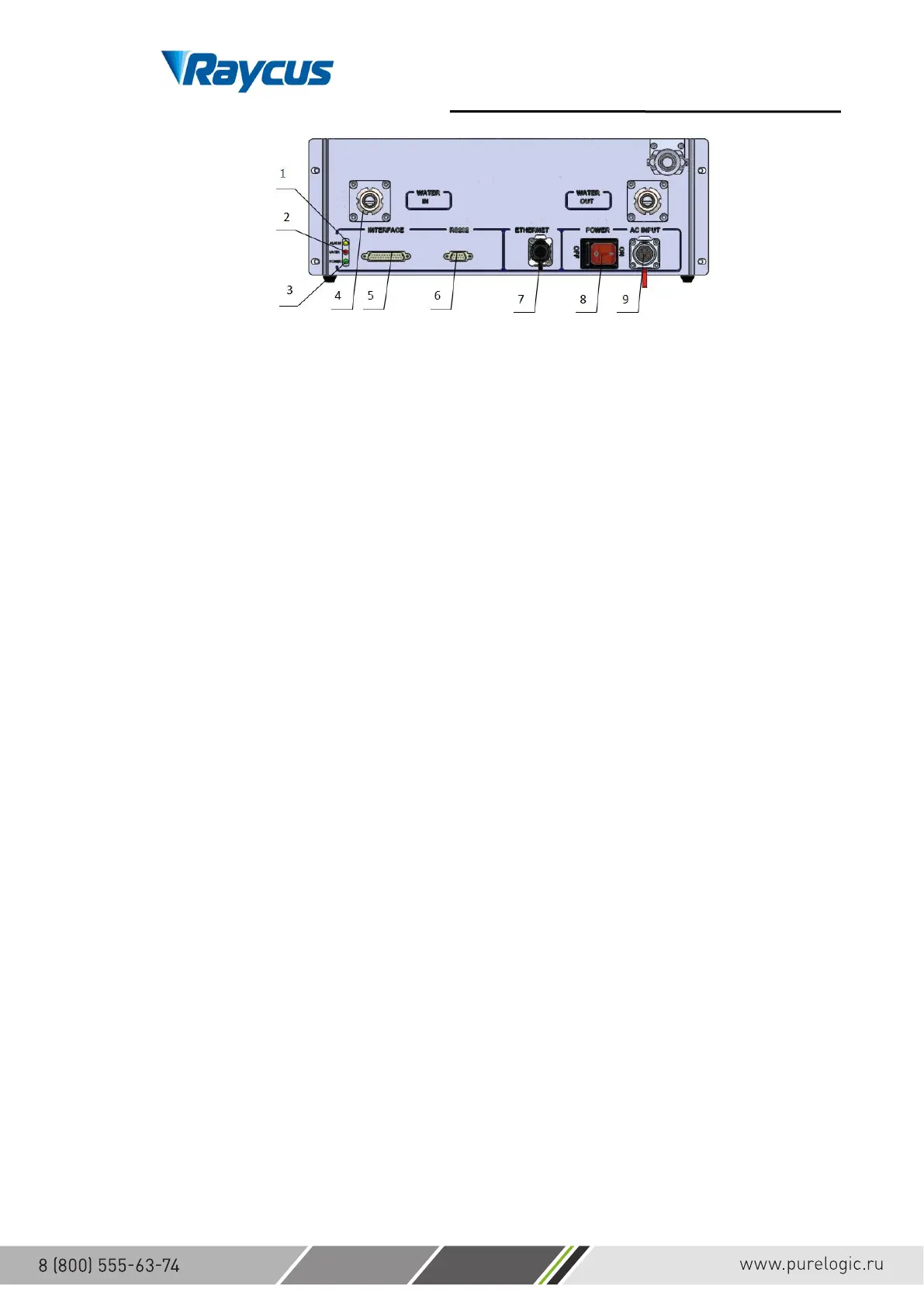

Figure 6 RFL-C1500 laser real panel
1.
Alarm
：
Laser fault indicator
2.
Laser
：
Laser output indicator
3. Power：Power Indicator, indicates that the power is switched on when the LED
illumines.
4. Water pipe joint: Pagoda joint, insert the quick-plug water pipe with an outer
diameter of 16 into the pagoda head and fasten it with a clamp to connect the
laser to the circulating cooling water.
5. Interface：Laser external control interface, see [4.4 Interface and Definition]
6.
RS232
：
232 serial interface for communication between laser and host
computer.
7. ETHERNET：Ethernet interface for communication between laser and upper
computer.
8. Power: Rocker switch for turning on the laser's main power.
9. AC INPUT：220V Power line input
