Chapter 6: Fishfinder application 85
To open the fishfinder setup menu
1. Make a fishfinder window active.
2. Press and hold the PAGE/MENU button.
3. Select Fishfinder Setup.

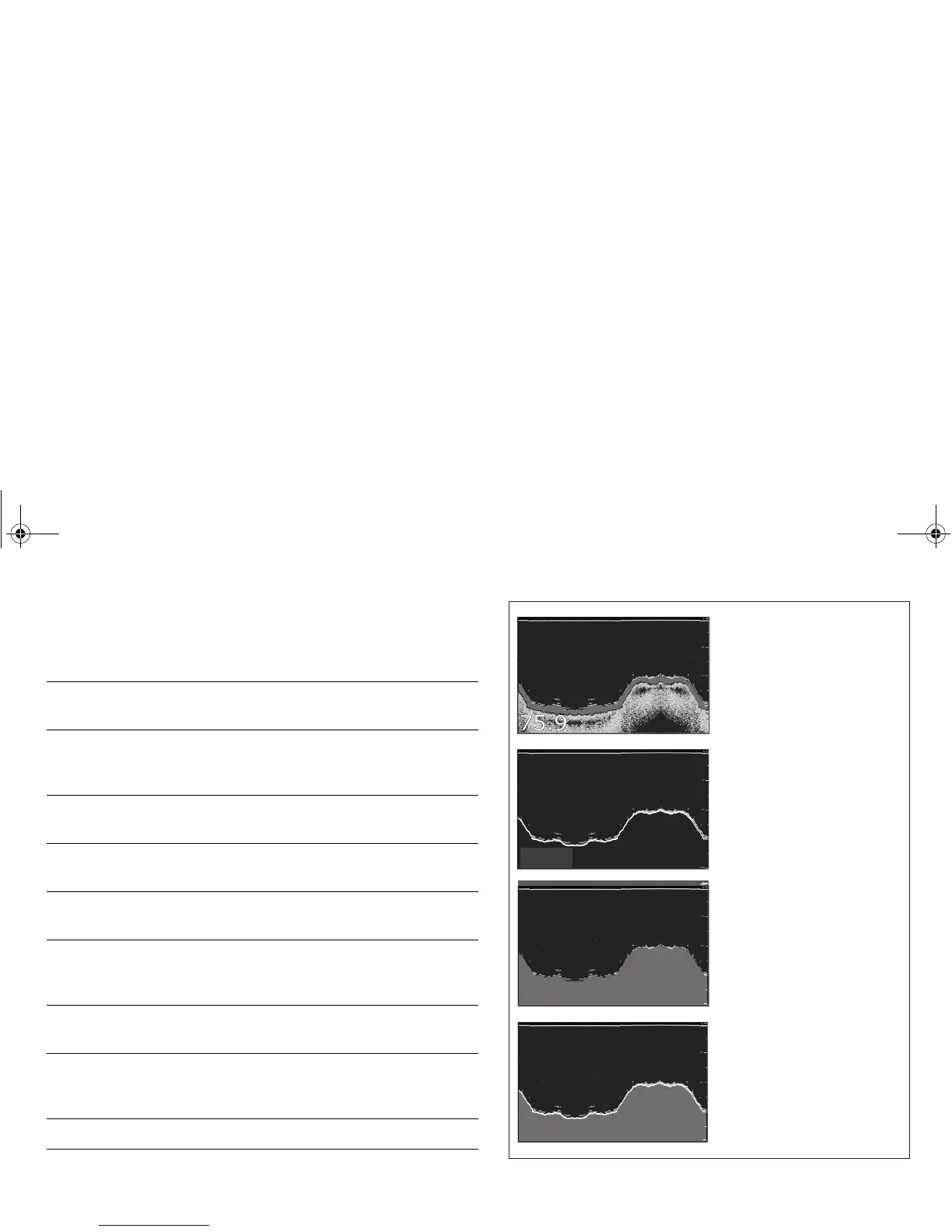

Example display settings
Option
Available
settings
Depth digit size Small
Medium
Large
Depth Digit Position Top
Bottom
TargetDepth ID
Display depth readings for identified objects.
On
Off
Depth Lines
Horizontal lines indicating depth
On
Off
White Line
A white line along the contour of the sea bottom. This
helps to distinguish objects close to the sea bed.
On
Off
Bottom Fill
Solid color fill for the sea bottom.
On
Off
Color Palette Night mode
Plus a number of other
palette options.
Manual Scroll speed 100% to 10%
75.9
ft
100
75
200 kHz: Auto
Gain: Auto High
75.9
ft
100
75
200 kHz: Auto
Gain: Auto High
75.9
ft
200 kHz: Auto
Gain: Auto High
75.9
ft
75
200 kHz: Auto
Gain: Auto High
D6833-3
Standard fishfinder image
The standard fishfinder image displays the
bottom as a combination of features (mud,
sand, fish targets etc) with various sonar
signal strengths.
White line
When this feature is applied, a white lIne
is drawn along the bottom (as defined by
the digital depth value) and the detail
below the bottom removed.
Fish near the bottom can now be seen
more easily.
Bottom fill
When this feature is applied, the detail
below the bottom is removed and
replaced by a single contrasting color.
The bottom is now clearly defined and the
fish near the bottom can be seen more
easily.
White line and bottom fill
When both White Line and Bottom Fill
are applied, the bottom is defined by a white
line and the detail below it replaced by a
single contrasting color.
Both the bottom and fish near the bottom
are now clearly defined.
