TYPE 100/300 Operation and Installation Handbook
5. Make sure that the bracket remains vertical and tighten the two
locating bolts.
6. Rotate the girdle support bracket so that the spring locator pin is
facing forwards.
7. Position the stern drive actuator so as to locate the fixed support
pin on the girdle support bracket into its location hole in the girdle
tube.

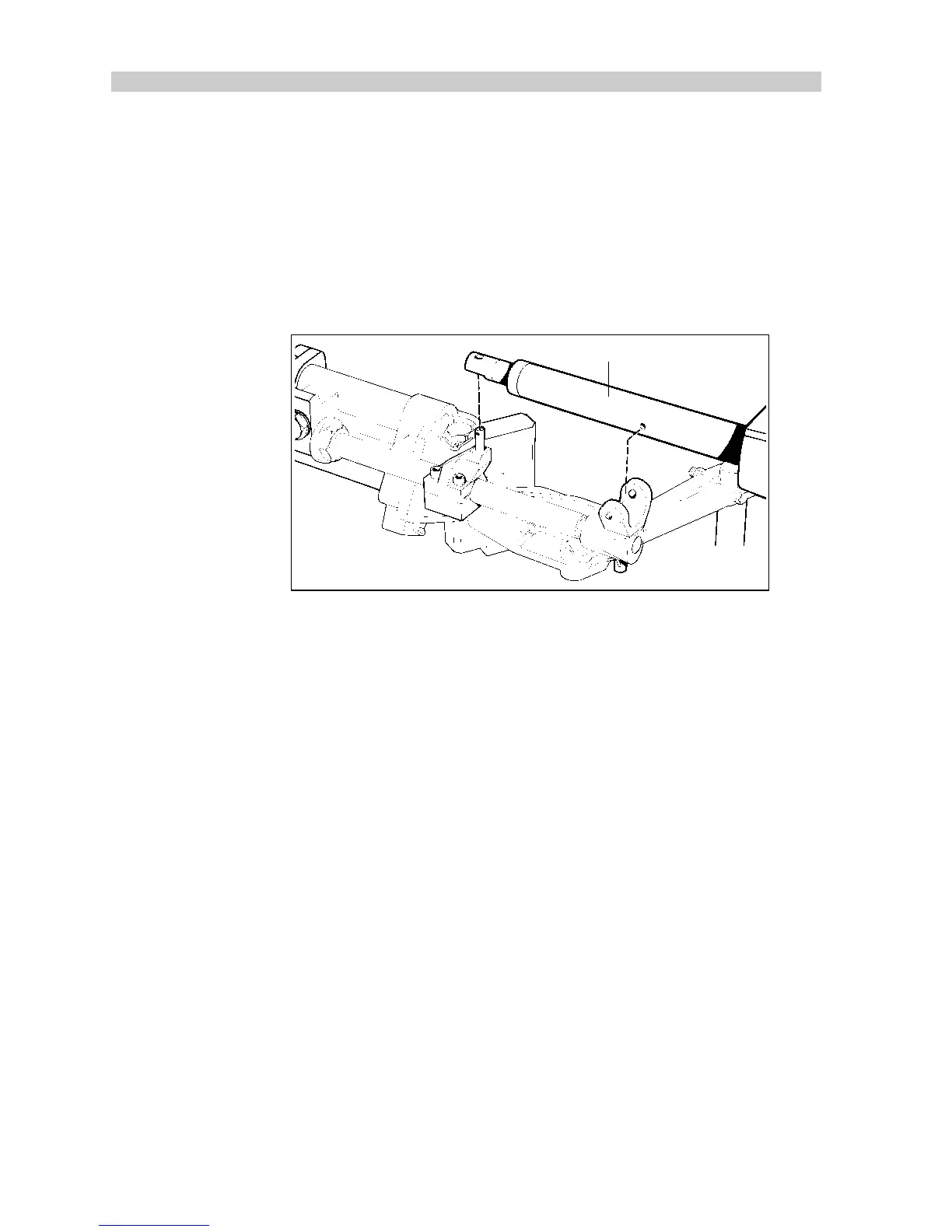

Girdle tube
D1002-1
8. Carefully twist and lower the actuator in to the girdle support
bracket until the spring pin locates into the opposite side of the
girdle tube.
Note:
Both the solid and spring location pins must be fully engaged in
the actuator girdle tube; failure to do so will result in autopilot
failure.
9. Position the drive unit pushrod over the top of the adaptor pin and
secure with the safety clip.
10. Slowly turn the steering system from hard-over to hard-over.
Note: It is most important that the drive unit and the adaptor pin
