ST50 J&s Depth Operation and installation Handbook Chapter 4: Operaibn
A 7 ncLJ Ltd...
-r.u VII~GC nGy
m m- .--

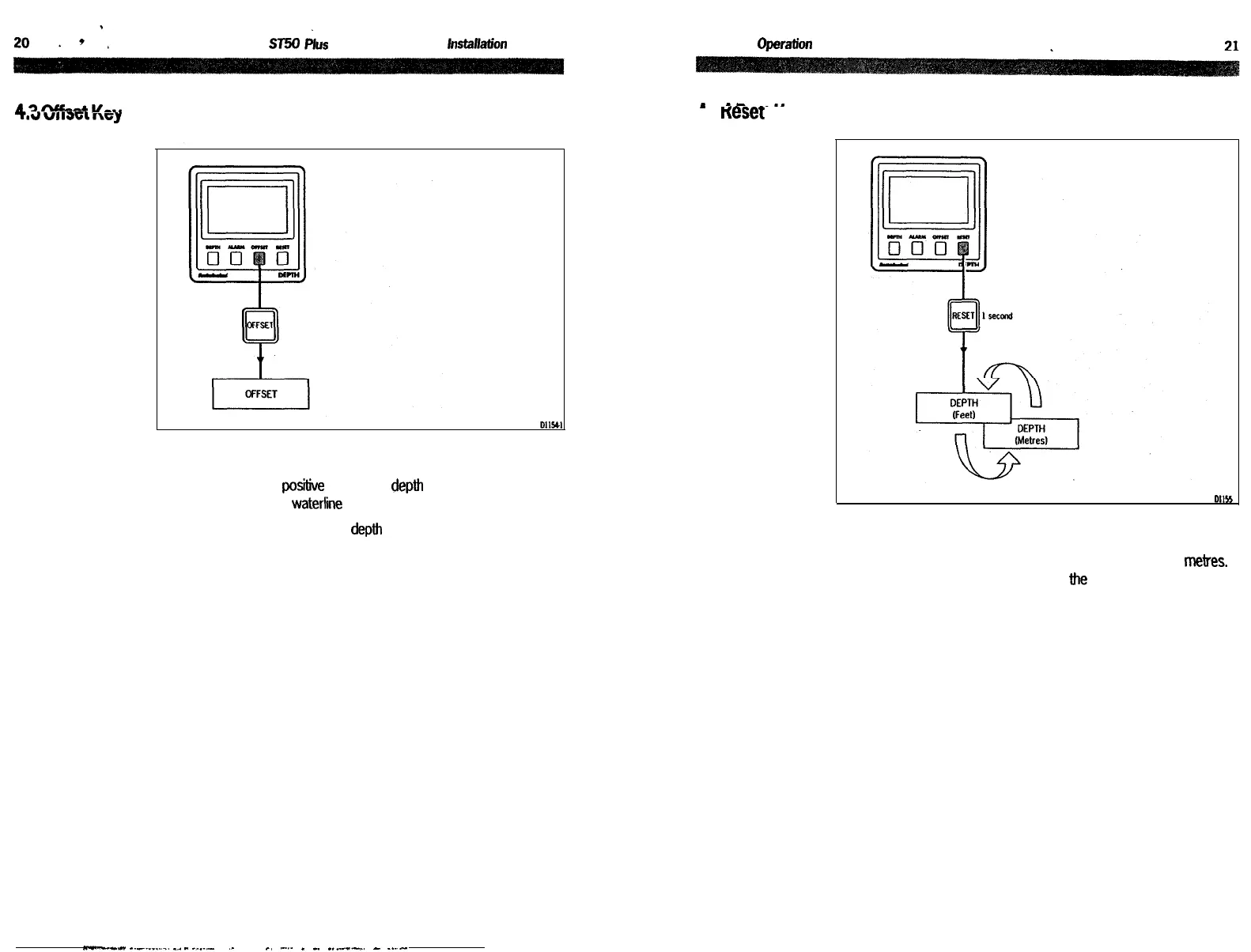

4.4 neset Key
Offset Key Notes
The off set value can be positive or negative: depih measured from the keel is
negative and depth to the waterline positive.
The offset display will return to water depth 8 seconds after the last key
press
Reset Key NotesReset Key Notes
This feature allows the depth uniis to be switched between feet and me&es.
However, the units can only be toggled when the current water depth is
displayed.
This feature allows the depth uniis to be switched between feet and me&es.
However, the units can only be toggled when the current water depth is
displayed.
et,55
m-- -._._...._. “,._ -..._
._ -. .-..- . -. -._.---. - _...I

Raymarine AUTOHELM ST50 PLUS DEPTH Specifications

Power

power supply	10 to 16 V
power consumption	100 mA
illumination levels	3 levels plus off

Operating Environment

temperature range	0 to 70 °C
shallow alarm	10 to 400 feet (3 to 120 metres)
deep alarm	0 to 600 feet (0 to 180 metres)

Weight and Dimensions

dimensions	110x110 mm (4.33x4.33 in)
depth	0 to 600 feet (0 to 180 metres)
minimum depth	3 to 33 feet (1 to 10 metres)
