•AlwaysmakesurethatPC’sorothersensitiveelectronicdeviceshaveadedicatedpowercircuit.
Cableshielding
Ensurethatcableshieldingisnotdamagedduringinstallationandthatallcablesareproperly
shielded.

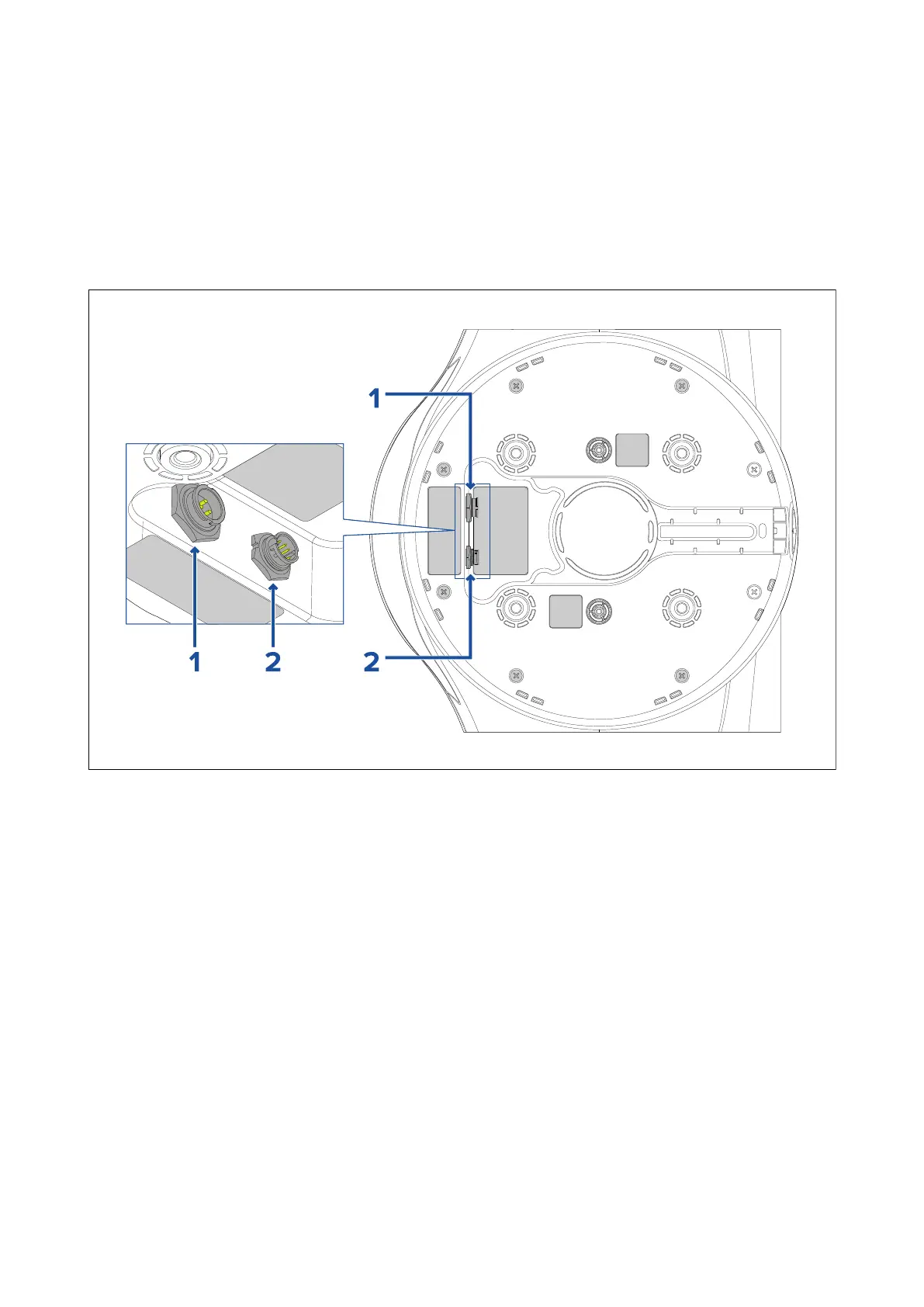

7.2Cycloneconnectionsoverview
TheCycloneOpenArrayRadarincludesthefollowingconnectors:
1.Powerconnector—ConnectstotheCyclonepowercable
2.RayNetconnector—Connectstoa(RayNet)Radardatacable
7.3Cableroutingoptions
Y oucanroutethepowercableanddatacableawayfromtheradarindifferentways.
Theroutingoptionsallowforthecabletoexittheradarintwodifferentpositions—theoptionyou
choosewilldependontheradarmountinglocation.
1.Rearcableexit—iftheradarismountedonanextendedflatsurface,andthecablecannotbe
routedthroughthesurface.
2.Surfacecableexit—iftheradarismountedonaflatsurface,andthecablecanberouted
throughthesurface.
Cablesandconnections39
