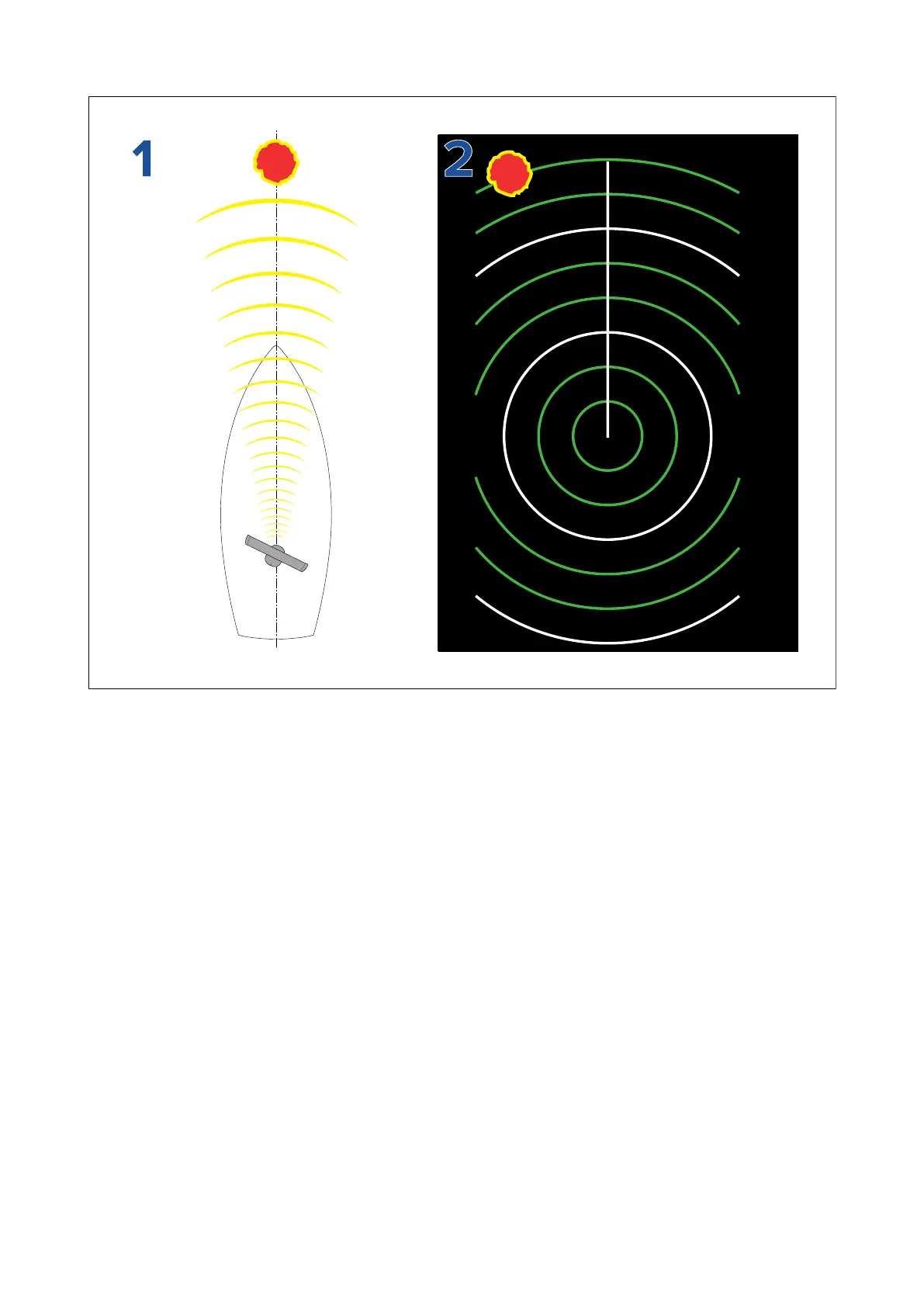

ExamplemisalignedRadar
1.Targetobject(suchasabuoy)deadahead.
2.TargetdisplayedontheRadardisplayisnotalignedwiththeShip'sHeadingMarker(SHM).
Bearingalignmentisrequired.
Checkingthebearingalignment
1.Withyourvesselunderway:AlignthebowwithastationaryobjectidentifiedontheRadardisplay
Anobjectbetween1&2NMdistantisideal.
2.NotethepositionoftheobjectontheRadardisplay.Ifthetargetisnotundertheshipsheading
marker(SHM),thereisanalignmenterrorandyouwillneedtocarryoutbearingalignment
adjustment.
Adjustingthebearingalignment
TheseinstructionsapplytomultifunctiondisplaysrunningLightHouse™3software.
Onceyouhavecheckedthebearingalignmentyoucanproceedandmakeanyrequiredadjustments.
Withtheradarappdisplayed,adjusttheBearingalignmentsettinguntilthetargetobjectappears
undertheSHM.
BearingalignmentsettingcanbeaccessedfromtheInstallationtab:Menu>Installation>Bearing
alignment.
