17.3Traditionalsonartechnology

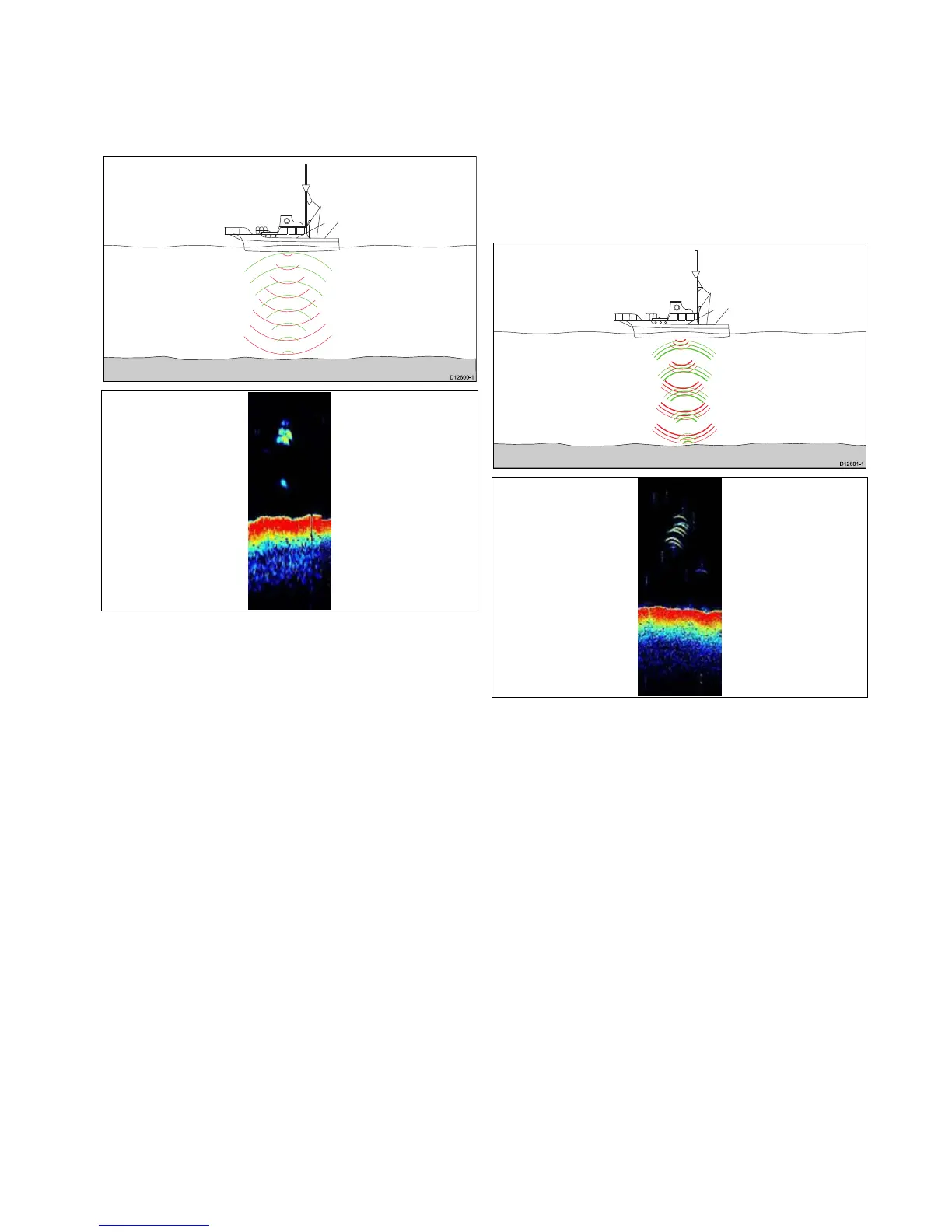

Traditionalsoundersuseasinglecarrierfrequencyorcarrier
waveforthesonarping.Thesesoundersworkbymeasuring
thetimeittakesthepingechotoreturntothetransducerto
determinetargetdepth.Usingthismethodif2targetsareclose
togethertheycanbeshownasasinglelargetarget,ratherthan
multiplesmallertargets
D12 60 0-1
17.4BroadbandCHIRPsonar
technology
Broadbandsonarsuseasweptfrequency'CHIRP'signalwhich
candistinguishbetweenmultipleclosetargets,thisenables
thesonartodisplaymultipletargetsinsteadoflargecombined
targets.
Someofthebenetsareimproved:
T argetresolution.
Bottomdetectioneventhroughbaitballsandthermoclines.
Detectionsensitivity.
D12 60 1-1
Fishnderapplication
185
