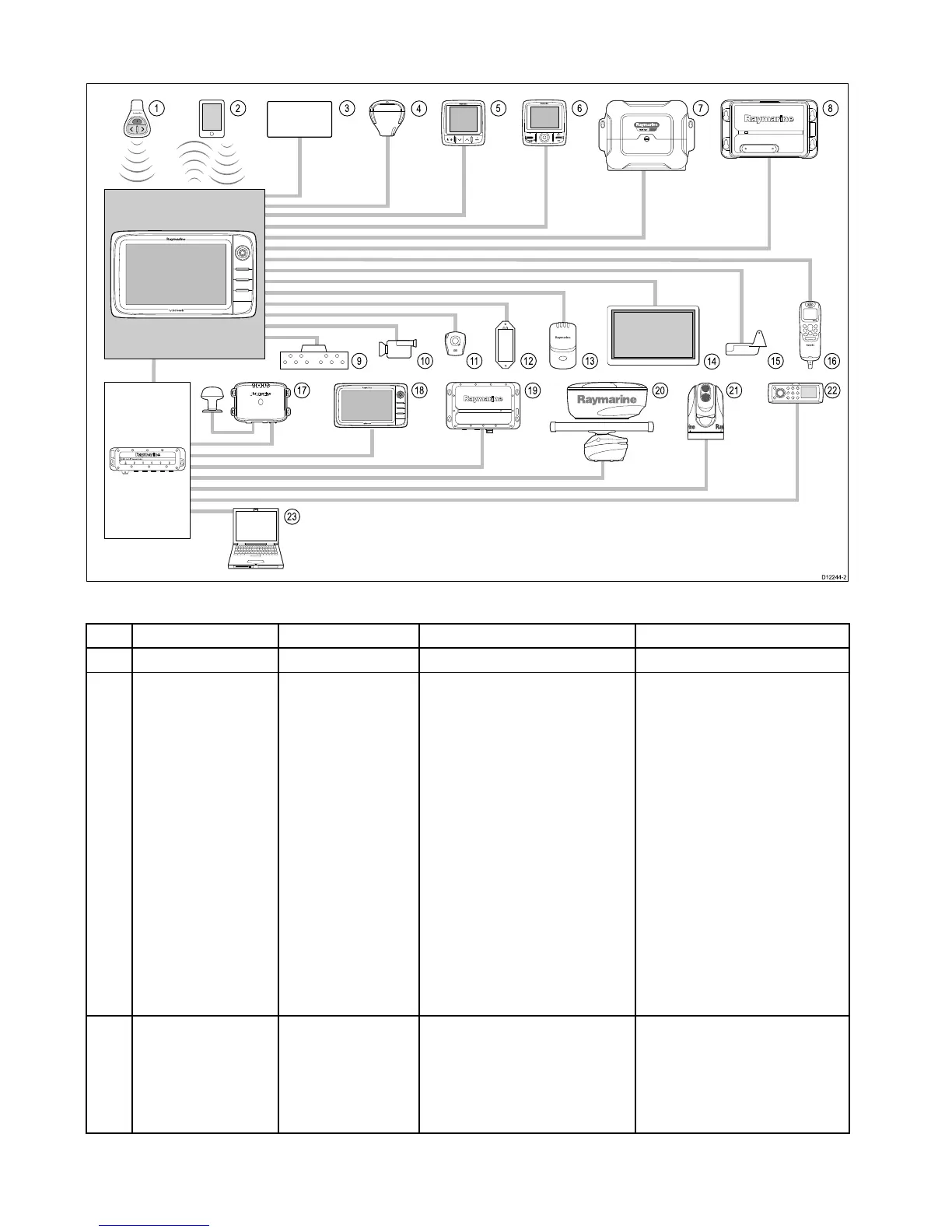

3.1Systemintegration
Yourmultifunctiondisplayiscompatiblewithawiderangeofmarineelectronicsdevices.
RAY240
1 2 8
5 6
73
16
109 11 12 13 15
4
1817
19
20
21 22
23
D12244-2
SMARTPILOT
14
Thedisplayusesanumberofprotocolstotransferdatabetweenthevariousdevicesinyoursystem.Thefollowingtabledetails
whichdevicesmaybeconnectedtoyourdisplay,andthetypeofconnections(intermsofprotocolsandphysicalinterfaces):
ItemDeviceTypeMaximumquantitySuitableDevicesConnections
1Remotecontrol
1permultifunctiondisplay.RaymarineRCU-3
Bluetooth
2
Smartphone/Tabletdevice1permultifunctiondisplay.
ForRaymarinewirelessvideostreaming
andremotecontrolapps:
•AppleiPhone4(orlater)oriPad2(or
later)
•Androiddevicewithminimum1GHz
processorandrunningandroid2.2.2(or
later)
•AmazonKindleFire
ForchartplottersyncwithNavionics
Marineapp:
•AppleiPhoneoriPad.
•Android-compatiblesmartphoneor
tablet.
Formediaplayercontrol(NeweSeries
only):
•AnyBluetooth-enableddevice
supportingBluetoothAVRCPversion
2.1orhigher.
•ChartplottersyncwithNavionics
Marineapp:Wi-Fi.
•Videostreamingandremotecontrol:
Wi-Fi.
•Mediaplayercontrol:Bluetooth
AVRCP2.1orlater.
3Vesseltanksensors—
third-party
•Upto3xfuel.
•1xfreshwater.
•1xwastewater.
•1xsewage.
•1xbait/sh.
Third-partyNMEA2000interfaces.NMEA2000(viaoptionalDeviceNet
adaptorcables).
22
NewaSeries/NewcSeries/NeweSeries

Raymarine E70024 - e127 MFD Specifications

General

Display Size	12.1 inches
Display Type	LCD
Resolution	1280 x 800 pixels
Chartplotter	Yes
Radar Compatibility	Yes
Sonar Compatibility	Yes
Wi-Fi	Yes
Bluetooth	Yes
Waterproof Rating	IPX6
Video Input	Yes
Touchscreen	Yes
Built-in GPS	Yes
Networking	NMEA 2000
Cartography	Navionics, C-MAP
Operating Temperature	-15°C to 55°C
Storage Temperature	-20°C to 70°C
Dimensions	330 x 210 x 60 mm
Weight	3.2 kg
GPS Receiver	Built-in 50 channel
