8 ST70+ User Reference Manual

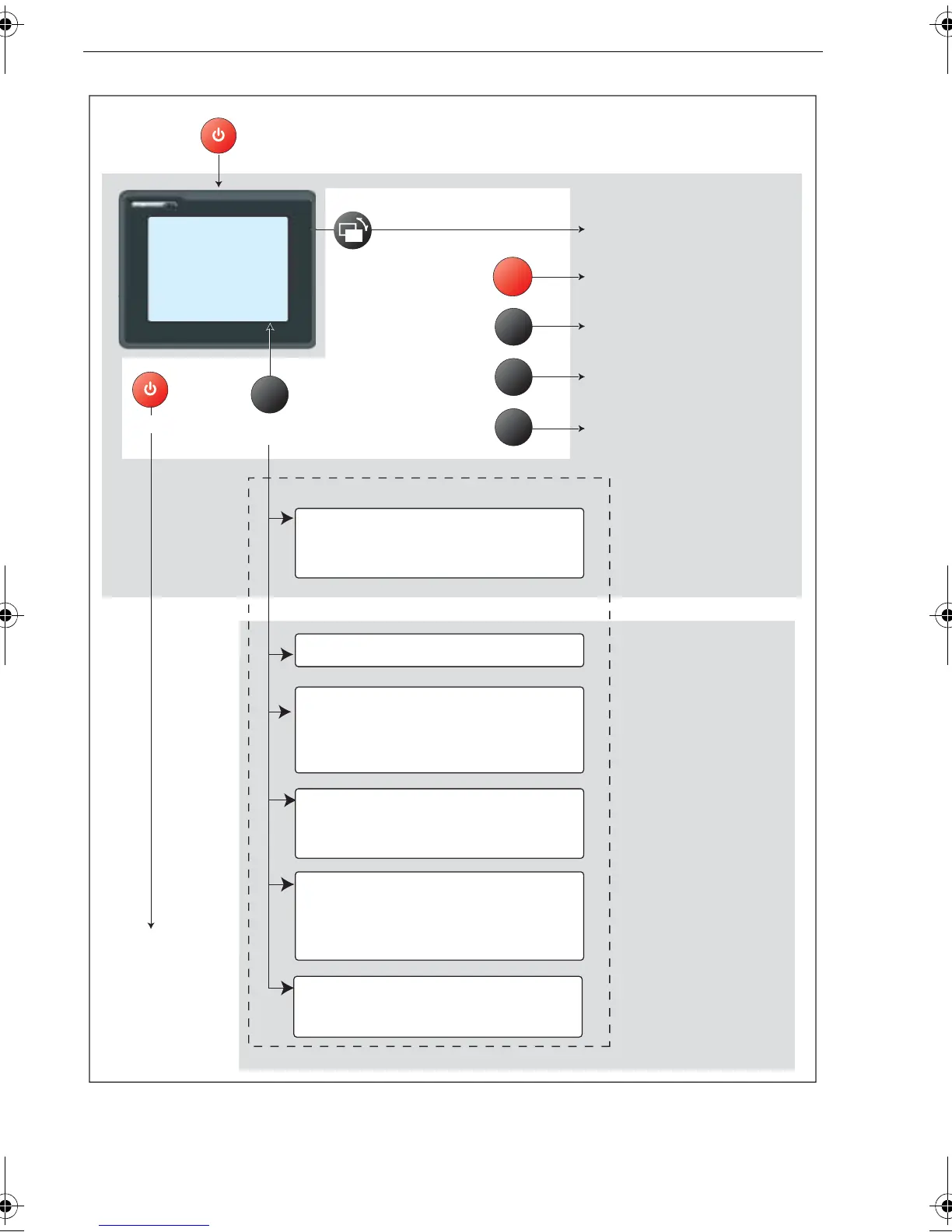

Figure 1-3: Generic Pilot Controller functions
Count down to
POWER OFF
ADVANCED OPTIONS
POWER ON
Select next Pilot
Controller in group
Select Standby mode
(you have manual control)
MENU
Normal Operation
STANDBY
Select Auto mode
(autopilot steers to locked heading)
AUTO
Select Track mode
(autopilot tracks to preset course)
TRACK
Carry out Dodge manoever
(manually steer round an obstacle)
DODGE
PILOT VIEW
RESPONSE LEVEL
DIAGNOSTICS
DISPLAY SETTINGS
Hold down
Hold down to cycle to
different pilot view
Press & release to
select Main menu
User setup
* also part of initial setup
Hold down
D11136-1
Plain
2D
3D
Profile dependent options for:
Fishing boat
Power boat
Sail boat
Time & Date setup*
Brightness setup
Colors (day/night options)
Units setup*
Response setup
Data box setup
Setup Wizard
Transducer Setup
Set Language*
Set Vessel Type*
Set Ground Wind
Set Variation
Select Boat Show Mode
Factory Reset
About Display
Self Test
The pilot view at switch
on, is same as when
Pilot Controller last
switched off
Press & release
Keypad functions
Main menu
