Chapter 2: Commissioning Procedures 27

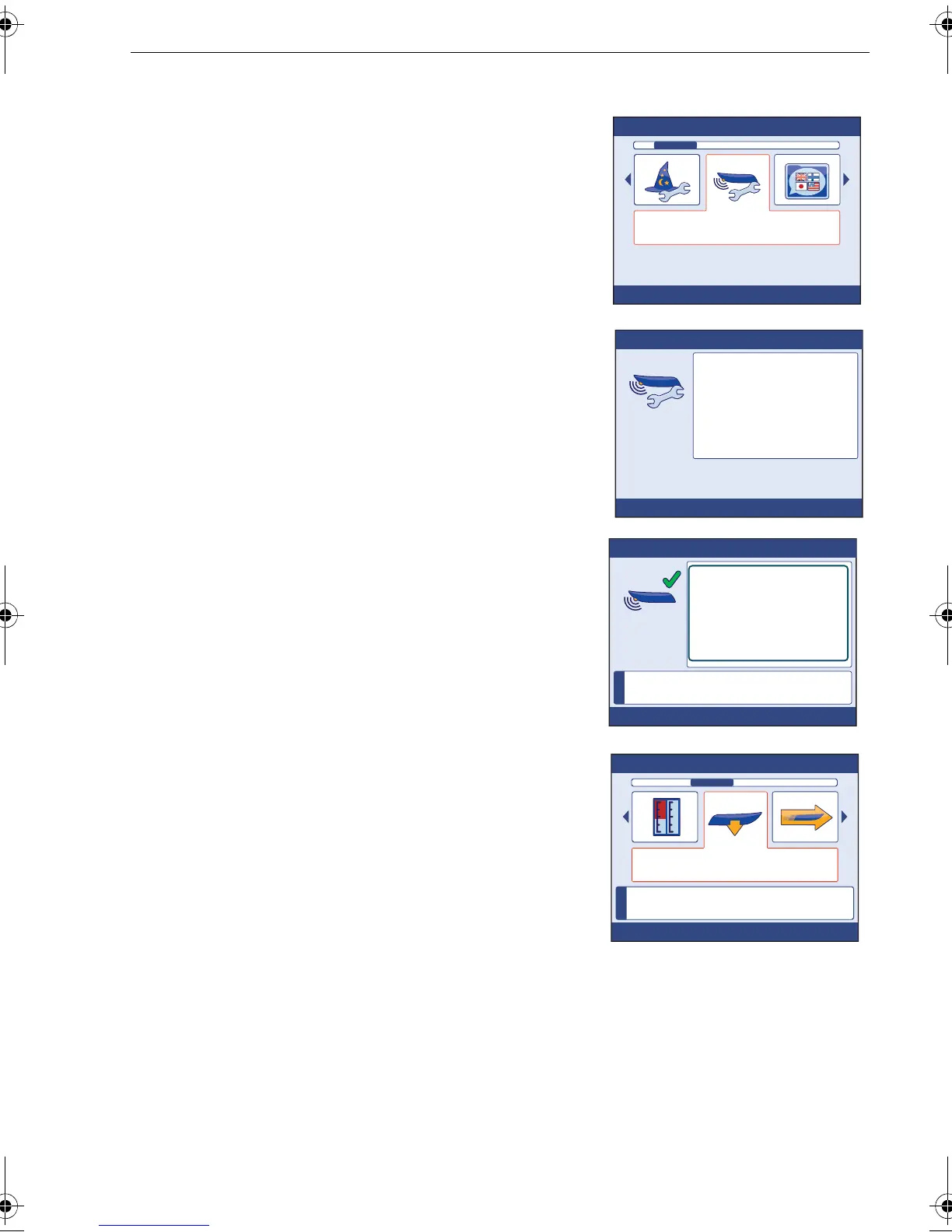

To access the required transducer:
1. With any operational Instrument page
displayed, press MENU to display the Main
Menu .
2. Scroll to
Advanced Options , then press OK
3. At the Advanced Options menu, scroll to
Transducer Setup .
4. Press
OK to display the Transducer setup start
search page.
5. Press
OK again to initiate a system search for
transducers. At the end of the search, a
Search
results page is displayed.
6. With the search results page displayed, press
OK to access the Transducers found menu.
7. Set up the following:
• The correct Depth Offset, using the proce-
dure described under either Calibrating
conventional transducers or Calibrating
smart transducers as appropriate
• The correct Water Temperature using the
procedure described under either
Calibrating conventional transducers or Calibrating smart transducers as
appropriate.
• The Trim tabs (if applicable).
D11172-1
Advanced Options
Transducer Setup
Press OK to select
D11173
-
1
Press OK to continue
Transducer Setup
ST70+ will now
search the network
for transducers.
Press CANCEL to abort.
i
D11208-1
Press OK to continue
Search Results
If not correct, press CANCEL and
check connections.
1 Depth
1 Speed
1 Wind
0 DST800
0 DT800
1 Trimtabs
Found:
i
D11174-1
Transducers Found
Depth
Raymarine
Serial no.135260
Press OK to select
