PLUMBING—WATER CONNECTIONS
The heater has standard right-hand plumbing connections, but can be converted to alternate configurations as
shown below.
The loose parts bag contains the pieces needed to
connect your plumbing to the heater, see page 9 for
list. Two options are recommended for the installer as
shown in the following images.
LOOSE PLUMBING PARTS SETUP
NOTE: Use appropriate CPVC or CPVC to PVC
transition primer and glue for attachments.
STANDARD RIGHT-HAND CONNECTIONS LEFT-HAND CONNECTIONS
LEFT-IN / RIGHT-OUT CONNECTIONS RIGHT-IN / LEFT-OUT CONNECTIONS

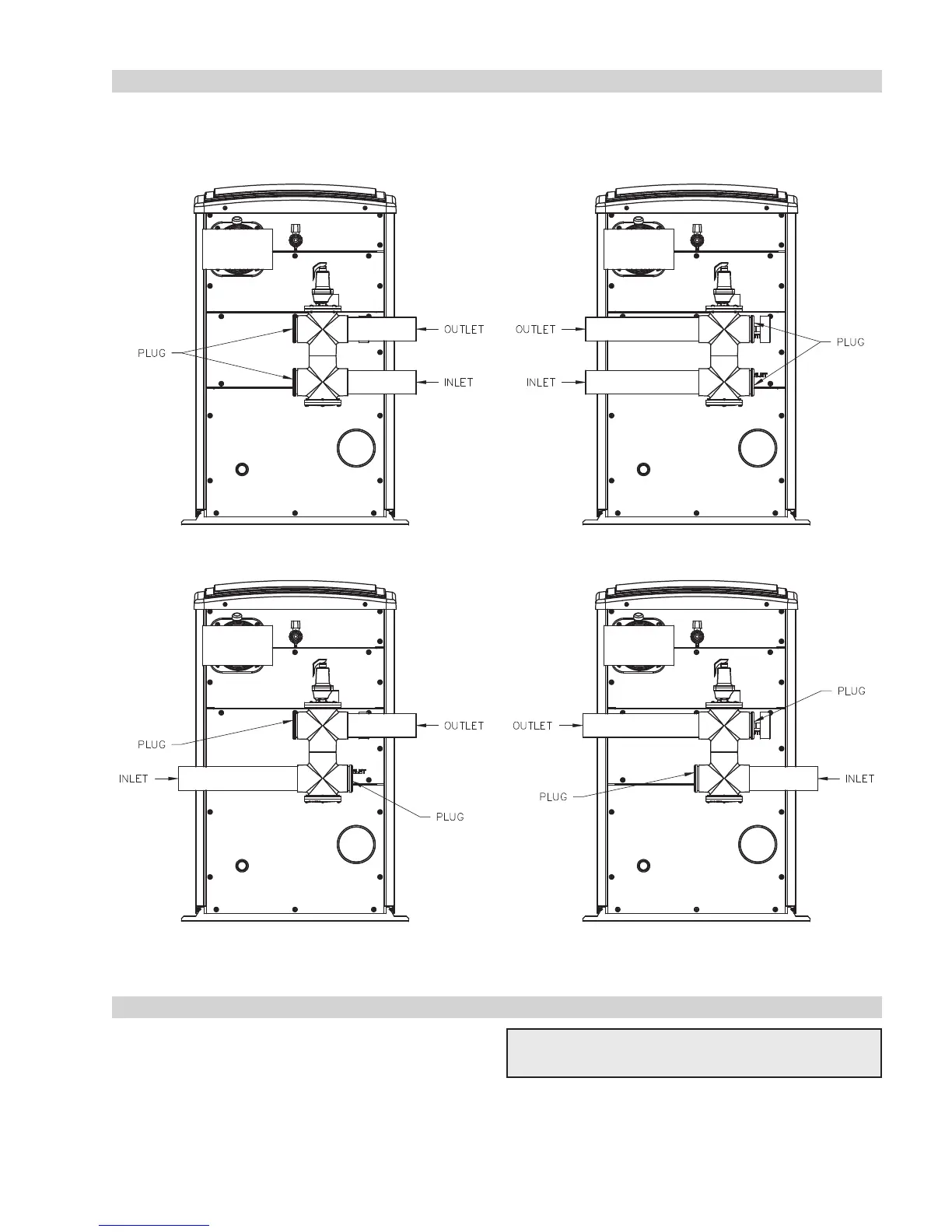

Fig. 20: Water Connection Configurations
