RayTek MI3 - Comm Box (DIN 6 TE, analog) Terminal Wiring

Installation
34 Rev. G Nov/2015 MI3

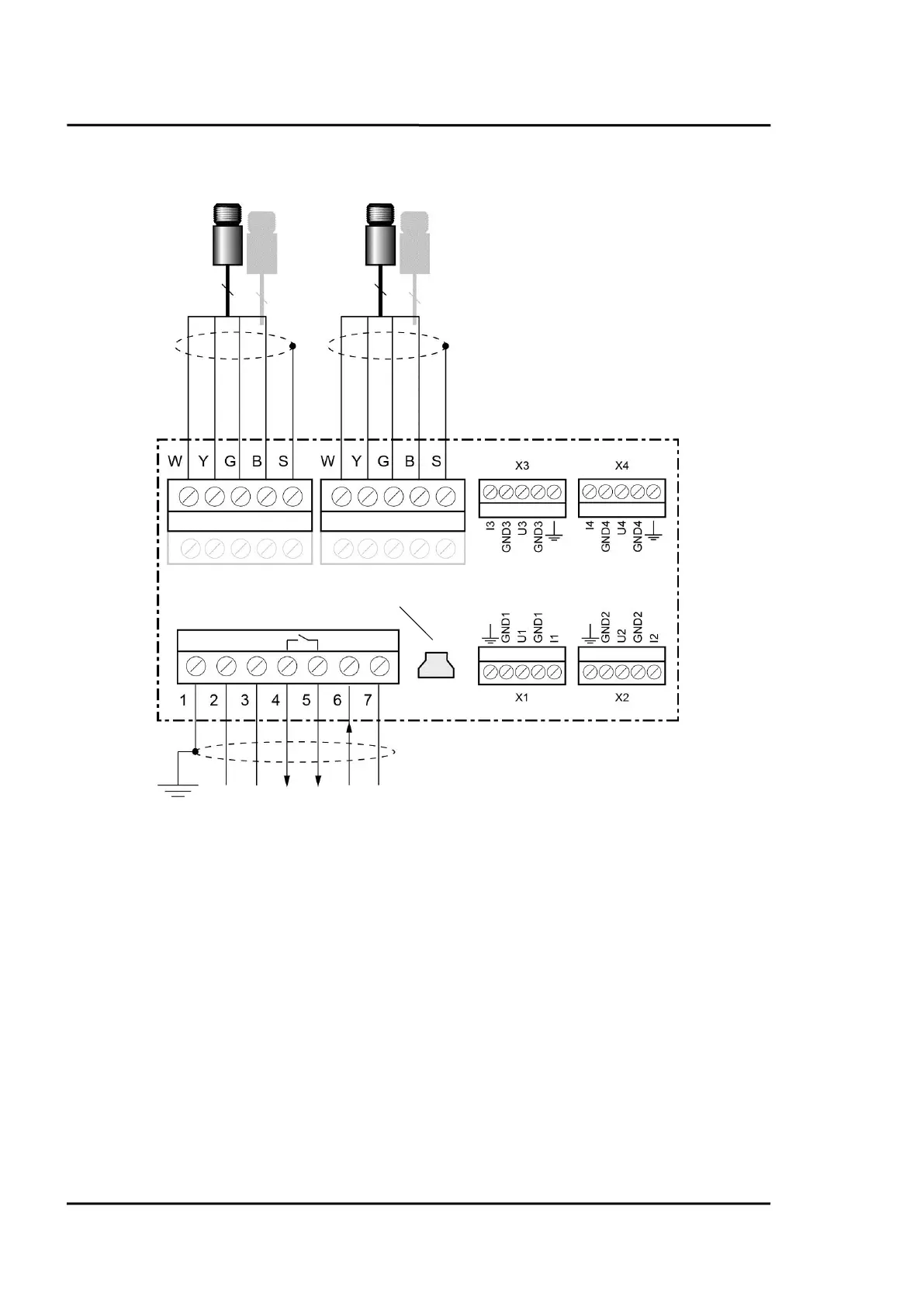

Figure 19: Terminal Wiring for the Comm Box DIN 6 TE, analog
see section
6.3
Analog Outputs OUT1 - OUT4,
page 41.
Analog Outputs
RELAY
Sensing
Heads
GND
FTC3
8 - 32 V
Shield
GND
RELAY
shield
green
white
yellow
brown
shield
green
white
yellow
brown
USB Connector, Mini-B
