Accessories
72 Rev. G Nov/2015 MI3

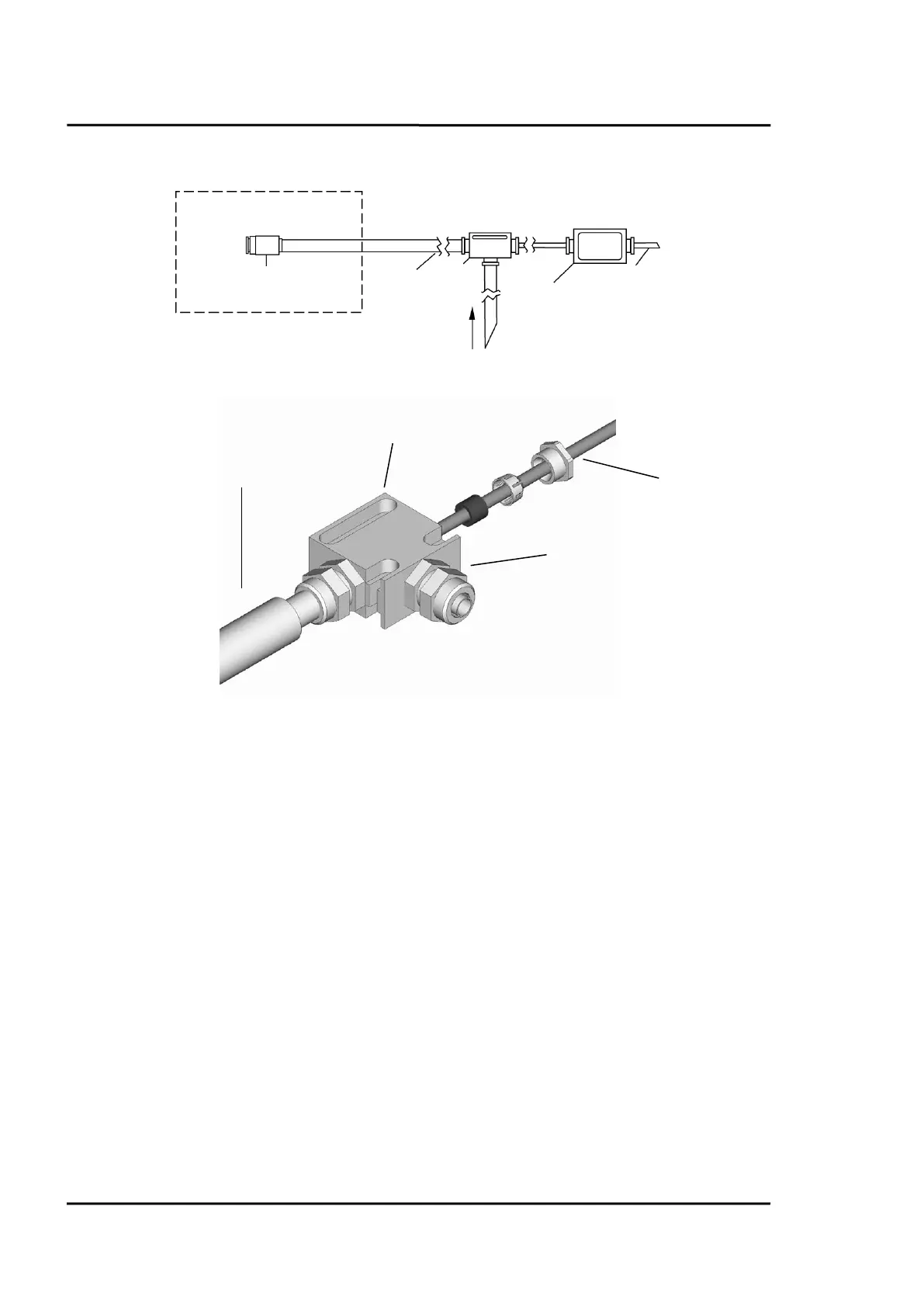

Figure 58: Air Cooling System (XXXMIACCJ)
Figure 59: Connecting the T-Adapter
max. ambient 200°C (392°F)
Sensing Head
max. ambient 50°C (122°F)
Air Hose
T-
Adapter
Box
Cable
Air cooling (max. 35°C / 95°F)
Hose to
sensing head
T-Adapter
Cable to box
Fitting free for air connection
Hose:
inner
Ø: 9 mm (0.35 in)
outer Ø: 12 mm (0.47 in)

RayTek MI3 Specifications

General

Spectral Response	8 to 14 µm
Response Time	500 ms
Display Resolution	0.1 °C
Accuracy	±1% or 1°C (2°F), whichever is greater
Emissivity	Adjustable 0.10 to 1.00
