RayTek MI3 User Manual

Accessories
74 Rev. G Nov/2015 MI3

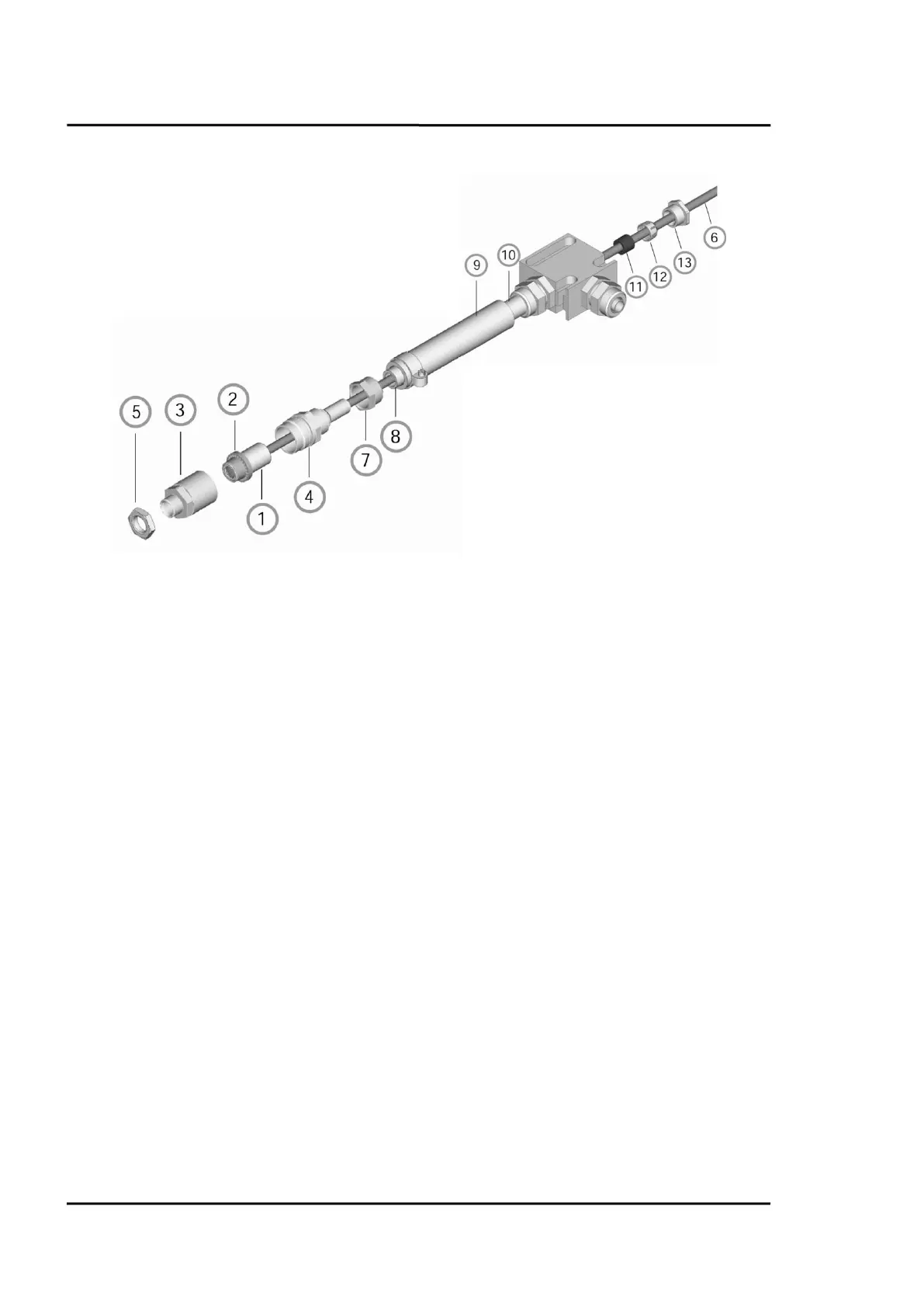

Figure 61: Air Cooling System: Purging Jacket and T-Adapter
The Air Cooling System consists of:
① sensing head
② inner plastic fitting (air purge jacket)
③ front part of the air-purging jacket
④ back part of the air-purging jacket
⑤ mounting nut
⑥ preinstalled cable between sensor and box, leading through the T-adapter
⑦ hose connecting nut
⑧ inner hose
⑨ outer hose
⑩ T-adapter
⑪ rubber washer
⑫ plastic compression fitting
⑬ cap

RayTek MI3 Specifications

General

Spectral Response	8 to 14 µm
Response Time	500 ms
Display Resolution	0.1 °C
Accuracy	±1% or 1°C (2°F), whichever is greater
Emissivity	Adjustable 0.10 to 1.00
