1.1.2 STD 22 Compact Gyro Compass optional features
1.1.2.1 Quick Settling operator unit
The “Quick Settling” function reduces the time the compass requires to settle to
approximately one hour.
The most recent heading is stored when the gyro compass is switched off. When it is
switched on the compass uses that value to make a default setting so that the settling
time is reduced.
The Quick Settling function can only be used if the ship‘s
heading has not been changed between swiching off and
swiching on again.
The Quick Settling function cannot
be used:
-- During the first setting into operation (after installation).
-- If ship’‘s heading has been changed after switching off
and switching on again.
Running
Set
Illuminated push button
“Quick Settling ON”
Quick Settling

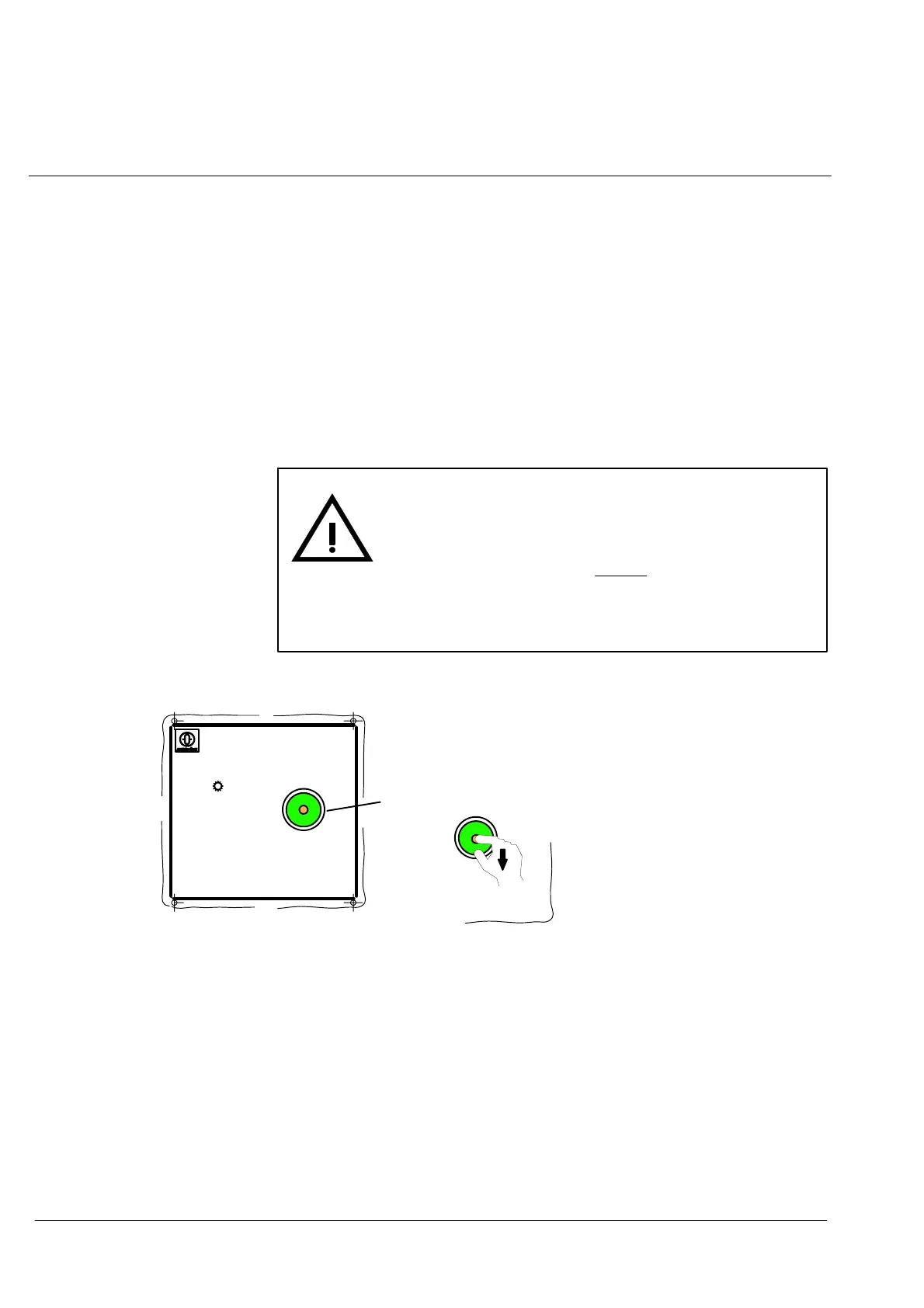

Figure 3 : Controls and indicators on the Quick Settling Control Unit
The “Quick Settling ON” button → activates this function.
→ Flashes if it is possible to activate this function.
It flashes for maximum 3 minutes.
→ Illuminates if the Quick Settling function is active.
Installation and assembly instructions are in the Service section of this manual.
