Operator manual

Compass

STD 22

110--233

STD22 Compact and STD22

3646/110 --233.DOC010102

Edition: May 20, 2005

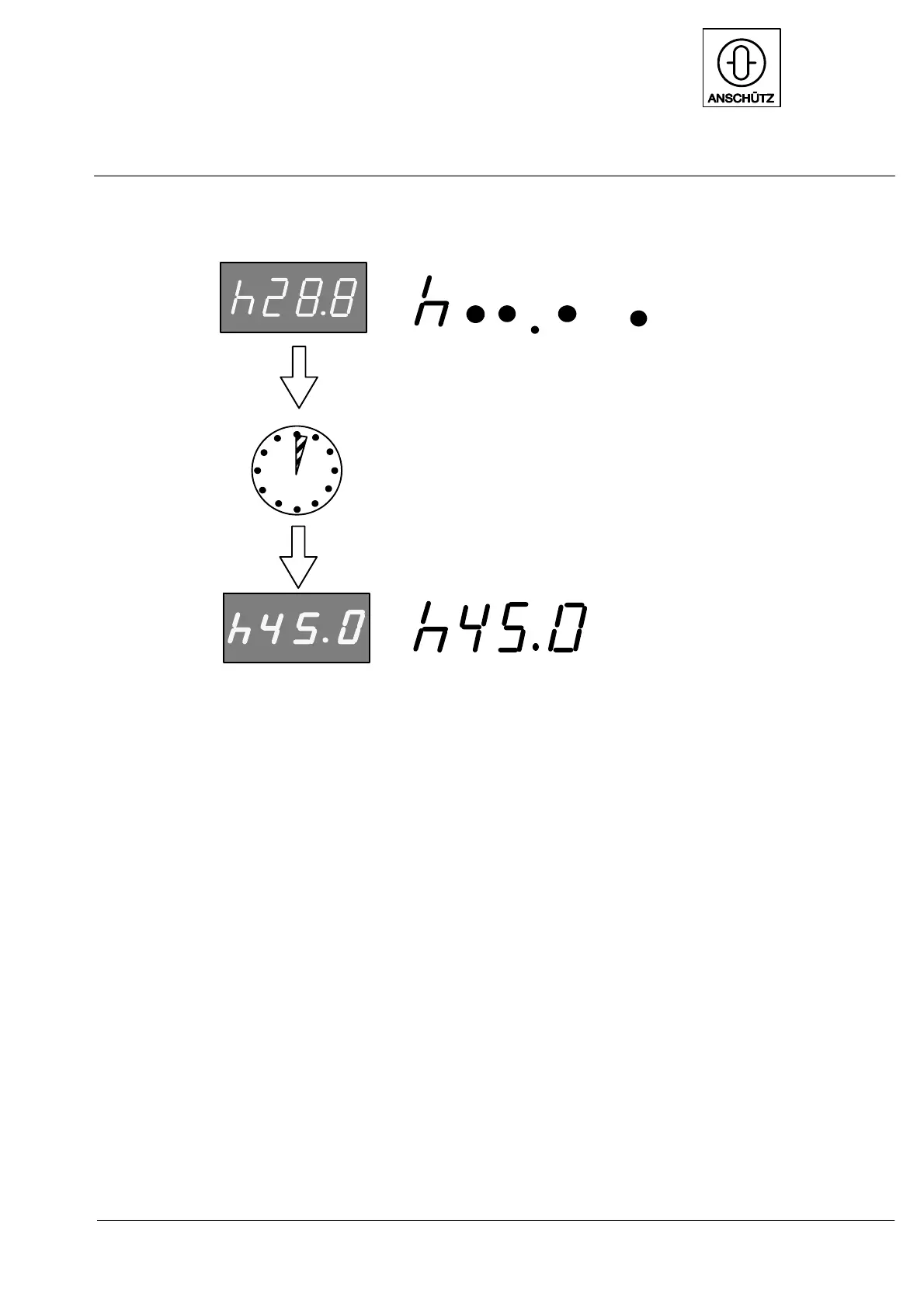

2.1.1 Indications on the compass during the heating stage

h=heating

= current temperature

approx. 30 minutes until a temperature of

45 ° C has been reached

The temperature for the internal

follow up system to switch on has

been reached.

Figure 10 : Indications during the heating stage
