Raytheon Anschütz STD 22 Compact GYRO COMPASS User Manual

Operator manual
110--233
STD22 Compact and STD22
8
3646/110 --233.DOC010102 Edition: Feb. 17, 2006
1.2 STD 22 Gyro Compass
In this application the gyro compass is operated on a bus system (CAN bus). With this
application there are more extended options for connecting external equipment, and
considerably more course receivers can be operated.
This application needs to be equipped with a minimum of a type 130-613 Operator Unit
and a type 138-118 Distribution Unit.
A magnetic sonde can be connected directly to the Distribution Unit.
259.8
Operator Unit
Type 130-613
8 x heading
(course bus
or NMEA)
(12x E10)
3xstep
1 x rate of turn
1 x printer (RS232)
Gyro compass
CAN--bus
Distribution unit
Type 138-118
Pulse Log
Pulse Log Direction
GPS Speed
GPS Position
Magnetic sensor
(option)
AC/DC converter
Type 121--062
18--36 V DC
or
24 V d.c.
115--230V AC
108--010
DV--bus*
* At a Distribution Unit with a
DV--bus application no speed
and/or position inputs should
be made.

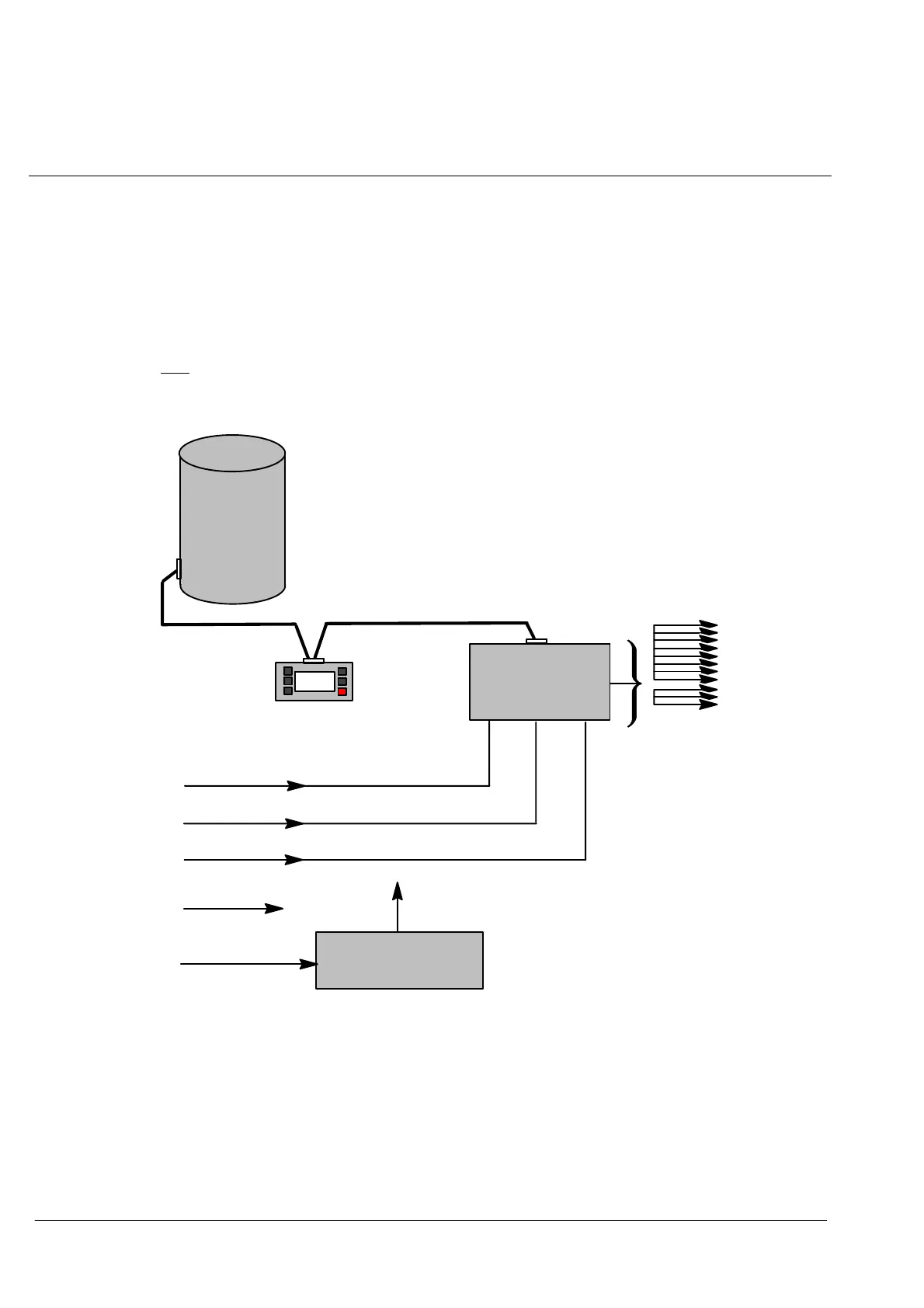

Figure 5 : STD 22 gyro compass

Raytheon Anschütz STD 22 Compact GYRO COMPASS Specifications

General

Brand	Raytheon Anschütz
Model	STD 22 Compact GYRO COMPASS
Category	Compass
Language	English
