Operator manual

Compass

STD 22

110--233

STD22 Compact and STD22

3646/110 --233.DOC010102

Edition: May 20, 2005

1.2.2 Optional features for the STD 22 Gyro Compass

1.2.2.1 AC/DC converter, 121-062

The AC/DC converter is supplied with 115 to 230 V a.c. on the input side, and delivers

24 V d.c. as output voltage with a maximum output power of 240 W.

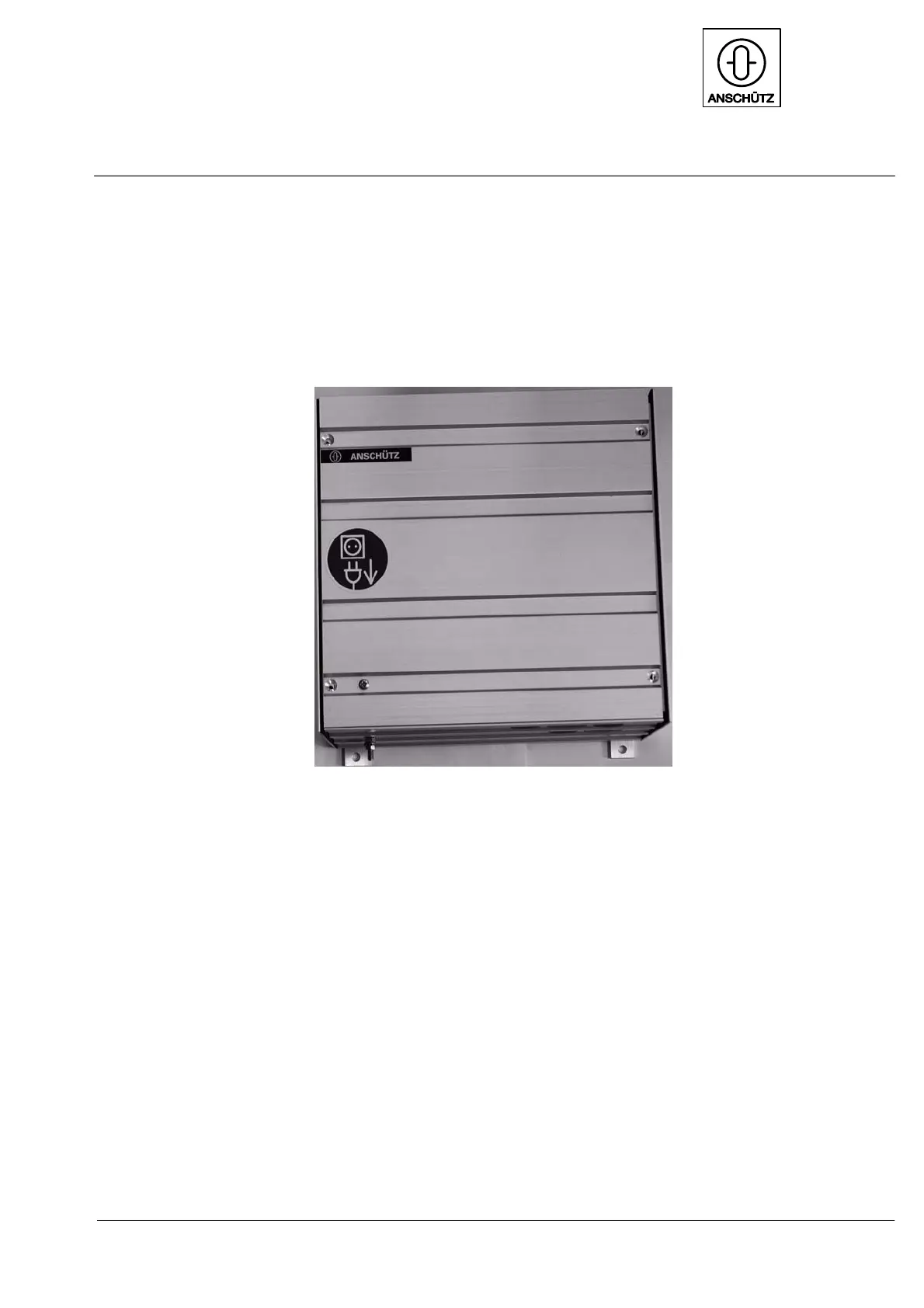

Figure 7 : AC/DC Converter 121--062
