Operator manual
Compass
STD 22
110--233
STD22 Compact and STD22
15
3646/110 --233.DOC010102
Edition: July 1, 2005
After removing the cover:
Do not touch live parts.
Neither the DIP switches nor the buttons are live.
A DIP switch (B37) and two push--buttons (B38 and B39) are used to adjust the
settings as follows:
-- Course and correction data
-- Settings for functional checks
-- System settings such as data formats or
transmission speeds.
Only authorised personnel are authorised to change system settings!!
Please observe the relevant instructions in the service manual.
Button B39
Button B38
B37 DIP switch
Display
Button B39
Button B38 B37 DIP switch
Display
E10

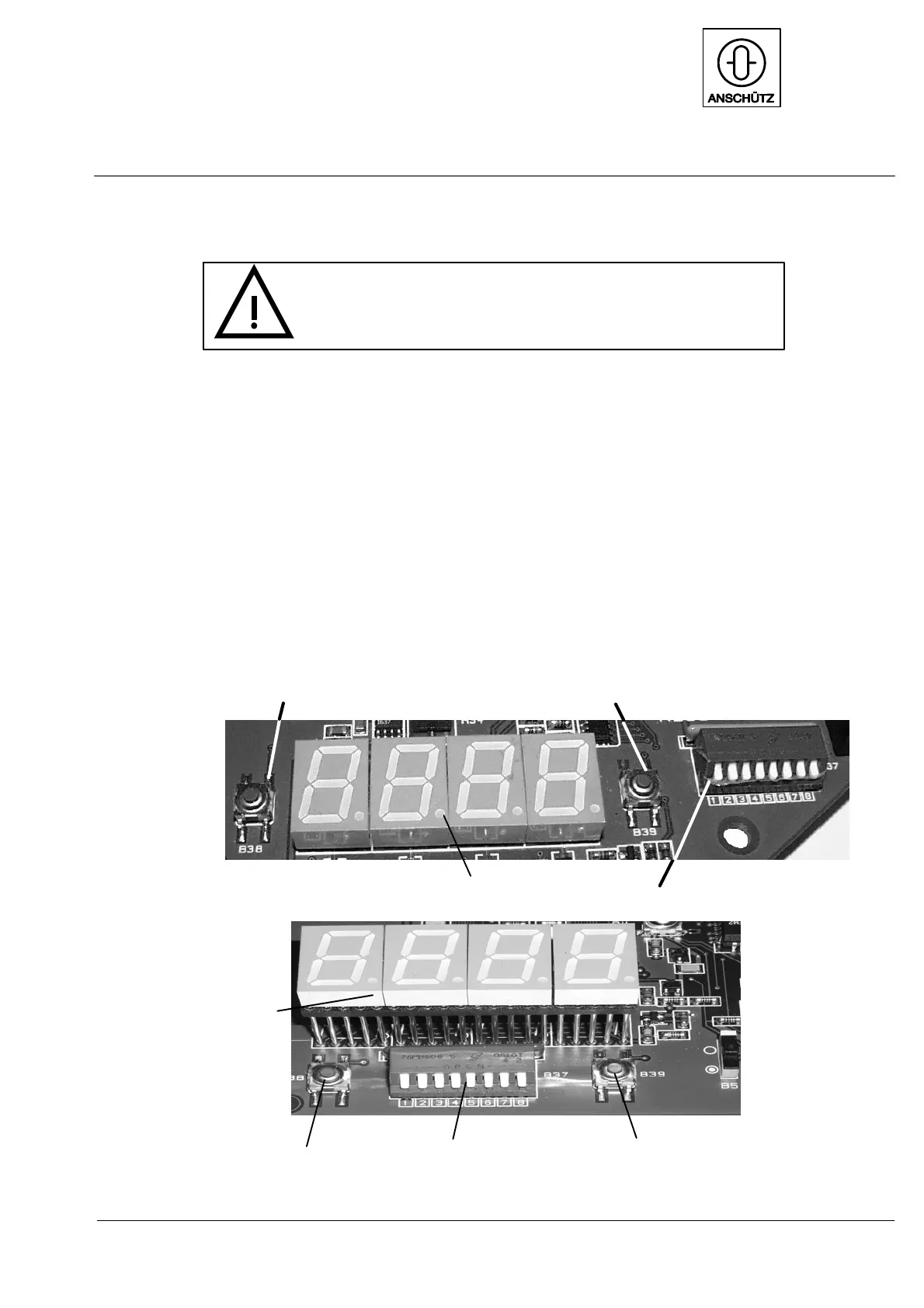

Figure 9 : Operating elements on the compass (after removing the cover)
