Operator manual

Compass

STD 22

110--233

STD22 Compact and STD22

3646/110 --233.DOC010102

Edition: May 20, 2005

flashing

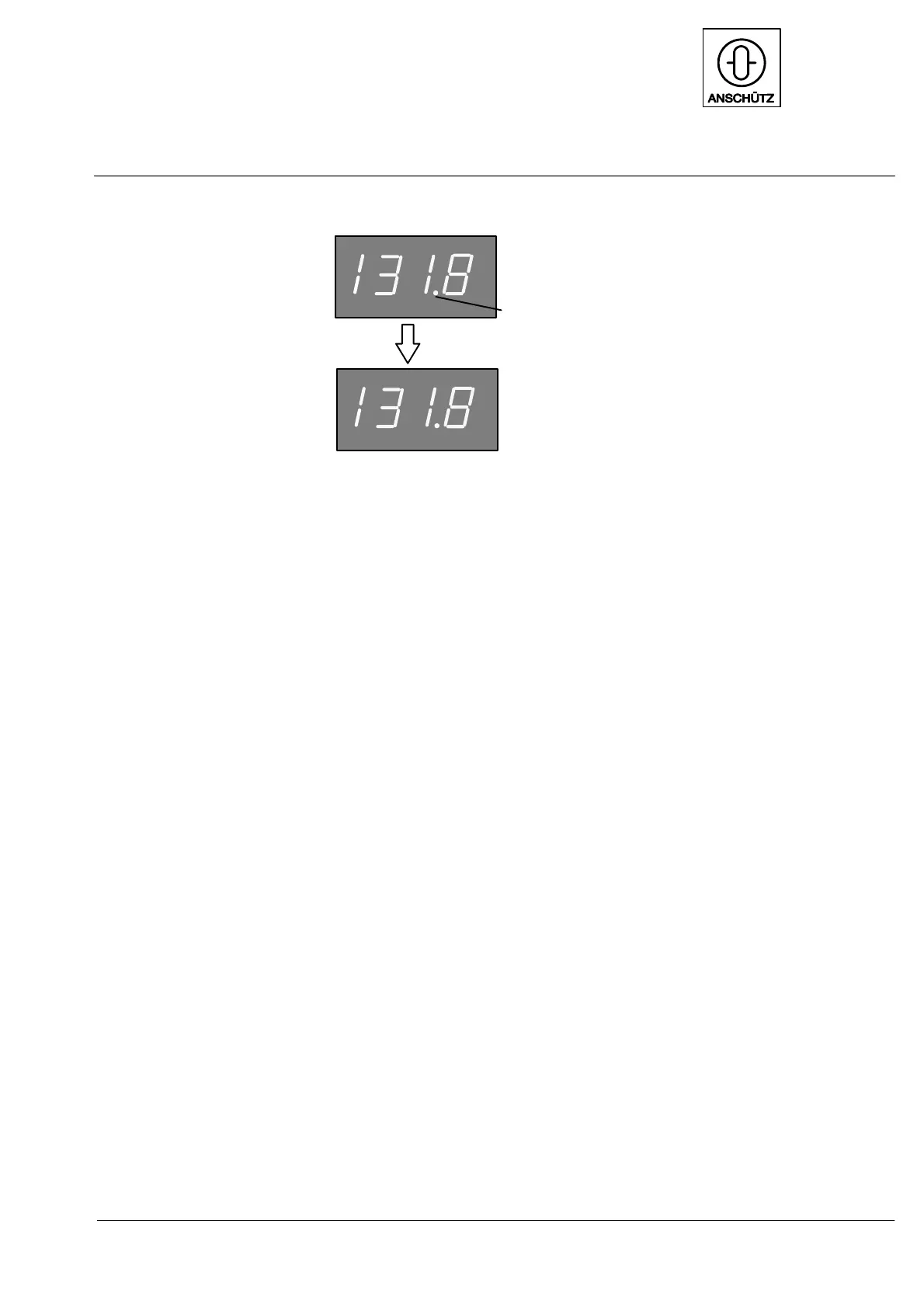

Figure 15 : Digital display for “Voltage cut-off”

If voltage cut-offs occur often, the following checks should be made:

-- check the on--board power supply

-- check the the on-board power supply ⇒ distribution unit ⇒ compass cable

connections

-- check the the on--board power supply ⇒ AC/DC converter ⇒ compass cable

connections
