BM115 achieves the auto focus by movement of collimation lens group and the focus adjustment
range & pulse rate are based on movement of collimation lens. When the collimation lens moves
1mm, it conducts the movement of focus point by 2.25mm or 4mm.
Optical configuration
Scale range
Auto focus range
CL100mm/FL150mm
-10 to +10mm
-22.5 to +22.5mm
CL100mm/FL200mm
-10 to +10mm
-40 to +40mm
Open the platform configuration tool to enter the reference value as shown in Figure 3.6 and
Figure 3.7. (Just for reference)

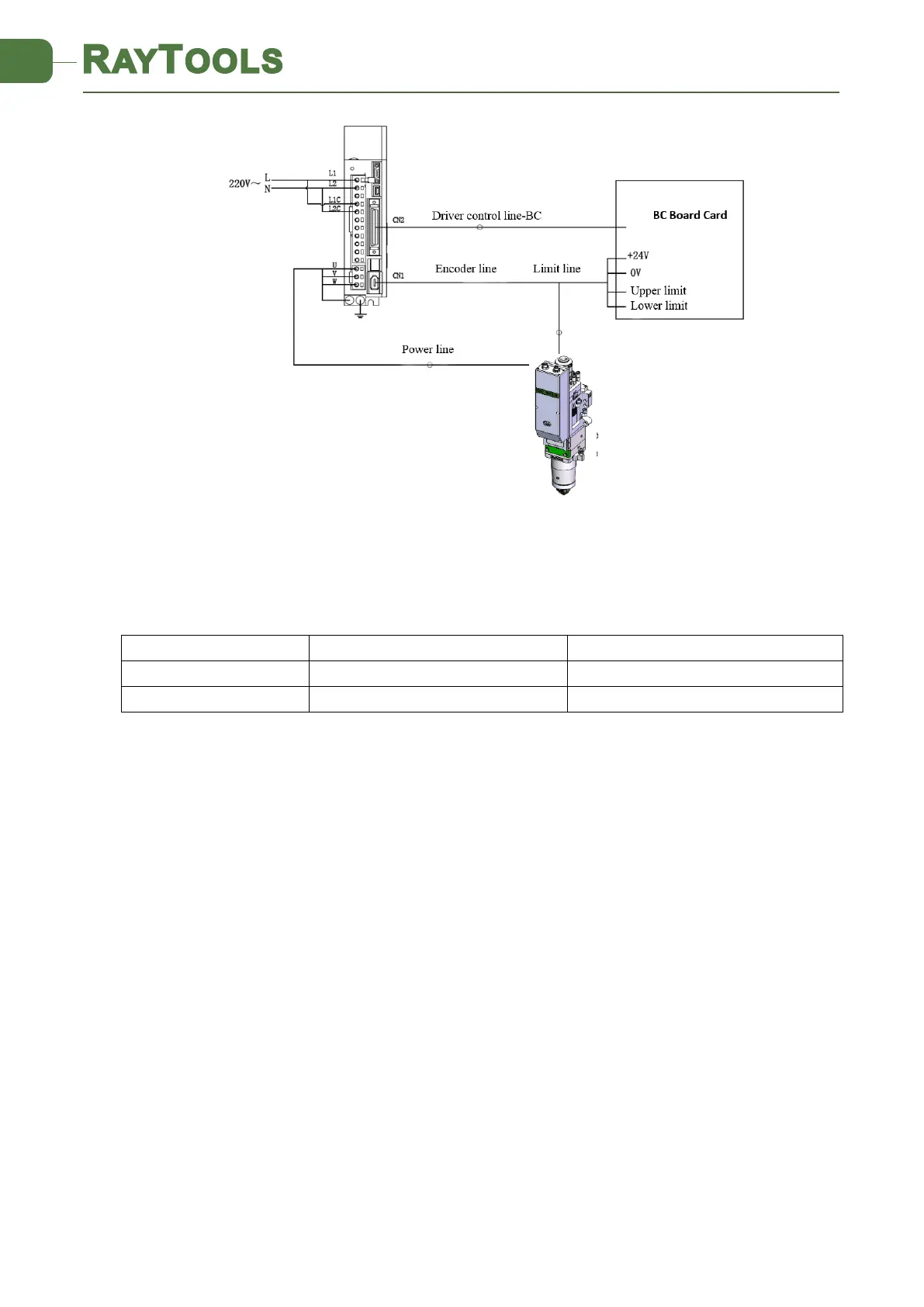

Figure3.5 — Position loop FSCUT wiring diagram
