BM115 SERIES 6-12KW Laser Cutting Head User Manual
Note: Limit sensor is NPN-NC and outputs 0V continuously when it is not triggered.
3.1.3 Dimension of ETC_F100

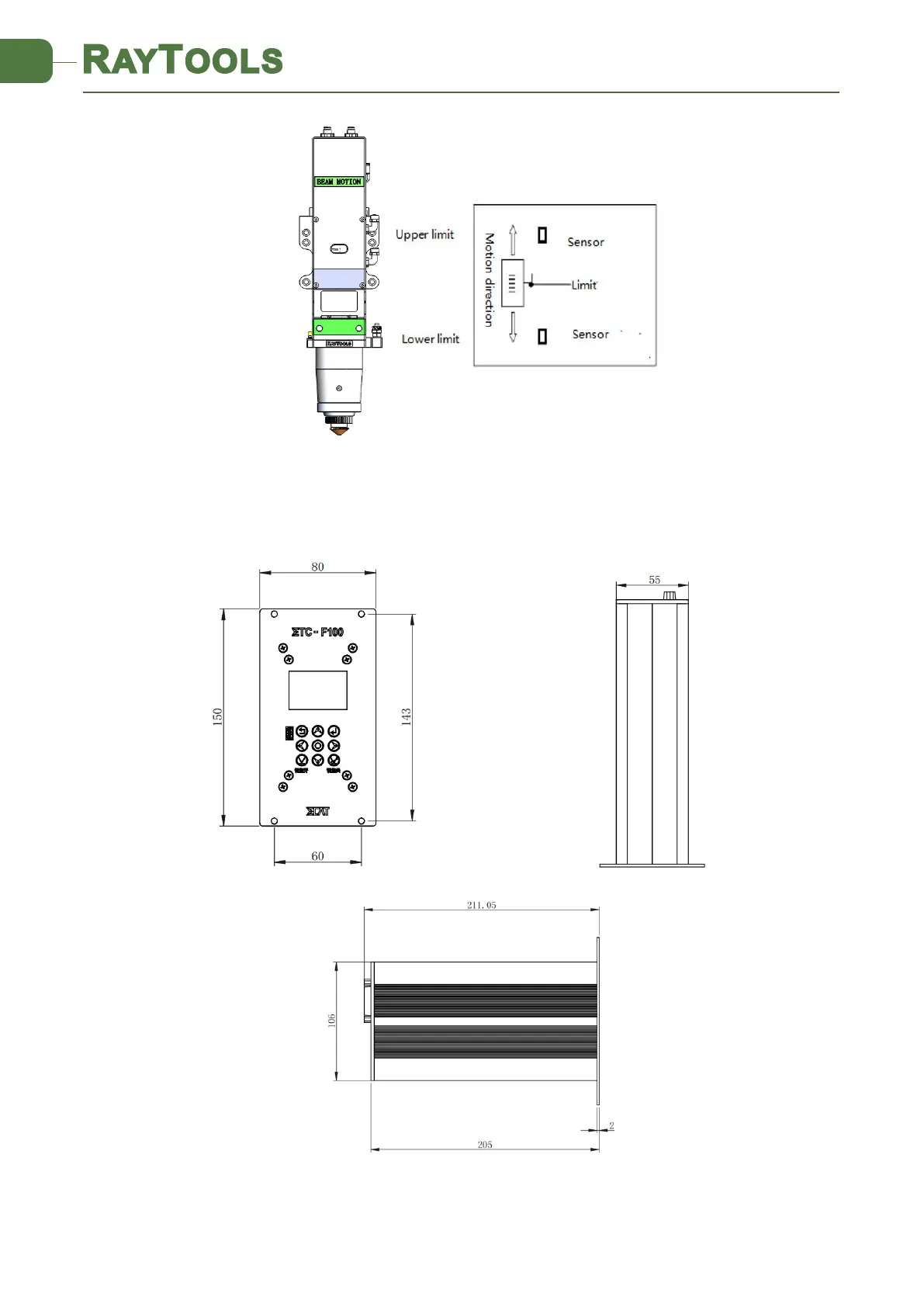

Figure 3.3 —Overall size of ETC-F100 controller (unit: mm)
Figure 3.2—limit diagram
