BM115 SERIES 6-12KW Laser Cutting Head User Manual
1 Summary
1.1 Structure
BM115 laser cutting head includes fiber interface, collimation module, focus & beam alignment
module, cover glass module and nozzle module which is shown in figure 1.1.
2 Mechanical Installation
2.1 Mounting
The mounting of BM115 to machine tool is shown in Figure 2.1. Customers are advised to
Install the laser head perpendicular to the bed surface as requested and make sure the laser
head is locked, which is one of the premises to ensure the stable cutting.
CAUTION: The Z-axis sliding base for fixing laser cutting head should be conductive to
machine tools and keep a good grounding.
Cable interface
Water inlet
Cutting gas
X-Y Adjustment
Nozzle cooling
Water outlet
Cover glass

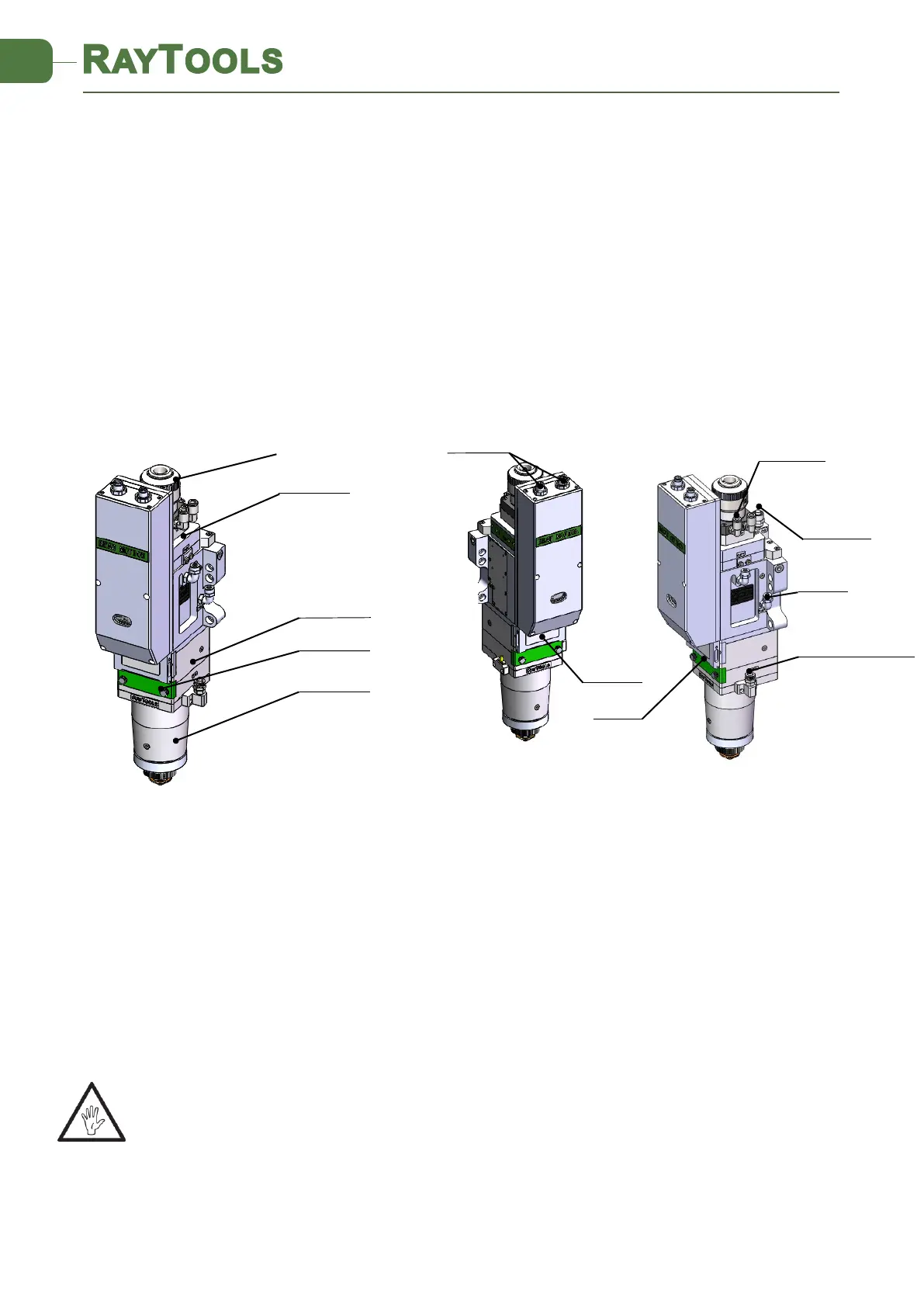

Figure 1.1 — Function module and interface
Collimation module
Beam alignment module
Cover glass module
Nozzle assembly
QBH
